position

This block is part of the zpl group and was last modified in core v10.4.28.

position zpl v10.4.28

In pins 2

x required
number
y required
number

Out pins 1

zpl
zpl

fo

Field origin

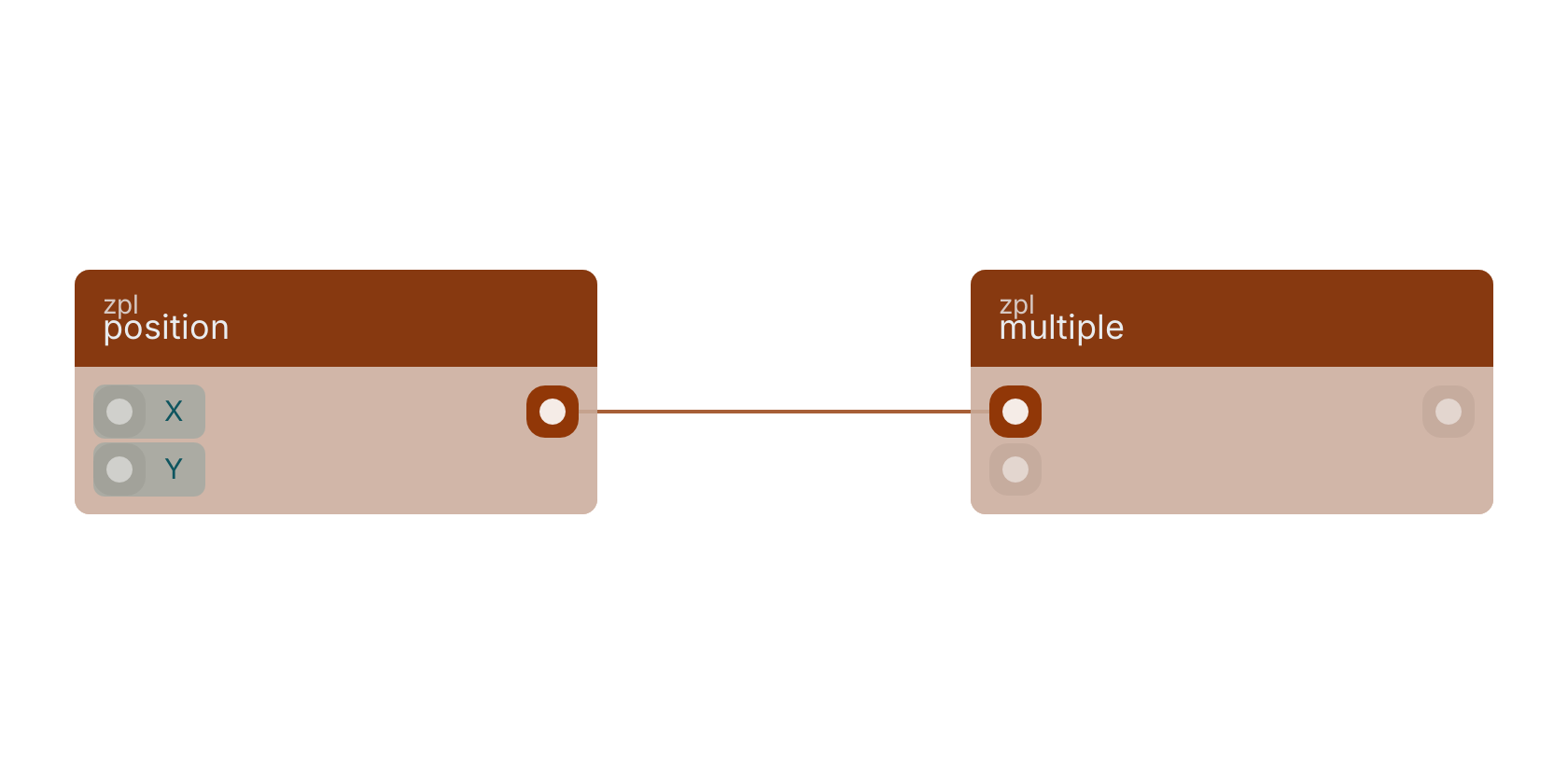

A typical wiring for position: the zpl out pin feeds multiple.

Studio canvas example for the position block: typical wiring for position.

Version history

Introduced in v10.4.28.
