This block is part of the zpl group and was last modified in core v10.4.28.

graphic box zpl v10.4.28

In pins 4

Width required
number
Height required
number
Thickness required
number
Color required
value
B = Black, W = White

Out pins 1

zpl
zpl

gb

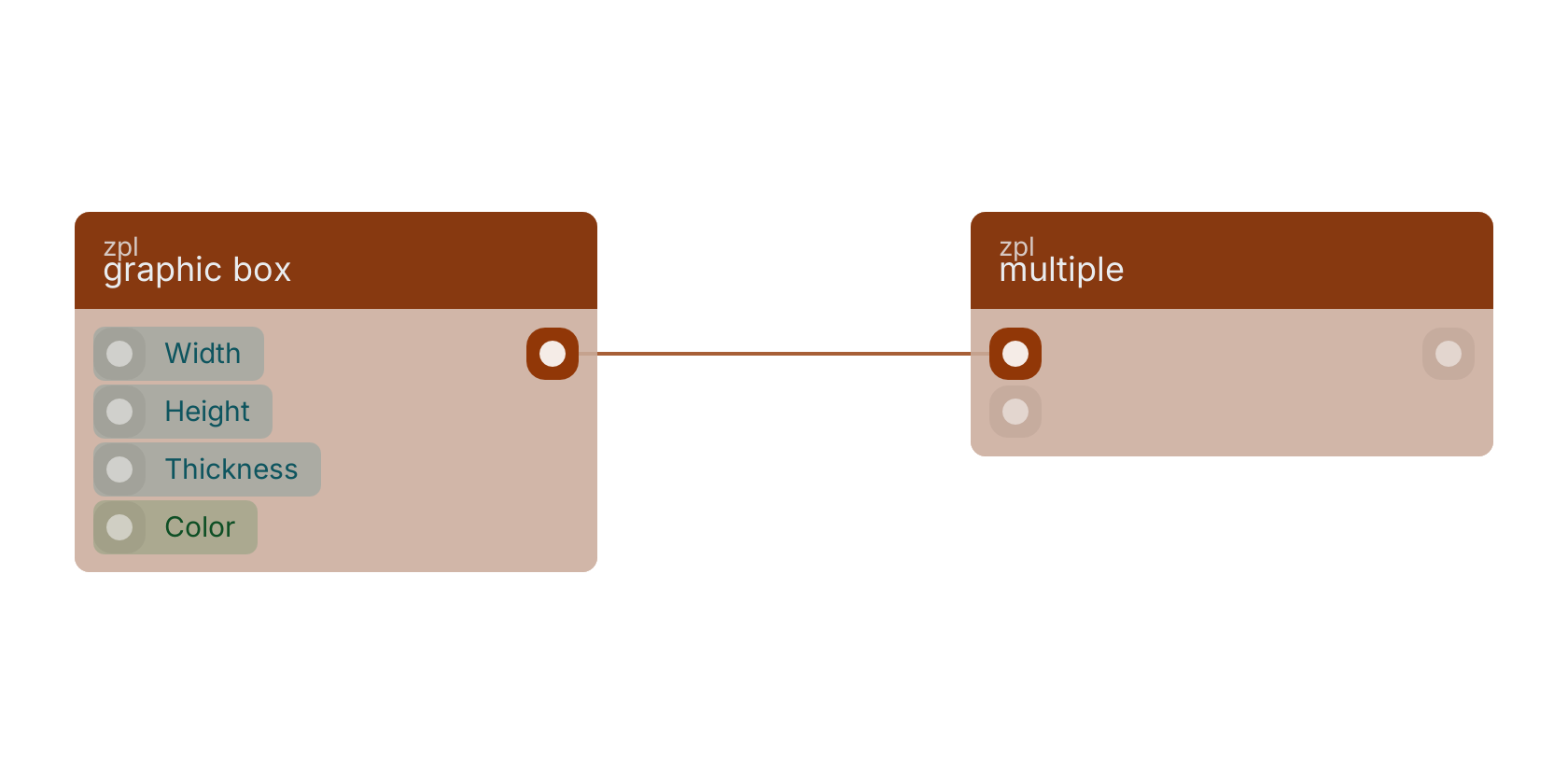

A typical wiring for graphic box: the zpl out pin feeds multiple.

Studio canvas example for the graphic box block: typical wiring for graphic box.

Version history

Introduced in v10.4.28.
