font

This block is part of the zpl group and was last modified in core v10.4.28.

font zpl v10.4.28

In pins 3

Font required
value
Font name. Valid values are 0, A, B, D, E, F, G, GS, H, P, Q, R, S, T, U, V.
Height required
number
Width required
number

Out pins 1

zpl
zpl

a

Set font

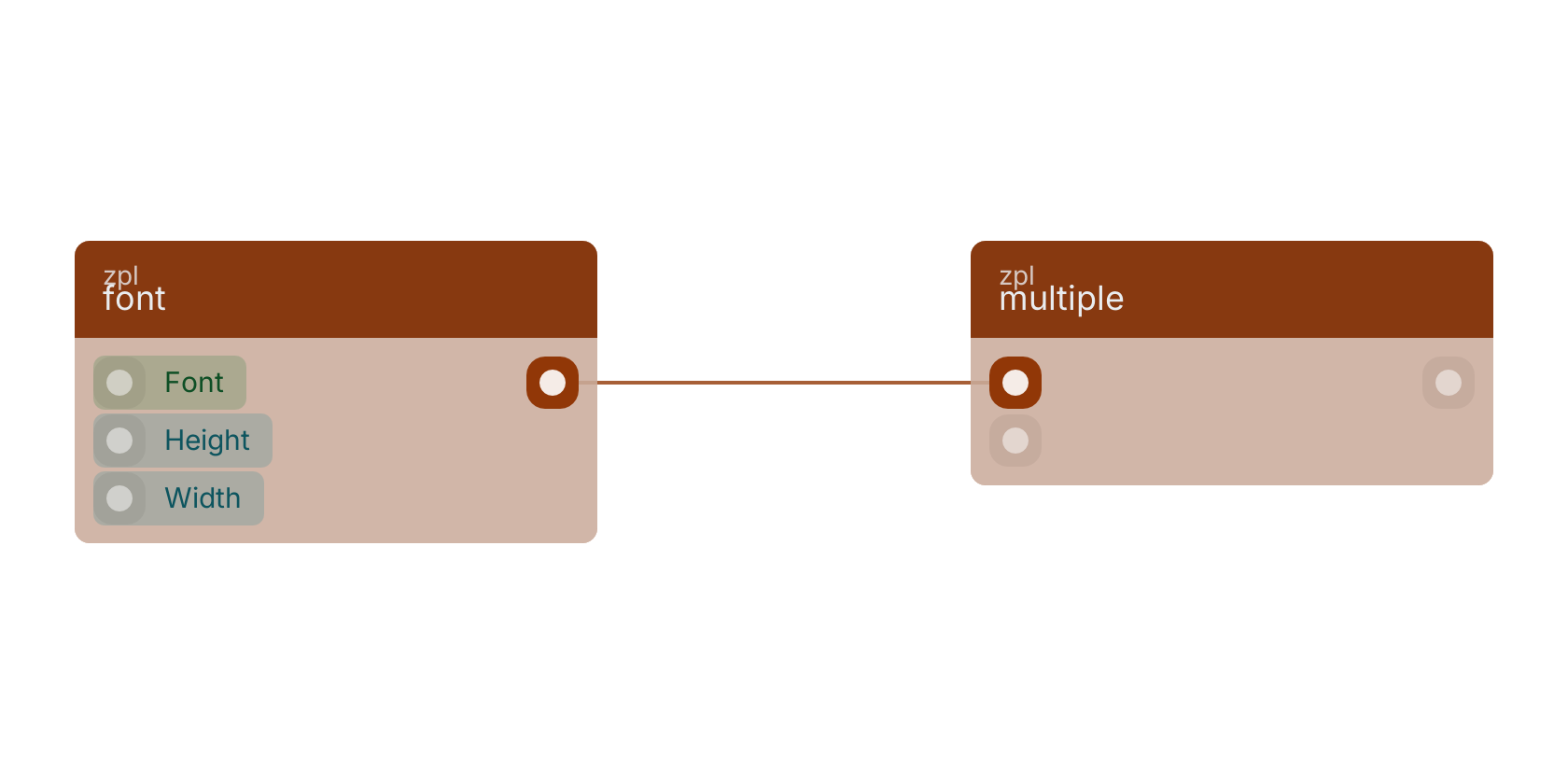

A typical wiring for font: the zpl out pin feeds multiple.

Studio canvas example for the font block: typical wiring for font.

Version history

Introduced in v10.4.28.
