merge by field

This block is part of the array group and was last modified in core v14.0.3.

merge by field array v14.0.3

will return the base array with the matches merged in, pairing base_array_key against merge_array_key. The base array items are modified in place.

In pins 7

base required
array
merge from required
array
base array field required
value
the field in the base array to match on
merge array field required
value
the field in the merge array to match on
merge match field required
value
the field to merge the matches in
merge as array
condition
should we merge the matches as array into the merge field
Default true
remove _meta from merged
condition
should we remove the _meta from each matching merge item
Default false

Out pins 1

array
array
result is the base array with the matches from the merge array

For each base_array item, collects the merge_from items whose merge_array_key value equals its base_array_key value (compared as strings) and writes them into the field named by merge_matches_key, MUTATING base items in place. With merge_all_matches true (default) that field is always an array, [] when none match; when false it holds only the FIRST match, null when none. Base items without the base key are left untouched; if any key pin is empty NO output is emitted.

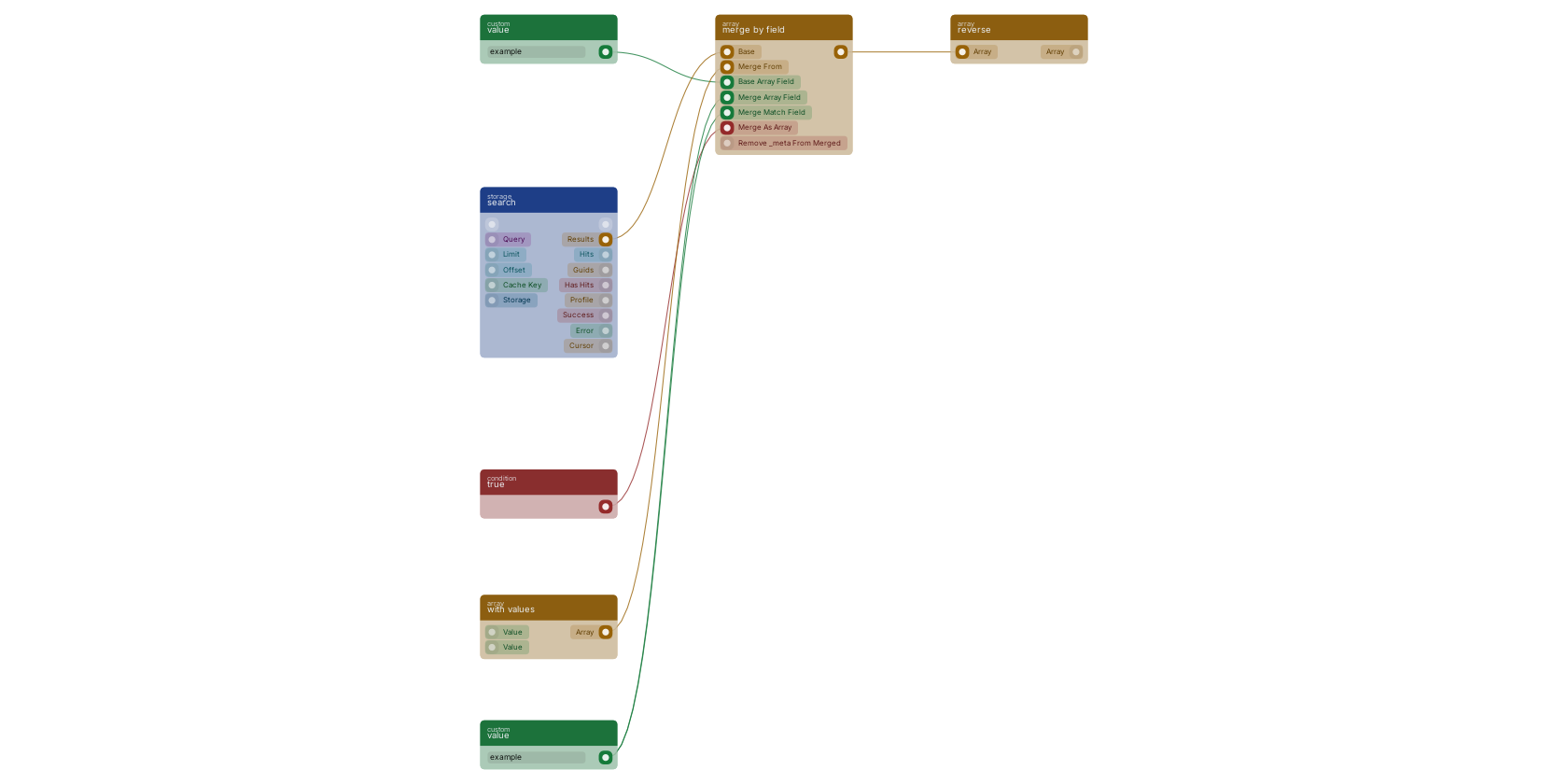

A typical wiring for merge by field: value feeds the base_array_key pin; search feeds the base_array pin; true feeds the merge_all_matches pin; with values feeds the merge_from pin; value feeds the merge_array_key pin; value feeds the merge_matches_key pin; the array out pin feeds reverse.

Commonly used with

In production blueprints, this block is most often wired together with:

value: feeds into this block. Simply returns the provided value.
search: feeds into this block. searches in the given storage based on a query.
reverse: this block feeds into it. Reverses the order of elements in the given array.
true: feeds into this block. Gives the condition true hard-coded.

Version history

Introduced in v14.0.3.
