This block is part of the storage group and was last modified in core v13.0.4.

Storage Selection Required

This block relies on a storage to perform its storage releated actions. You must manually select the storage you want to use in your flow using the storage selector modal. To access the modal, click the white button on the block.

search array v13.0.4

searches in the given storage based on a query.

In pins 5 + flow

flow
flow
Query required
query
choose the query you would like to run, keep them simple for speed. • Suggestions: query_bool_must query_bool_must_not query_bool_should
Limit
number
Default 5000
Offset
number
Cache Key v13.0.4
value
You can use this option to serve cached results for frequently used and resource-intensive searches. If the data doesn't change, repeated searches with the same cache key retrieve results from the same request cache. For time series use cases, such as logging, data in older data is rarely updated and can be served directly from this cache.
Storage
storage

Out pins 8 + flow

flow
flow
Results
array
Array of objects, each object is a single document. All results always include _meta.
hits
number
Number of documents found matching the given query.
guids v10.6.2
array
Has hits
condition
Profile
array
Analyzed profile of the query, this data is gathered only when the query includes the Profile action.
success
condition
error
value
cursor
array
Sort values of the last hit. Pass this to a search_after query block for cursor-based pagination.

Runs the merged query (all wired query* pins deep-merged, bool clauses concatenated) against the storage and outputs the matching documents on array, their GUIDs on guids, and has_hits=true when anything matched. hits is the RETURNED array length by default, not the total match count; the total is only reported when the query opts in via include_hits or profile. Default limit is 5000 when unwired. When the query returns aggregations, array holds a single object with the aggregation results instead of documents. Missing storage gives success=false with error MISSING_STORAGE; a failed search gives success=false, the error message, an empty array and hits=0.

database

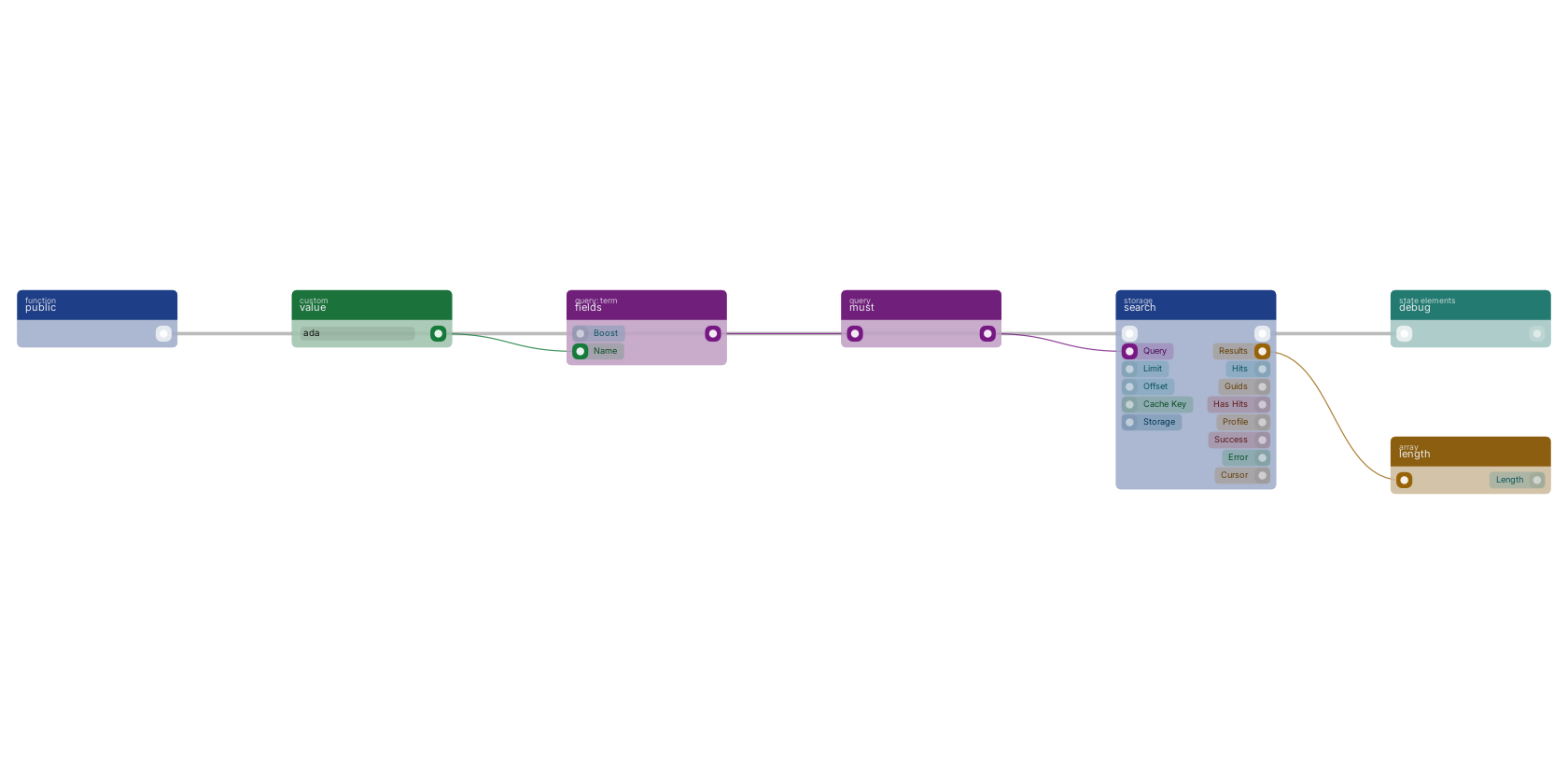

A function trigger starts the flow, a term query built with fields and must feeds the query pin, and search returns the matching documents. The results array is counted with length here; in API blueprints it typically goes straight to the reply.

Commonly used with

One of the most-used blocks across production blueprints. It is most often wired together with:

branch: wired in both directions with this block.
must: feeds into this block. All queries provided must match.
reply in JSON: this block feeds into it. Reply to any httpconnection as JSON body.
create: feeds into this block. Creates a new function that can be executed using the given name.
filter: feeds into this block. Build a custom query using higher-level bool query.
multiple: feeds into this block.

Used in these guides

These documentation pages use or explain this block:

Version history

Introduced in v13.0.4.

v10.6.2 This block or one of its pins was updated in v10.6.2, click here to see the release notes.
