min
This block is part of the array group and was last modified in core v10.4.28.
min v10.4.28 Returns the lowest number in the given array of numbers.
In pins 1
- Array required
arrayThe array of numbers for which to find the lowest number.
Out pins 1
- Number
numberThe lowest number in the given array of numbers.
Returns the lowest item after coercing to numbers; numeric strings and booleans coerce, and non-coercible items after the first are ignored. Outputs 0 when the array is empty, not an array, or its FIRST item is not numeric-coercible - indistinguishable from a real minimum of 0.
lowest |

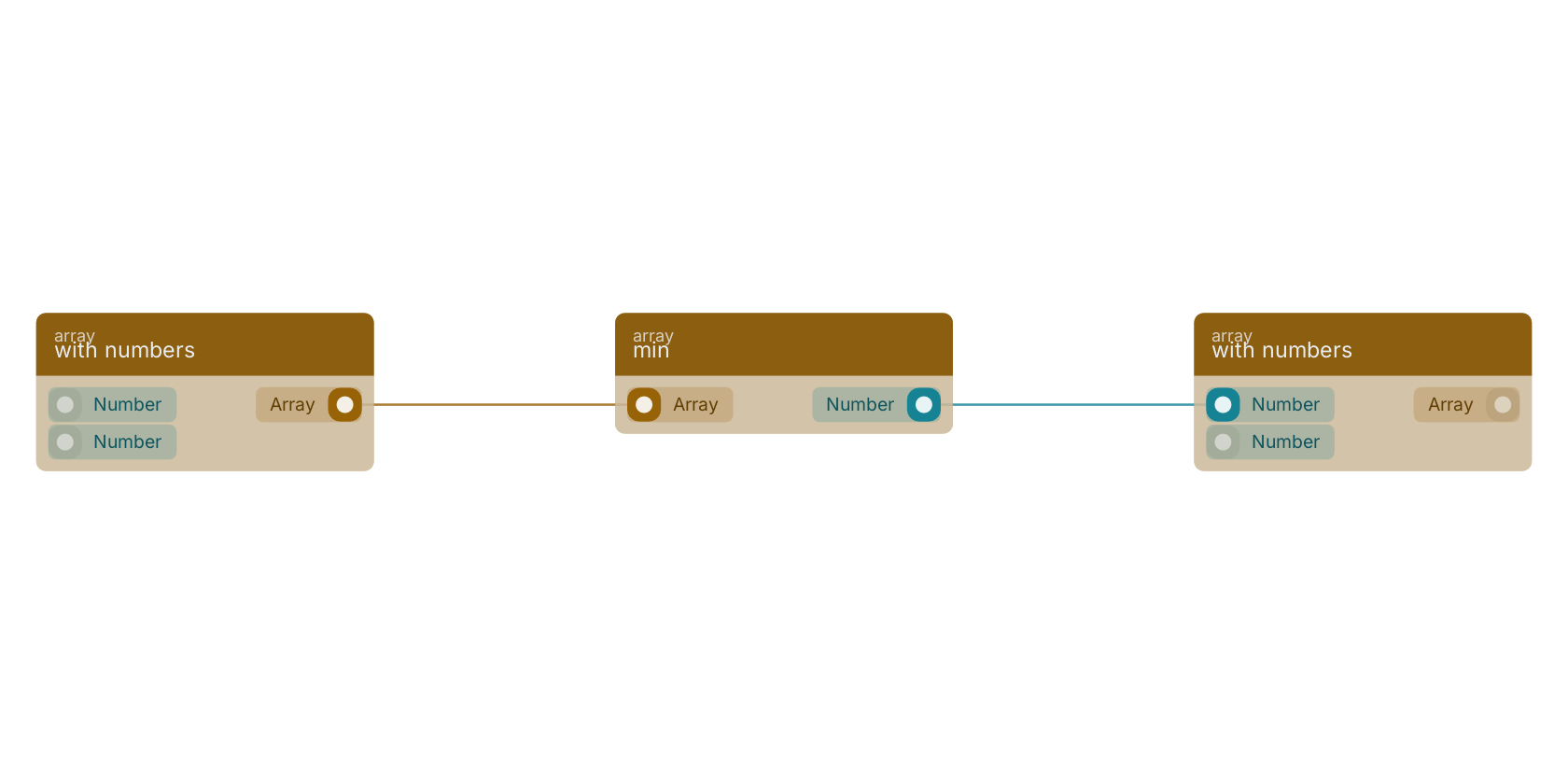

A typical wiring for min: with numbers feeds the array pin; the number out pin feeds with numbers.
Commonly used with
In production blueprints, this block is most often wired together with:
- with numbers: wired in both directions with this block. Returns an array of numbers.
Version history
Introduced in v10.4.28.
