flatten
This block is part of the array group and was last modified in core v10.6.1.
flatten v10.6.1 Accepts a nested array and returns a flattened array.
- array required
arrayInput pin for the nested array to be flattened.
- max depth required
numberOptional input pin to specify the maximum depth for flattening (optional). • Hidden when unused
- Array
arrayOutput pin for the flattened array.
Recursively flattens nested arrays into one flat array. A maxdepth greater than 0 flattens only that many levels, keeping deeper arrays intact as elements; 0 or unset flattens completely. Non-array input outputs null. Example: [[1,[2]],3] -> [1,2,3] fully, or [1,[2],3] with maxdepth 1.
nested |

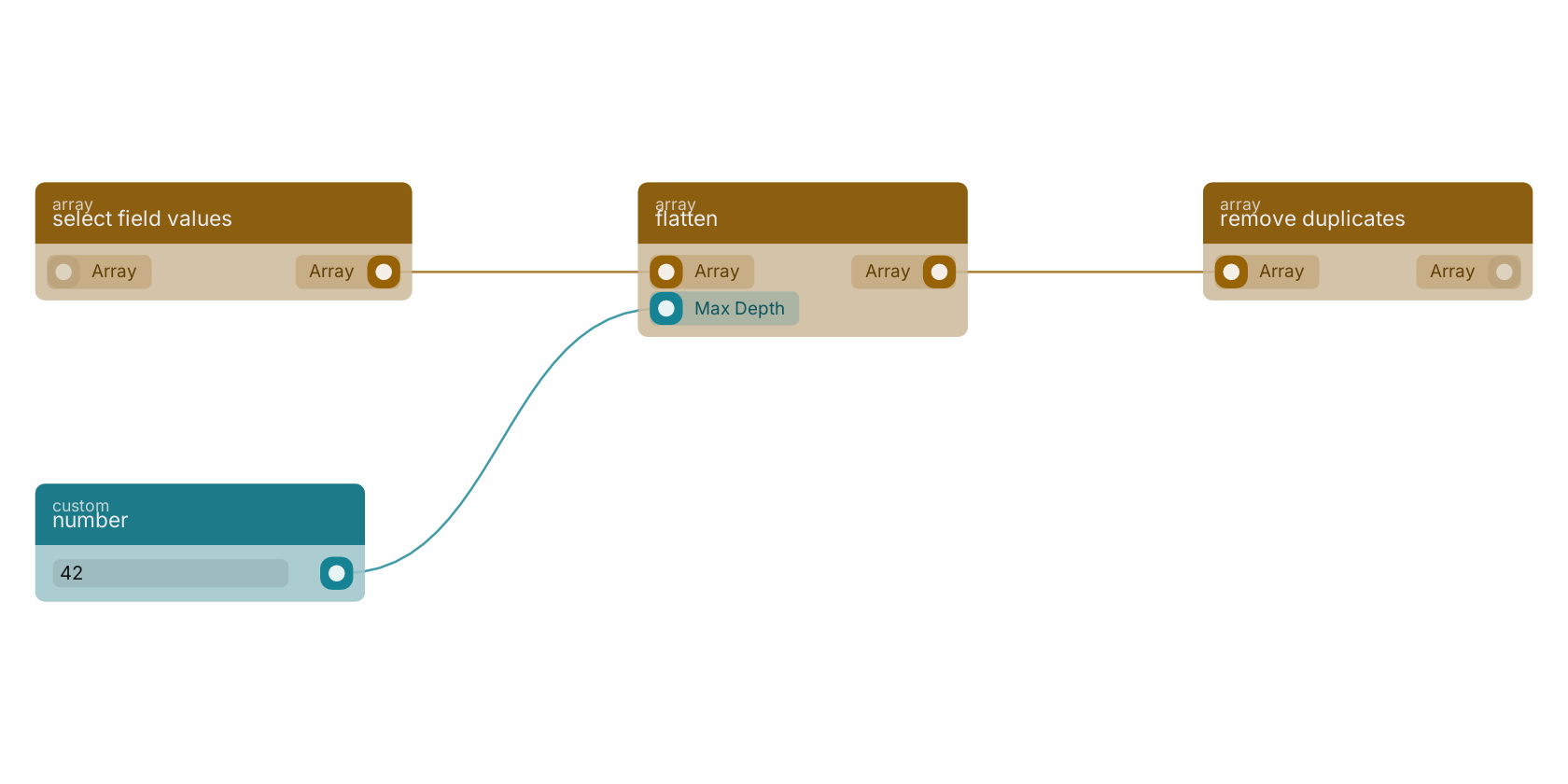

A typical wiring for flatten: select field values feeds the array pin; number feeds the maxdepth pin; the array out pin feeds remove duplicates.
Commonly used with
In production blueprints, this block is most often wired together with:
- select field values: feeds into this block. returns an array with values of the given field in this array of objects.
- remove duplicates: this block feeds into it. Removes duplicate values from an array.
- array includes: this block feeds into it. determines whether an array includes a certain value among its entries.
- exclude by value: this block feeds into it. Removes the items equal to the given value. Returns all items that do NOT match.
- find by key - value: this block feeds into it. Returns the matching objects for the given key value pair.
- map: this block feeds into it. Creates a new array with the results of the provided function on every element in the array.
Version history
Introduced in v10.6.1.
