point in radius
This block is part of the condition group and was last modified in core v10.4.28.
point in radius v10.4.28 Check to see if an given geo-point is in the circle.
- point required
geo_pointPoint that should be in center
- center point required
geo_pointCenter point of the radiu.
- Meters required
numberThe number of meters around the center GEO point in which to search for the GEO point
- boolean
conditionThis boolean is true if the given-geo point is in the circle.
True when the great-circle (haversine) distance in meters between the point and the center point is at most meters, inclusive. Reads geo_point/geo_center_point first, falling back to the deprecated object pins. A missing or malformed point resolves to lat/lon 0,0 instead of failing, so an unwired point silently compares from coordinates 0,0; a missing meters counts as 0.

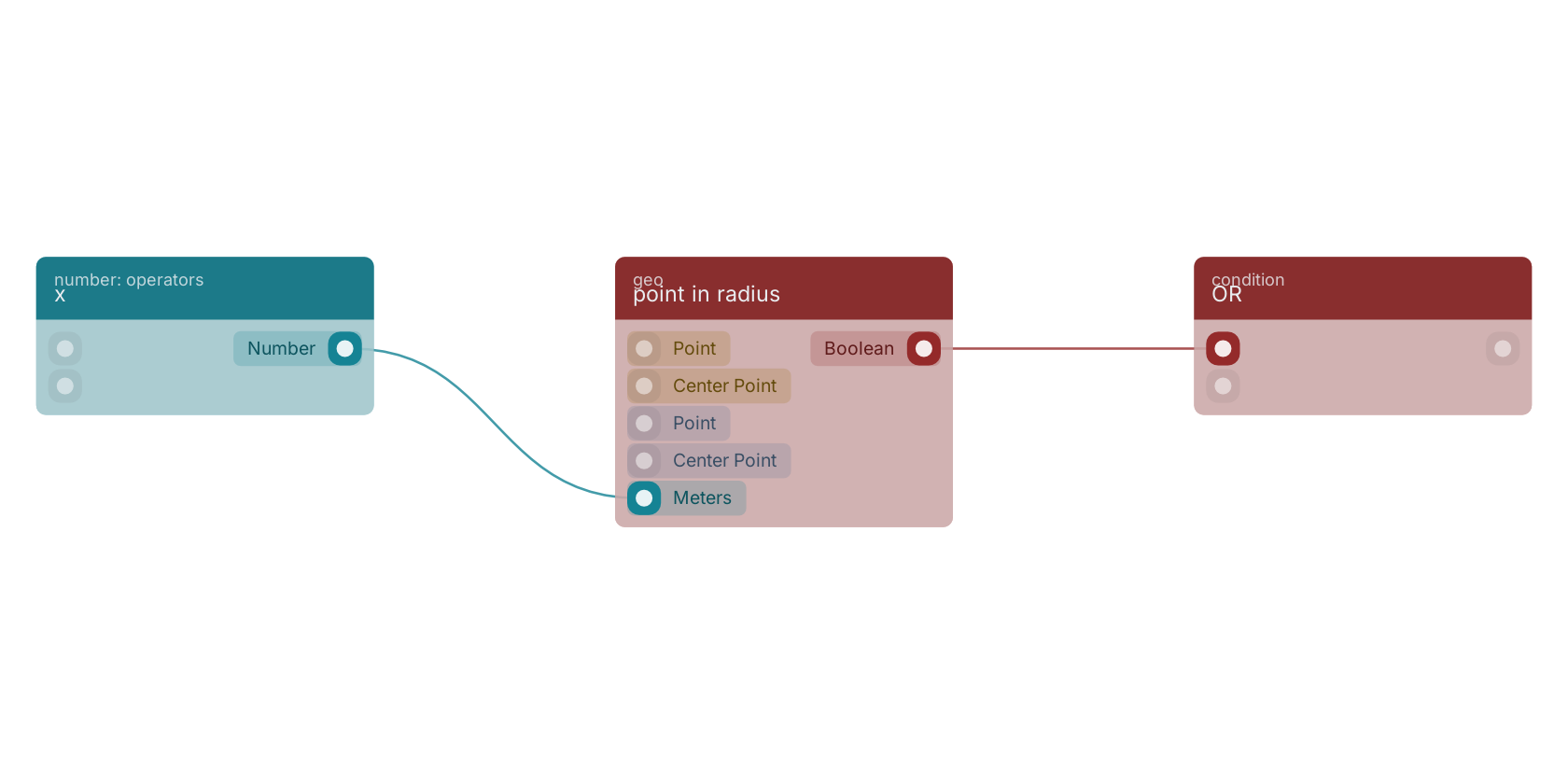

A typical wiring for point in radius: x feeds the meters pin; the condition out pin feeds OR.
Commonly used with
In production blueprints, this block is most often wired together with:
- get fields: feeds into this block. Gets the selected fields from the given object.
- OR: this block feeds into it. operator for a set of operands is true if and only if one or more of its operands is true.
- x: feeds into this block. Multiplication operator produces the product of the operands.
Version history
Introduced in v10.4.28.
