or
This block is part of the condition group and was last modified in core v10.4.28.
or v10.4.28 operator for a set of operands is true if and only if one or more of its operands is true
In pins 2
- condition_1 required
condition - condition_2 required
condition
Out pins 1
- condition
condition
True when at least one connected input pin is exactly boolean true; false otherwise. No truthiness coercion: 1, "true", or non-empty values do NOT count, and unconnected or nil pins count as not-true. Accepts any number of condition pins.

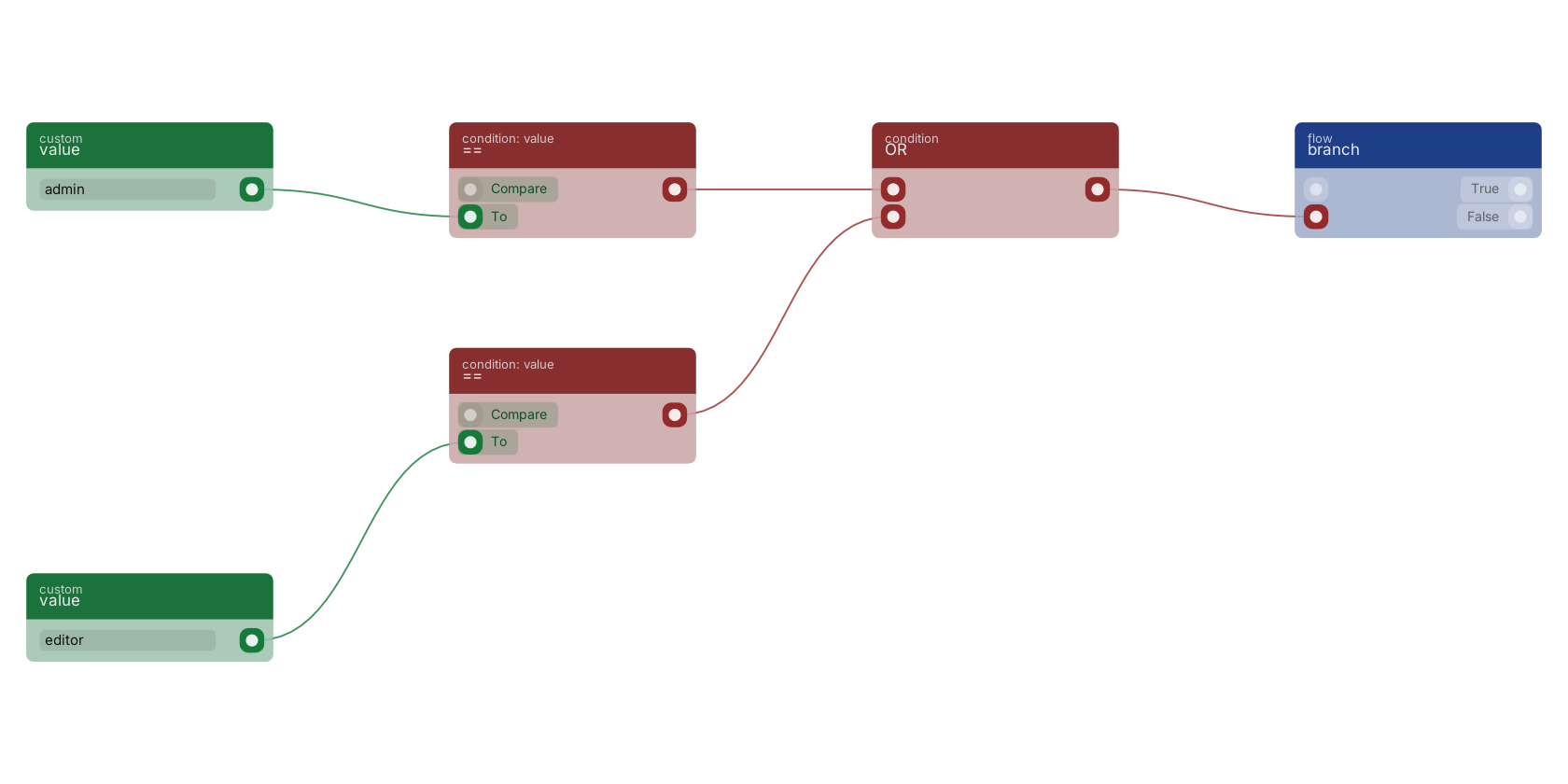

Two == comparisons, one per accepted role, feed one OR block. The OR out pin is true as soon as either comparison matches, and it drives the condition pin of a branch. This is the standard pattern for "any of these values is allowed" logic.
Commonly used with
In production blueprints, this block is most often wired together with:
- ==: feeds into this block. returns true if the two values are equal.
- branch: this block feeds into it.
- AND: wired in both directions with this block. operator for a set of boolean operands will be true if and only if all the operands are true.
- array includes: feeds into this block. determines whether an array includes a certain value among its entries.
- execute: feeds into this block. Executes the given funcion and waits for it to be executed.
- get fields: feeds into this block. Gets the selected fields from the given object.
Version history
Introduced in v10.4.28.
