switch

This block is part of the flow group and was last modified in core v10.4.28.

switch condition v10.4.28

In pins 1 + flow

flow
flow
expression required
value

Out pins 1 + flow

default
flow
match
condition
Returns true in case a match was found.

Routes the flow by comparing the expression pin, lowercased, against this block's configured case values (case-insensitive string compare): only the flow pin of the FIRST matching case runs, and default runs when no case matches. The matched condition pin outputs whether any case matched. The block itself executes as a no-op : all routing happens during flow traversal.

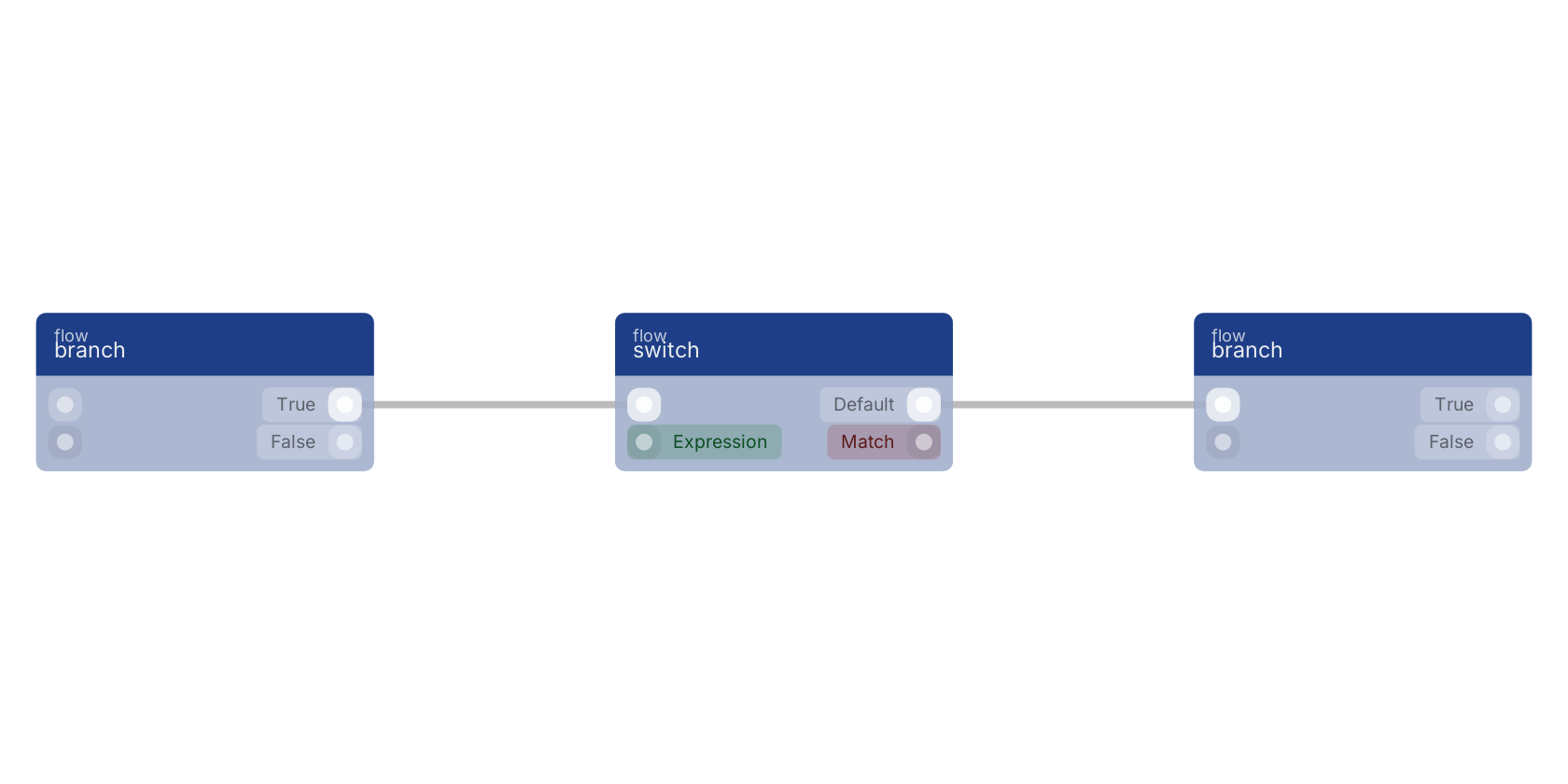

A typical wiring for switch: branch feeds the flow pin; the default out pin feeds branch.

Commonly used with

In production blueprints, this block is most often wired together with:

branch: wired in both directions with this block.
get fields: feeds into this block. Gets the selected fields from the given object.

Version history

Introduced in v10.4.28.
