get bearing between points

This block is part of the number group and was last modified in core v10.4.28.

get bearing between points number v10.4.28

Returns the initial bearing to travel along a geodesic between two points, using Vincenty inverse solution.

In pins 2

from required
geo_point
Start geo point
to required
geo_point
Destination geo point

Out pins 1

bearing
number

Outputs the rhumb line (constant) bearing from geo_point_from to geo_point_to in degrees, normalized to 0-360. Missing or non-numeric lat/lon fields count as 0 instead of failing. Example: from {lat:0,lon:0} to {lat:1,lon:0} -> 0 (due north).

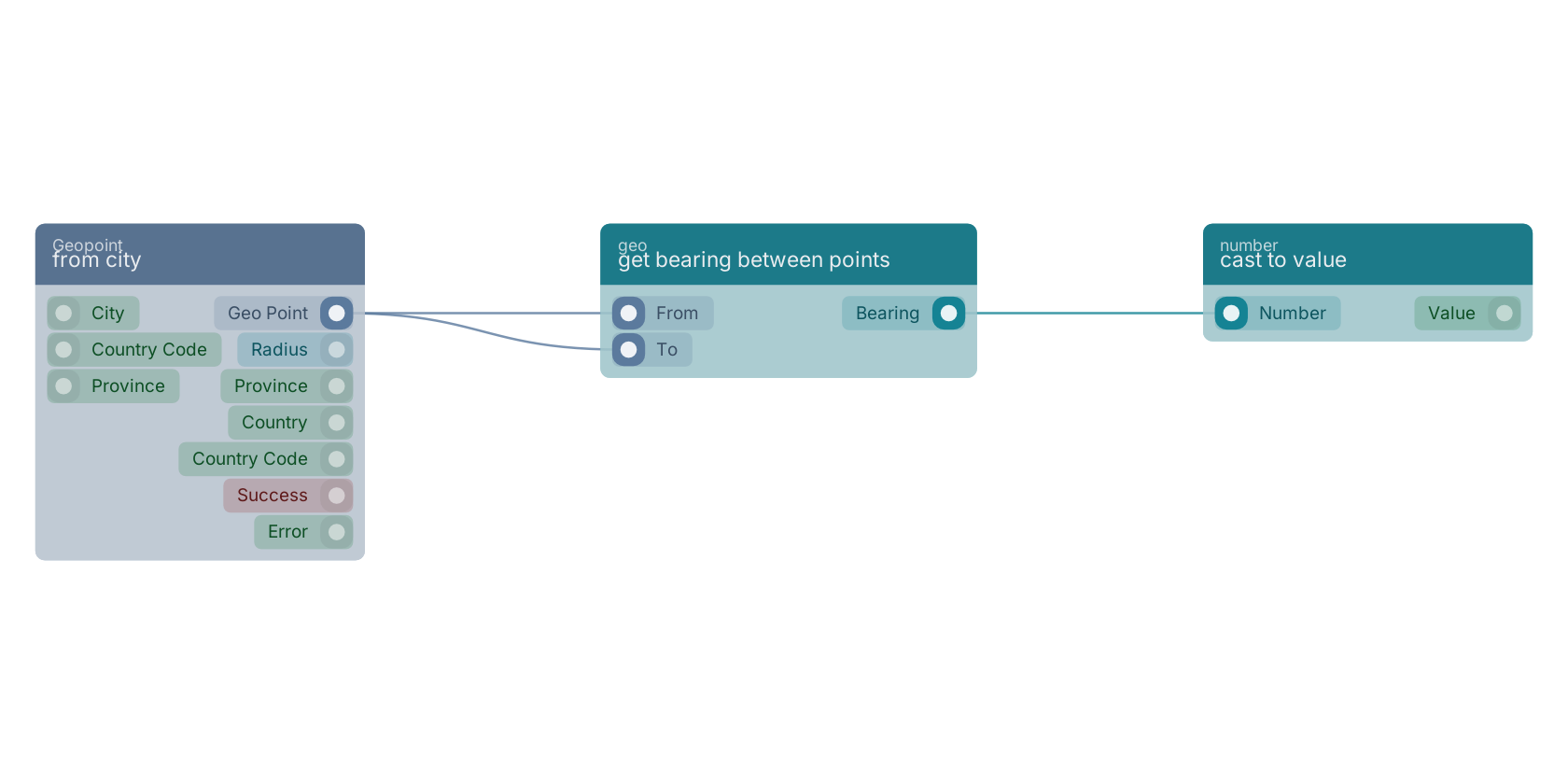

A typical wiring for get bearing between points: from city feeds the geo_point_from pin; from city feeds the geo_point_to pin; the bearing out pin feeds cast to value.

Version history

Introduced in v10.4.28.
