oki file printer

This block is part of the printer group and was last modified in core v14.0.1.

oki file printer number v10.5.10 Updated v14.0.1

Sends print file to a local OKI printer for processing

In pins 4 + flow

flow
flow
Printer IP required
value
This could be a local OKI Printer IP if you are running Blueprinting locally, otherwise this needs to be an outside accessible OKI Printer IP.
file required
file
Tray required
value
copies
number

Out pins 1 + flow

flow
flow
status
number

POSTs each given file as a multipart form to http://{printer_ip}/printer/print.cgi (the OKI web-print interface) with the tray (default TRAY1) and copies (default 1), mimicking a browser upload. status outputs the HTTP status of the LAST file processed; every failure : empty printer IP, no files, unreadable file, a host refused by the SSRF guard, or a request error : leaves status nil. There is no success or error pin: a nil status is the only failure signal.

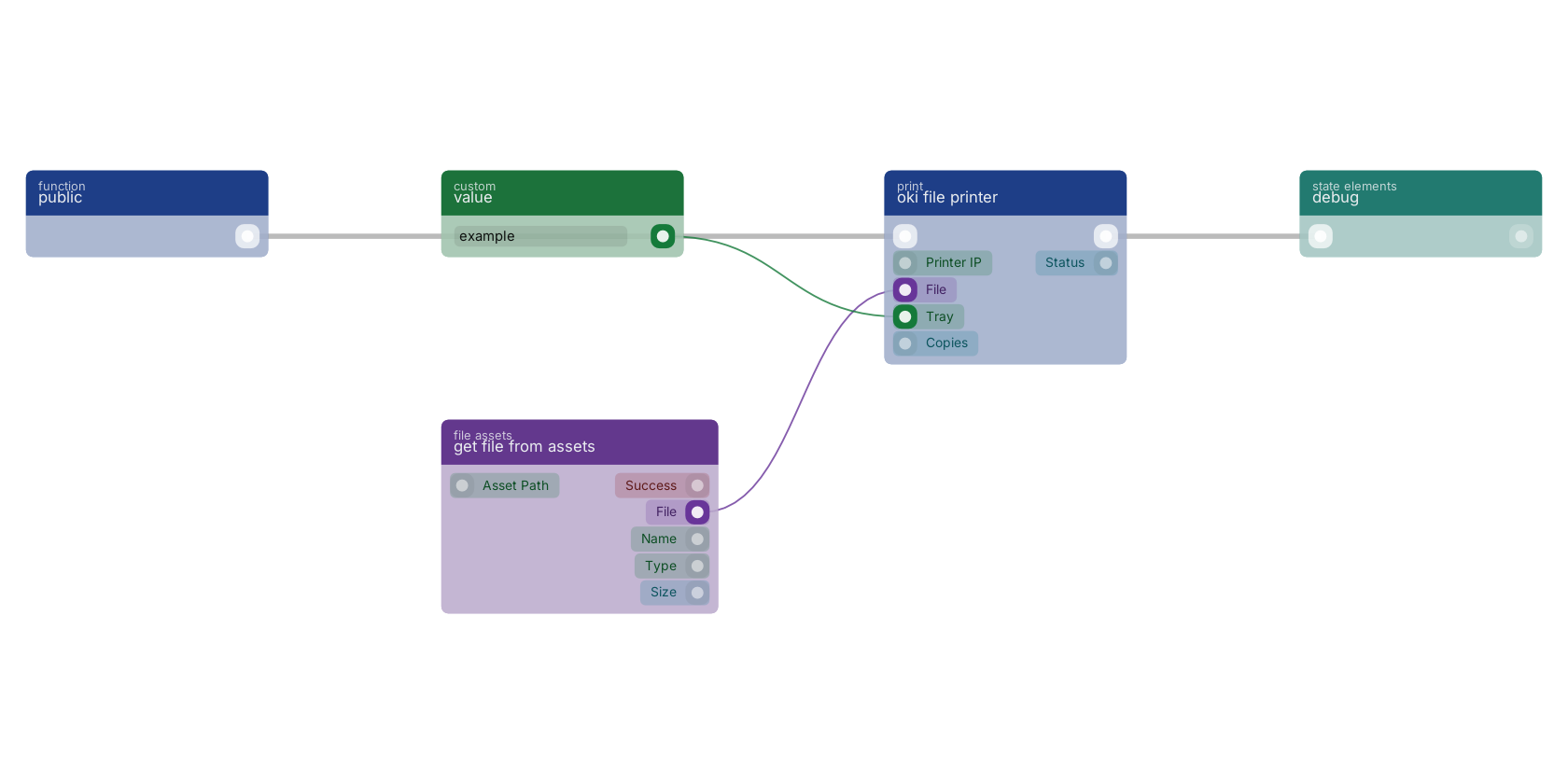

A typical wiring for oki file printer: a function trigger starts the flow; get file from assets feeds the file pin; value feeds the tray pin; the flow out pin feeds debug.

Version history

Introduced in v10.5.10.

Last modified in v14.0.1.
