open connection
This block is part of the printer group and was last modified in core v10.4.28.
open connection v10.4.28 In pins 2 + flow
- flow
flow - host required
valueThe ip address of the printer
- timeout
numberThe action will try to reach the printer within the given seconds. If that is not possible the request will be canceled.
Out pins 4 + flow
- flow
flow - connection
ippconnection - printer
object - success
condition - error
value
printer |

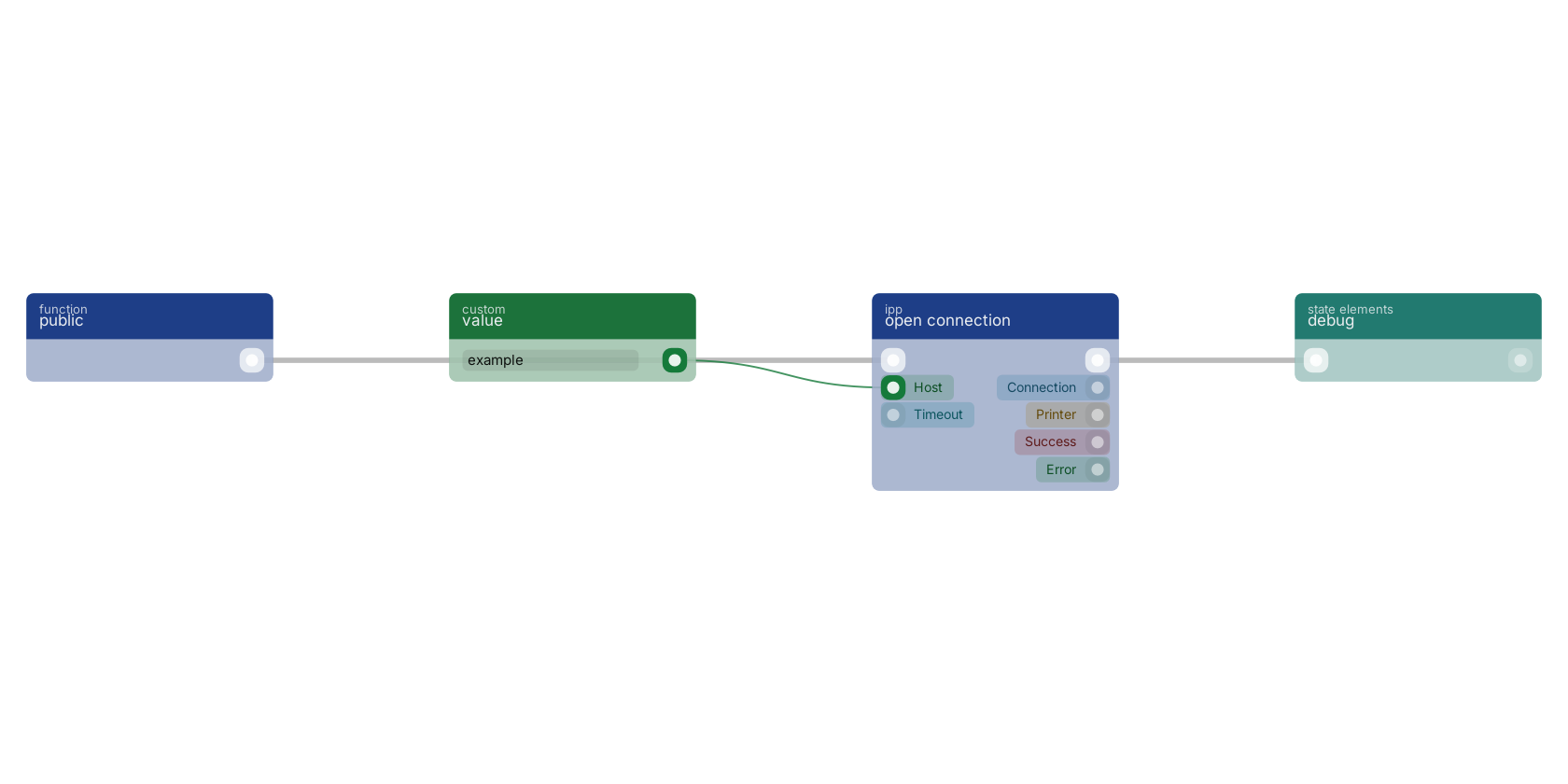

A typical wiring for open connection: a function trigger starts the flow; value feeds the host pin; the flow out pin feeds debug.
Version history
Introduced in v10.4.28.
