push array

This block is part of the redis group and was last modified in core v13.0.7.

Redis Key Selection Required

This block relies on a Redis key to perform its redis releated actions. You must manually select the Redis key you want to use in the flow in the blueprint using the Redis key selector modal. To access the modal, click the white button on the block.

push array v13.0.7

prepend multiple elements to a list

In pins 1 + flow
  • flow
    flow
  • elements required
    array

    the element to push.

Out pins 4 + flow
  • flow
    flow
  • success
    condition
  • error
    value
  • length
    number
  • key v13.0.7
    value
redis lpush
lpush

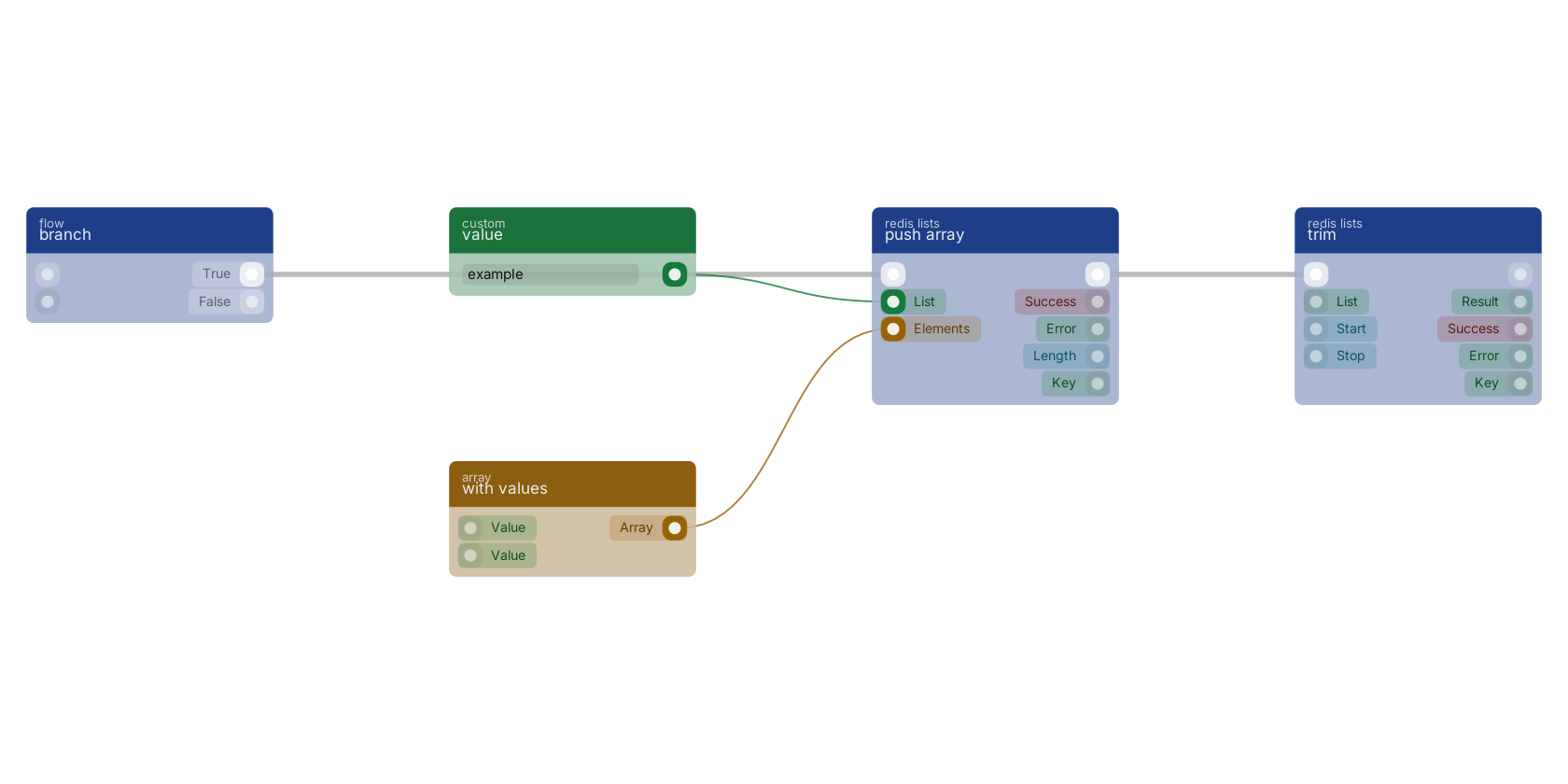

A typical wiring for push array: branch feeds the flow pin; value feeds the list pin; with values feeds the elements pin; the flow out pin feeds trim.

Studio canvas example for the push array block: typical wiring for push array.

Commonly used with

In production blueprints, this block is most often wired together with:

  • get fields: feeds into this block. Gets the selected fields from the given object.
  • branch: feeds into this block.
  • trim: this block feeds into it. trim a list to the specified range.

Version history

Introduced in v13.0.7.

Service documentation

External API reference This block wraps a third-party service. Click here for the service's own documentation of the underlying endpoint.
