soap function streaming

This block is part of the soap connection group and was last modified in core v14.0.1.

soap function streaming soapconnection v13.0.1 Updated v14.0.1

Streams the output of the given function using the original WSDL

In pins 5

connection required
soapconnection
name required
value
request required
object
options required v14.0.2
object
Allows setting basic request options like timeout (ms)
array name required v15.0.0
value
Dot-path to the array in the response to stream, e.g. SupplyTradeLineItem

Out pins 3

connection
soapconnection
error
value
Each result
execute_function

Calls the SOAP function, extracts the array named by array_name from the response, and runs the wired function once per element with pins index and result (also passed as item, the key the Node core uses). A response carrying a single element is streamed as one item. Iterations run up to 10 at a time and each one's shared state is merged back into the run. error is COULD_NOT_FIND_FUNCTION when nothing is wired to the function pin, NO_CONNECTION without a connection, or the SOAP fault or transport error otherwise.

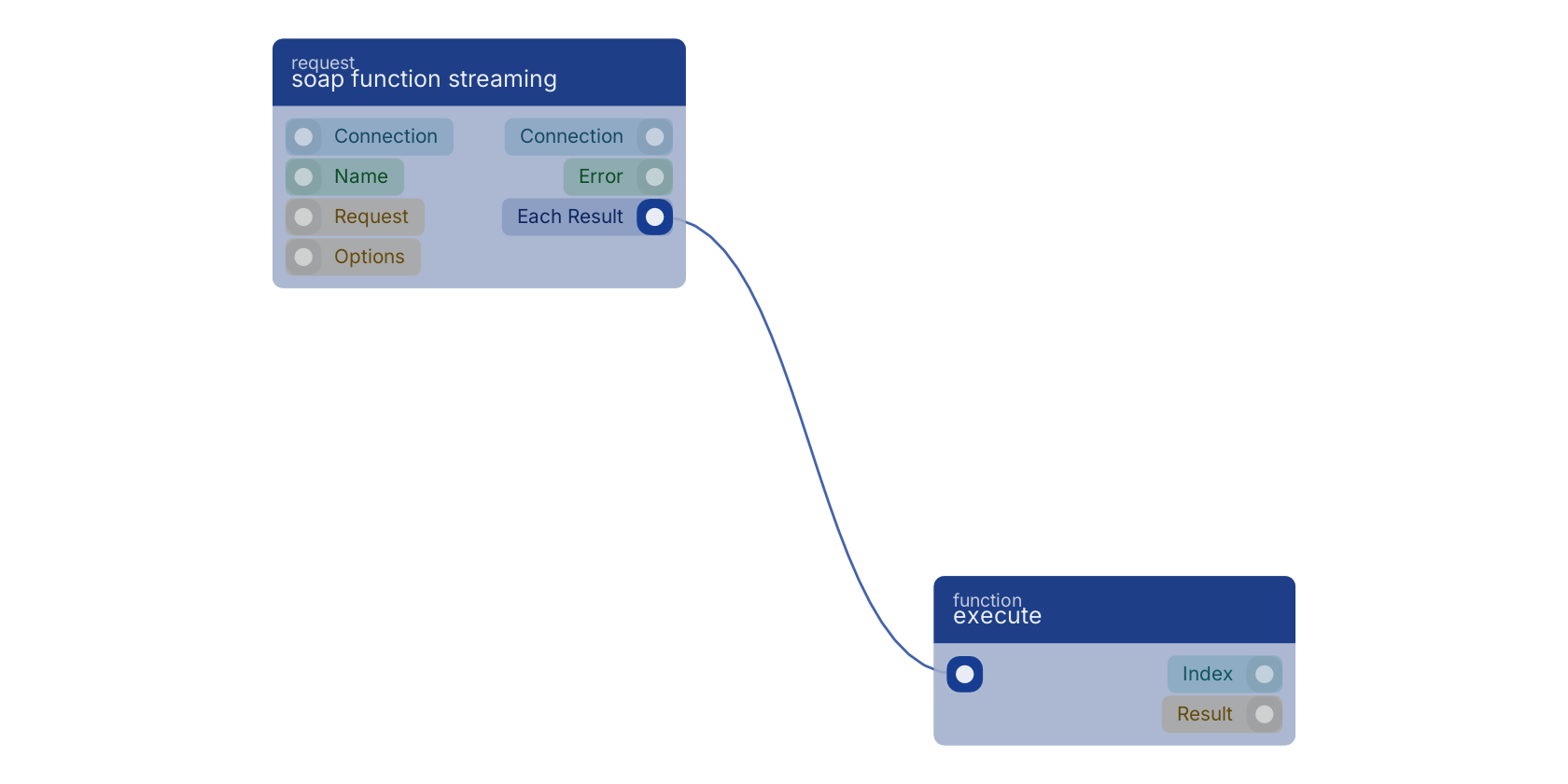

A typical wiring for soap function streaming: the function out pin wires to an execute block.

Version history

Introduced in v13.0.1.

Last modified in v14.0.1.

v15.0.0 This block or one of its pins was updated in v15.0.0, click here to see the release notes. v14.0.2 This block or one of its pins was updated in v14.0.2, click here to see the release notes.
