Blocks Deprecated

Deprecated: use the web blocks for new pages This block belongs to state pages and UI components. Existing pages keep running, but new pages should use the web blocks. See Web Pages and the migration guide.

if

This block is part of the state ui group and was last modified in core v10.4.28.

if state v10.4.28

Allows you to use different state UIs based on your given condition.

In pins 3

on true state required
UI shown when condition is true
on false state required
UI shown when condition is false
boolean condition required

Out pins 1

UI state
Returns the element to the frontend state.

branch

condition

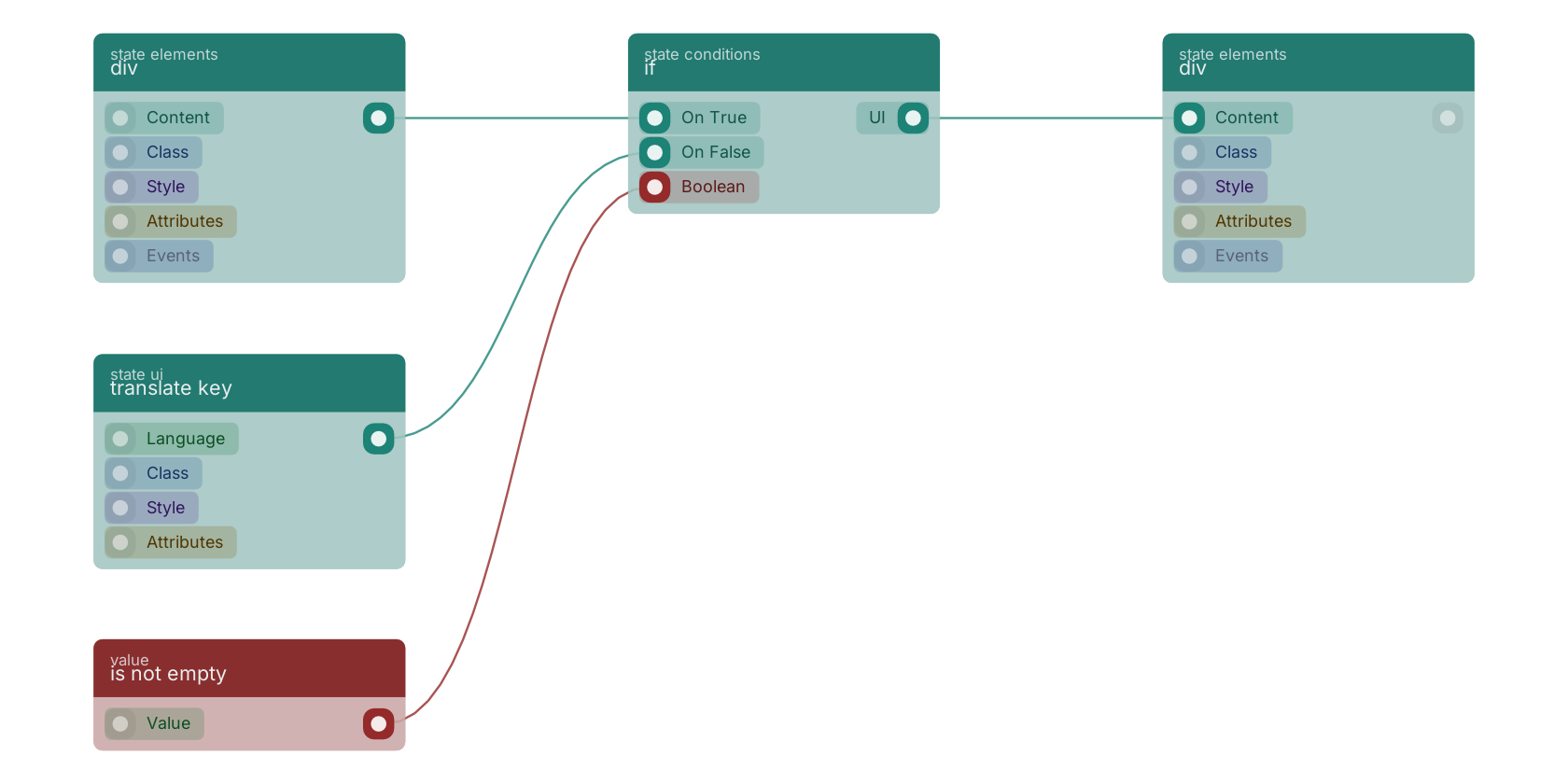

A typical wiring for if: div feeds the then pin; translate key feeds the else pin; is not empty feeds the condition pin; the state out pin feeds div.

Commonly used with

In production blueprints, this block is most often wired together with:

div: wired in both directions with this block. Creates a dynamic and customizable div element on your web page.
translate key: feeds into this block. Translates a given key and builds DOM nodes from the HTML within these keys.
is not empty: feeds into this block. checks if the value is filled (not empty).
send email with template: feeds into this block. sends a single email with a template.
get key: feeds into this block. Get given key from the current UI state.

Used in these guides

These documentation pages use or explain this block:

Migrating from State Pages

Version history

Introduced in v10.4.28.
