This block is part of the state ui group and was last modified in core v13.0.6.

image state v13.0.1 Updated v13.0.6

A image element.

In pins 5

src required
value
URI to the image to be shown
alt
value
Alternative text on the image
class
uiclass
Assigns a CSS class to the element. • Hidden when unused
style
uistyle
Applies inline CSS style to the element • Hidden when unused
attributes
uiattributes
Adds custom attributes to the element. • Hidden when unused

Out pins 1

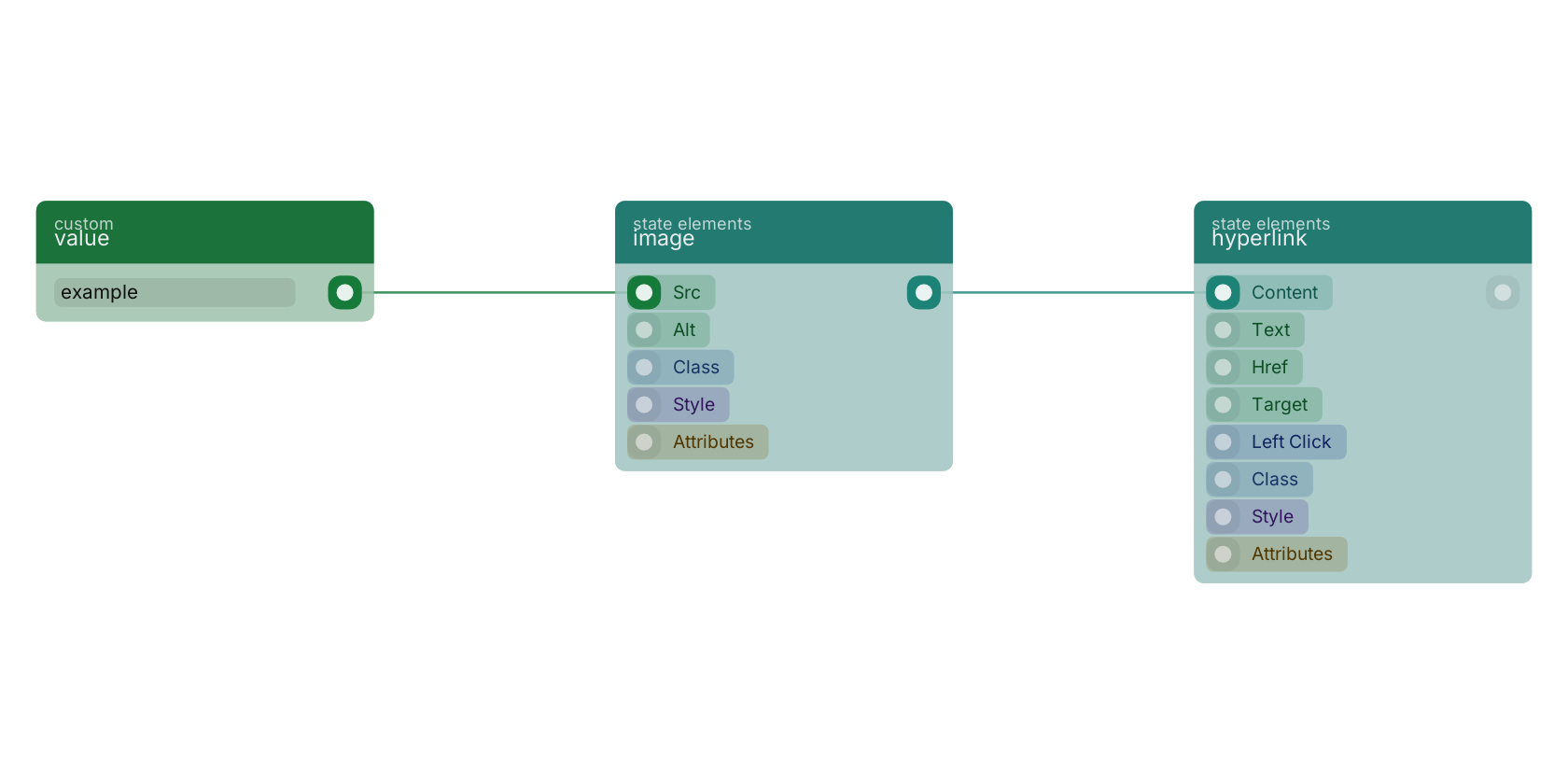

A typical wiring for image: value feeds the src pin; the state out pin feeds hyperlink.

Studio canvas example for the image block: typical wiring for image.

In production blueprints, this block is most often wired together with:

value: feeds into this block. Simply returns the provided value.
hyperlink: this block feeds into it. A anchor element, that can be used to create an link to an intern/extern page.
div: this block feeds into it. Creates a dynamic and customizable div element on your web page.

Introduced in v13.0.1.

Last modified in v13.0.6.
