Blocks Deprecated
Deprecated: use the web blocks for new pages This block belongs to state pages and UI components. Existing pages keep running, but new pages should use the web blocks. See Web Pages and the migration guide.

multiple

This block is part of the styling group and was last modified in core v10.4.28.

multiple v10.4.28

Multiple styling

In pins 2
  • style_1 uistyle required
  • style_2 uistyle required
Out pins 1
  • uistyle uistyle

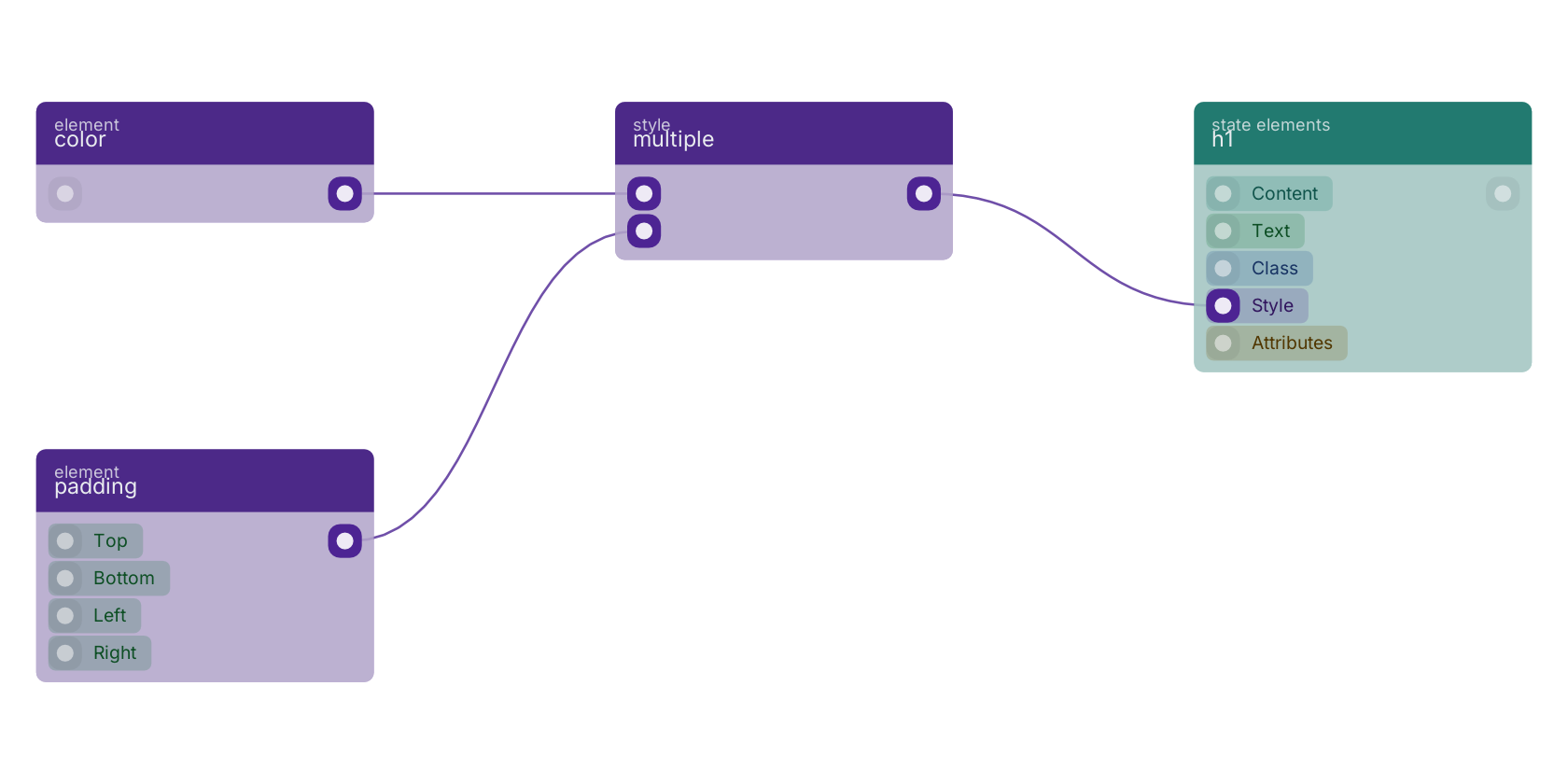

A typical wiring for multiple: color feeds the style_1 pin; padding feeds the style_2 pin; the uistyle out pin feeds h1.

Studio canvas example for the multiple block: typical wiring for multiple.

Commonly used with

In production blueprints, this block is most often wired together with:

  • h1: this block feeds into it. A H1 element.
  • color: feeds into this block. CSS property sets the foreground color value of an element their text and text decorations, and sets the currentcolor value.
  • padding: feeds into this block. A shorthand property for all the padding-* properties.

Version history

Introduced in v10.4.28.
