sign in

This block is part of the users group and was last modified in core v12.0.1.

sign in v12.0.1

let a user be able to login

In pins 3 + flow
  • flow
  • User ID value required

    The ID of the user (eg: username, email, code).

  • Password value required

    Password for the given user.

  • Expire at date v10.6.2

    The date/time this login session should expire.

Out pins 8 + flow
  • flow
  • Success condition

    Check if the user successfully signed in!

  • error value

    When success is false, The error shows here

  • Auth object

    Auth object containing access token and maxAge

  • Accesstoken value v12.0.1
  • User object
  • Need 2FA condition
  • 2FA methods array

    The 2FA methods that are enabled and configured for this user

  • Default 2FA method value

    The 2FA method the user has selected to be the users default

login
signin

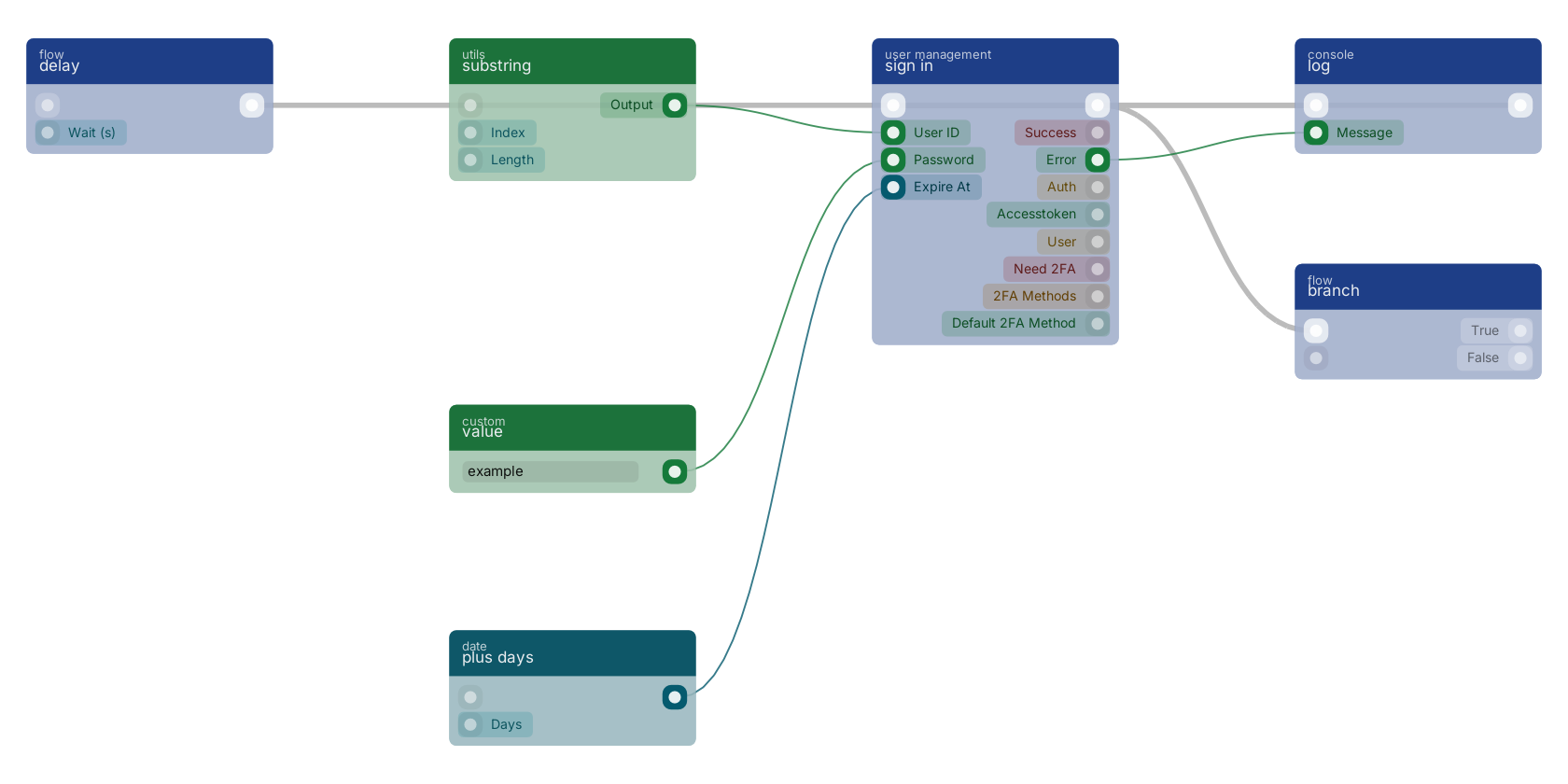

A typical wiring for sign in: plus days feeds the expiry_date pin; delay feeds the flow pin; substring feeds the user_id pin; value feeds the password pin; the flow out pin feeds branch; the error out pin feeds log.

Studio canvas example for the sign in block: typical wiring for sign in.

Commonly used with

In production blueprints, this block is most often wired together with:

  • branch: this block feeds into it.
  • new object: this block feeds into it. Builds a new object filled with the given fields.
  • plus days: feeds into this block. Plus an selected amount of days to your given date.
  • log: this block feeds into it.
  • delay: feeds into this block. generate a delay in seconds.
  • get fields: feeds into this block. Gets the selected fields from the given object.

Used in these guides

These documentation pages use or explain this block:

Version history

Introduced in v12.0.1.

v10.6.2 This block or one of its pins was updated in v10.6.2, click here to see the release notes.
