elseif
This block is part of the value group and was last modified in core v10.4.28.
elseif v10.4.28 Conditional branching for values (if.. then.. else if.. then.. else if.. default..).
In pins 3
- default required
value - else if required
condition - then required
value
Out pins 1
- value
value
Multi-way VALUE selector, not a flow gate: the engine pre-evaluates the elseif conditions in order and this block outputs the input wired to the winning then pin, or default when none match. It does not route execution. Outputs an empty string when no pin was pre-chosen.

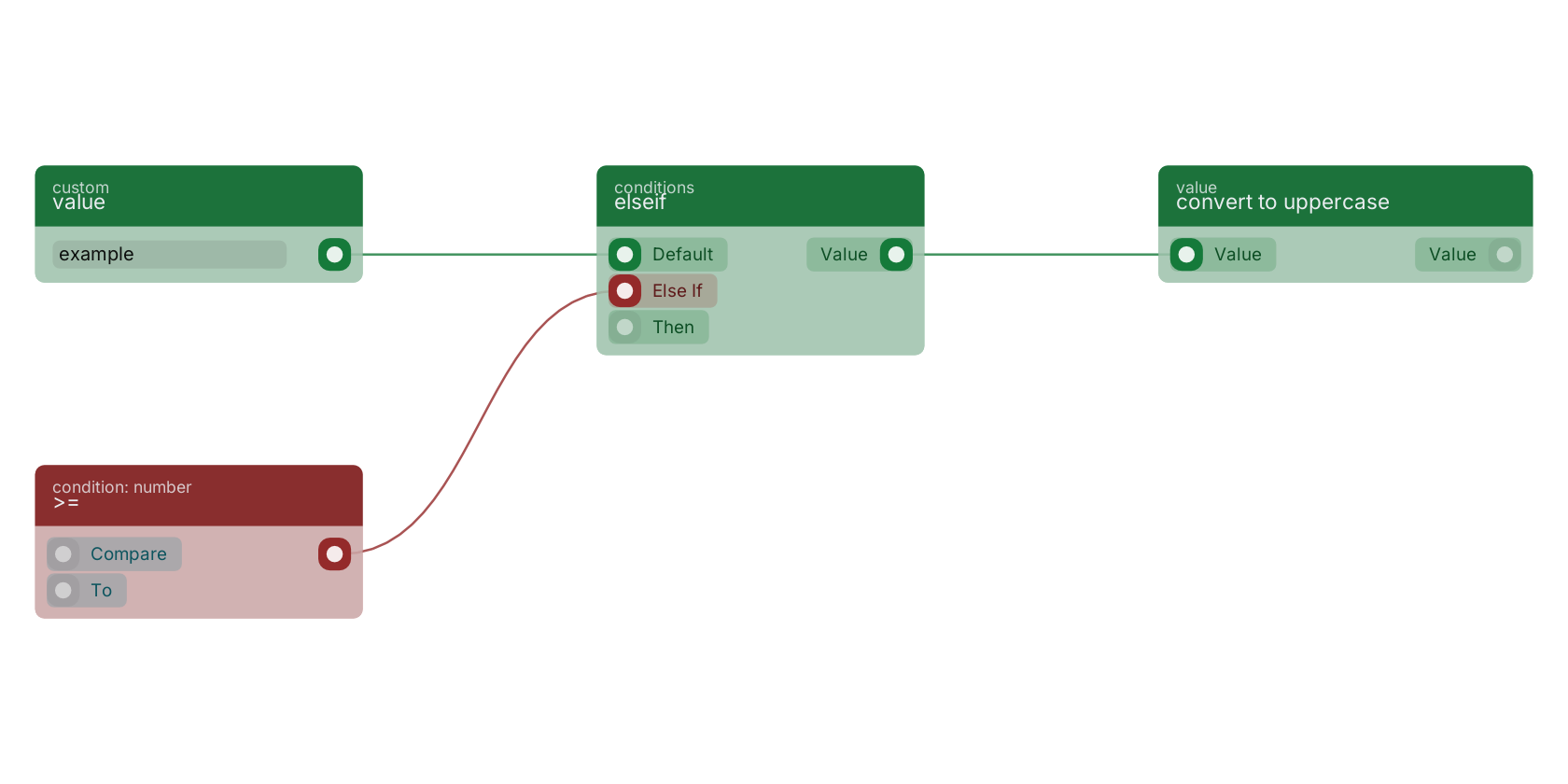

A typical wiring for elseif: value feeds the default pin; >= feeds the elseif pin; the value out pin feeds convert to uppercase.
Commonly used with
In production blueprints, this block is most often wired together with:
- value: feeds into this block. Simply returns the provided value.
- >=: feeds into this block. returns true if the number is higher or equal.
- AND: feeds into this block. operator for a set of boolean operands will be true if and only if all the operands are true.
- return: this block feeds into it. Returns the added custom pins as data-pins on the function execute.
Version history
Introduced in v10.4.28.
