This block is part of the condition group and was last modified in core v10.4.28.
>= v10.4.28 returns true if the number is higher or equal.
In pins 2
- compare required
number - to required
number
Out pins 1
- condition
condition
True when number_1 >= number_2 after JS-style numeric coercion: numeric strings parse ("10" >= 9 is true), nil and empty string coerce to 0, booleans to 1/0. False when either pin is unconnected or coerces to NaN (non-numeric string), so it is not simply the inverse of <.
higherequal |
singleequal |

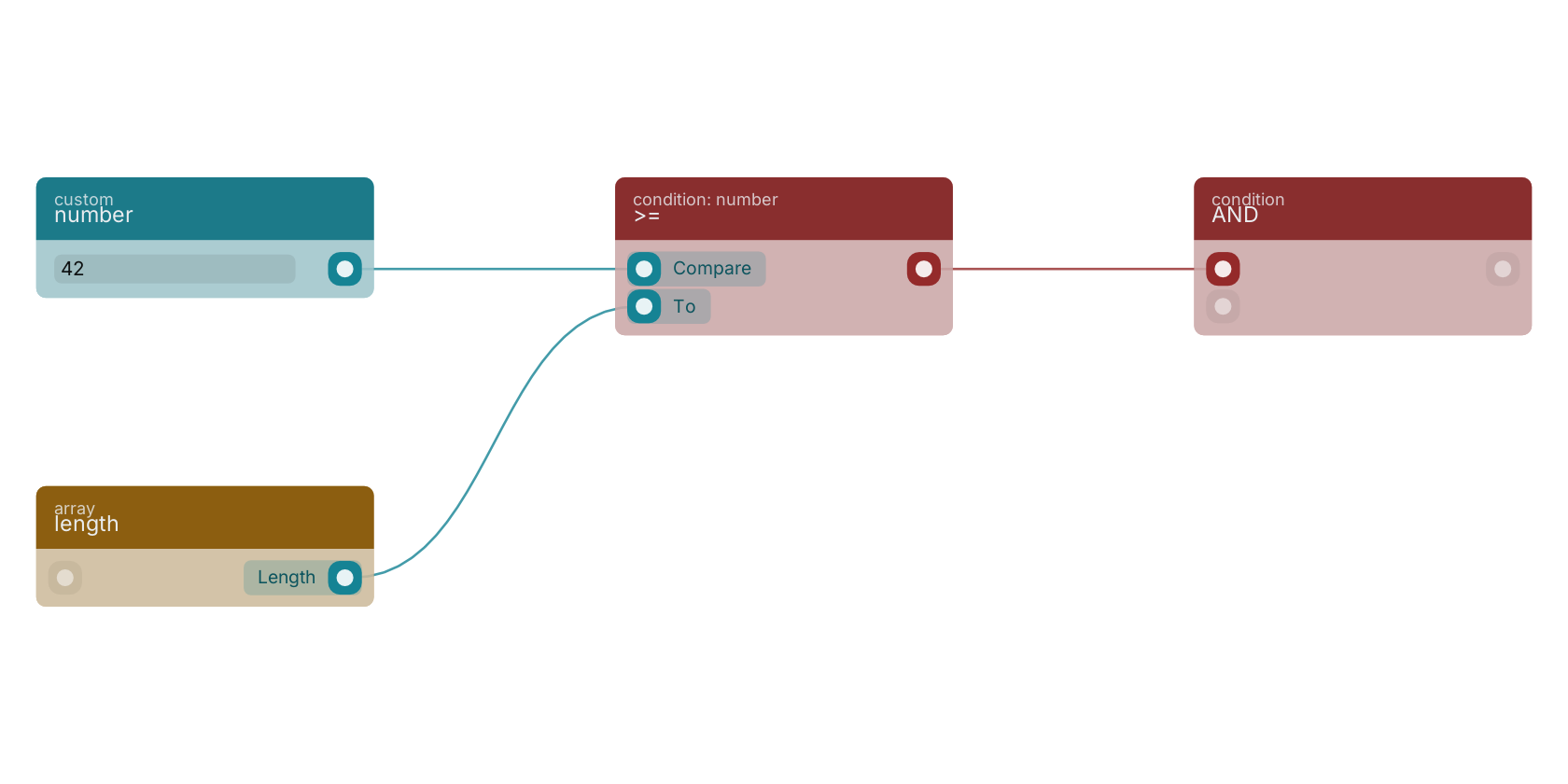

A typical wiring for >=: number feeds the number_1 pin; length feeds the number_2 pin; the condition out pin feeds AND.
Commonly used with
In production blueprints, this block is most often wired together with:
- number: feeds into this block. Generates a valid number from the filled custom value in the blueprint.
- AND: this block feeds into it. operator for a set of boolean operands will be true if and only if all the operands are true.
- get fields: feeds into this block. Gets the selected fields from the given object.
- create: feeds into this block. Creates a new function that can be executed using the given name.
- elseif: this block feeds into it. Conditional branching for values (if.. then.. else if.. then.. else if.. default..).
- length: feeds into this block. Returns the total length of the given array.
Version history
Introduced in v10.4.28.
