length

This block is part of the array group and was last modified in core v10.4.28.

length number v10.4.28

Returns the total length of the given array.

In pins 1

array required
array
The array for which to calculate the length.

Out pins 1

Length
number
The total length of the array.

Outputs the number of elements in the array on length. A missing or non-array input counts as 0. Nested arrays count as one element each; null elements are counted.

size

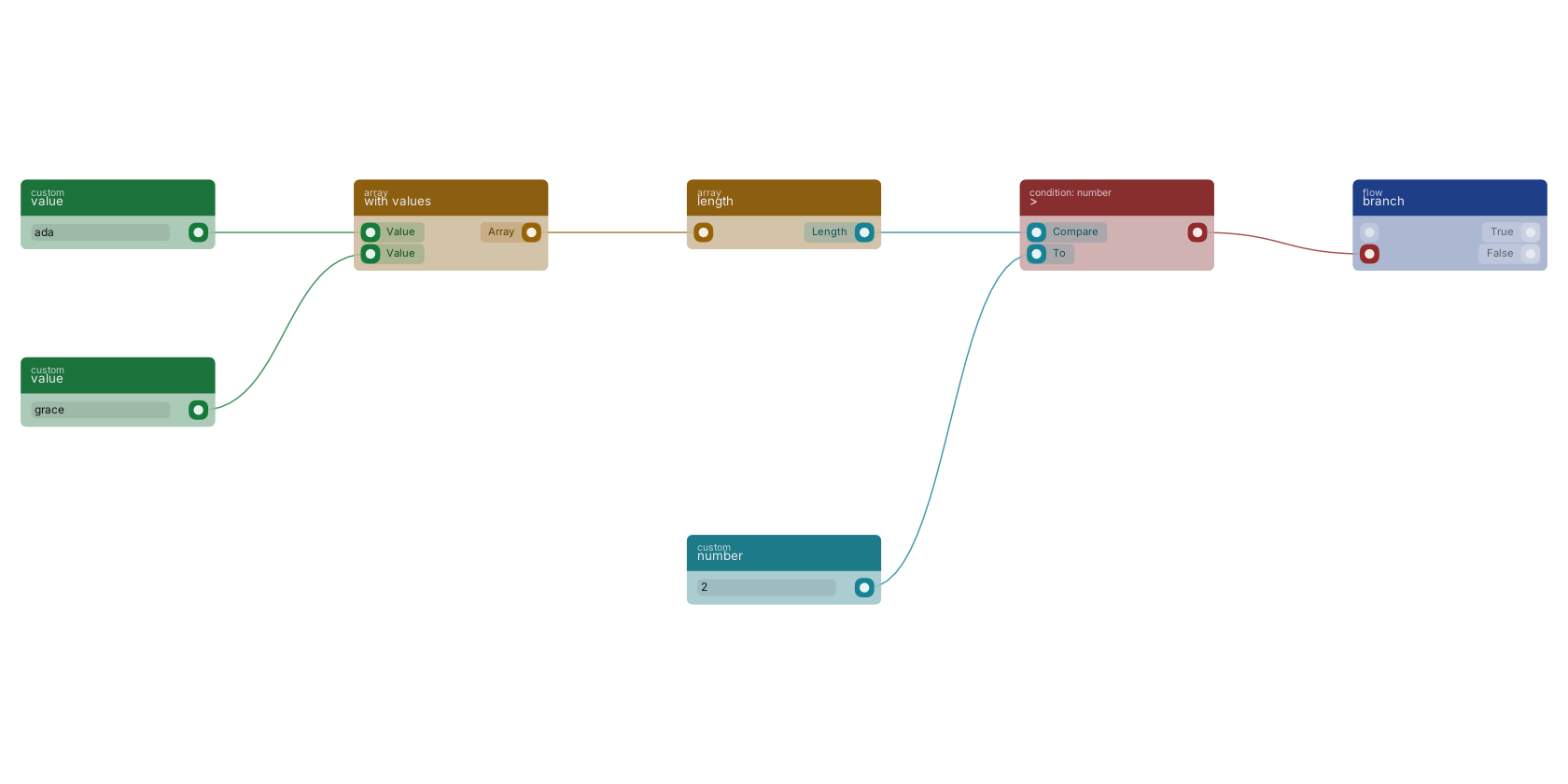

length takes an array and outputs its item count as a number. Here the array is built with with values, the count is compared against a fixed number with >, and the comparison drives a branch. The classic "do we have enough items" check.

Commonly used with

In production blueprints, this block is most often wired together with:

===: this block feeds into it. returns true if the two values are equal. Compares any type: numbers by value across int/float, strings and booleans strictly, objects and arrays deeply. There is no string/number coercion, so "1" does not equal 1.
remove duplicates: feeds into this block. Removes duplicate values from an array.
find by key - value: feeds into this block. Returns the matching objects for the given key value pair.
get fields: feeds into this block. Gets the selected fields from the given object.
new object: this block feeds into it. Builds a new object filled with the given fields.
>=: this block feeds into it. returns true if the number is higher or equal.

Used in these guides

These documentation pages use or explain this block:

Handling City Filter Uploads

Version history

Introduced in v10.4.28.
