pad end
This block is part of the value group and was last modified in core v14.0.1.
pad end v13.0.1 Updated v14.0.1Pads the given value with char. on the right to match the given length.
In pins 3
- value required
valueThe value to pad
- length required
numberThe padding length
- pad. with
valueThe value used as padding
Out pins 1
- value
valueReturns the padded value
Appends pad_with (repeated, then truncated) on the RIGHT until the value reaches target_length, counting Unicode code points, not bytes. Returns the value unchanged when it is already at or beyond target_length or when pad_with is empty; pad_with defaults to a single space. Example: "7" target_length=3 pad_with="0" -> "700".

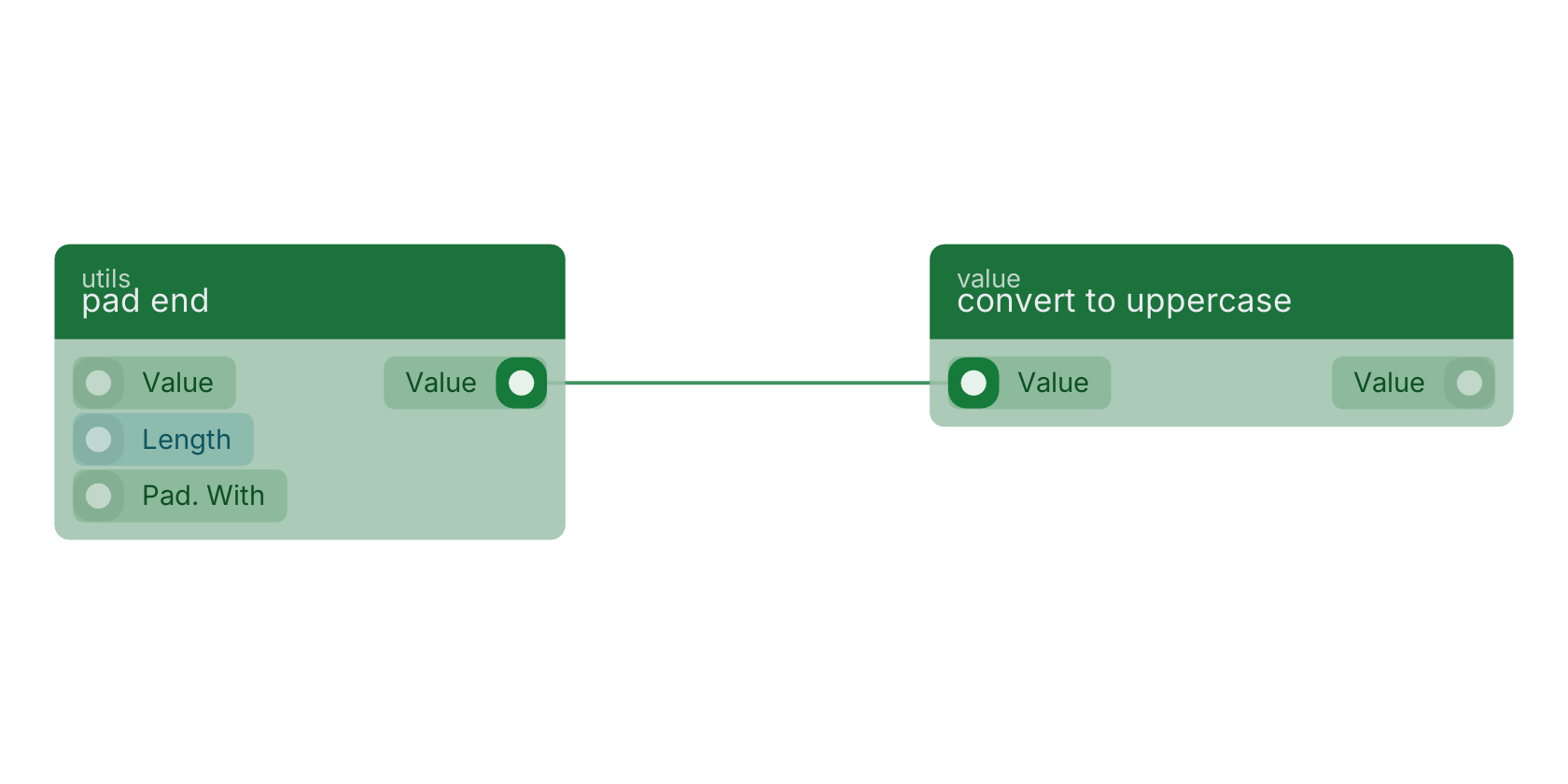

A typical wiring for pad end: the value out pin feeds convert to uppercase.
Version history
Introduced in v13.0.1.
Last modified in v14.0.1.
