switch
This block is part of the value group and was last modified in core v10.4.28.
switch v10.4.28 Returns a value based of the given expression.
In pins 2
- expression required
valueThe expression to evaluate.
- default
valueThe default statement to be executed.
Out pins 2
- output
valueReturns the value matching the expression.
- match
conditionReturns true in case a match was found.
String-compares the expression's value, EXACT and case-SENSITIVE, against each case pin's NAME and outputs the value wired into the matching case pin; when nothing matches it outputs the default pin's value. matched is true only for a non-default match; with no match and no default wired, value is nil and matched is false. There is no fall-through and no partial matching.

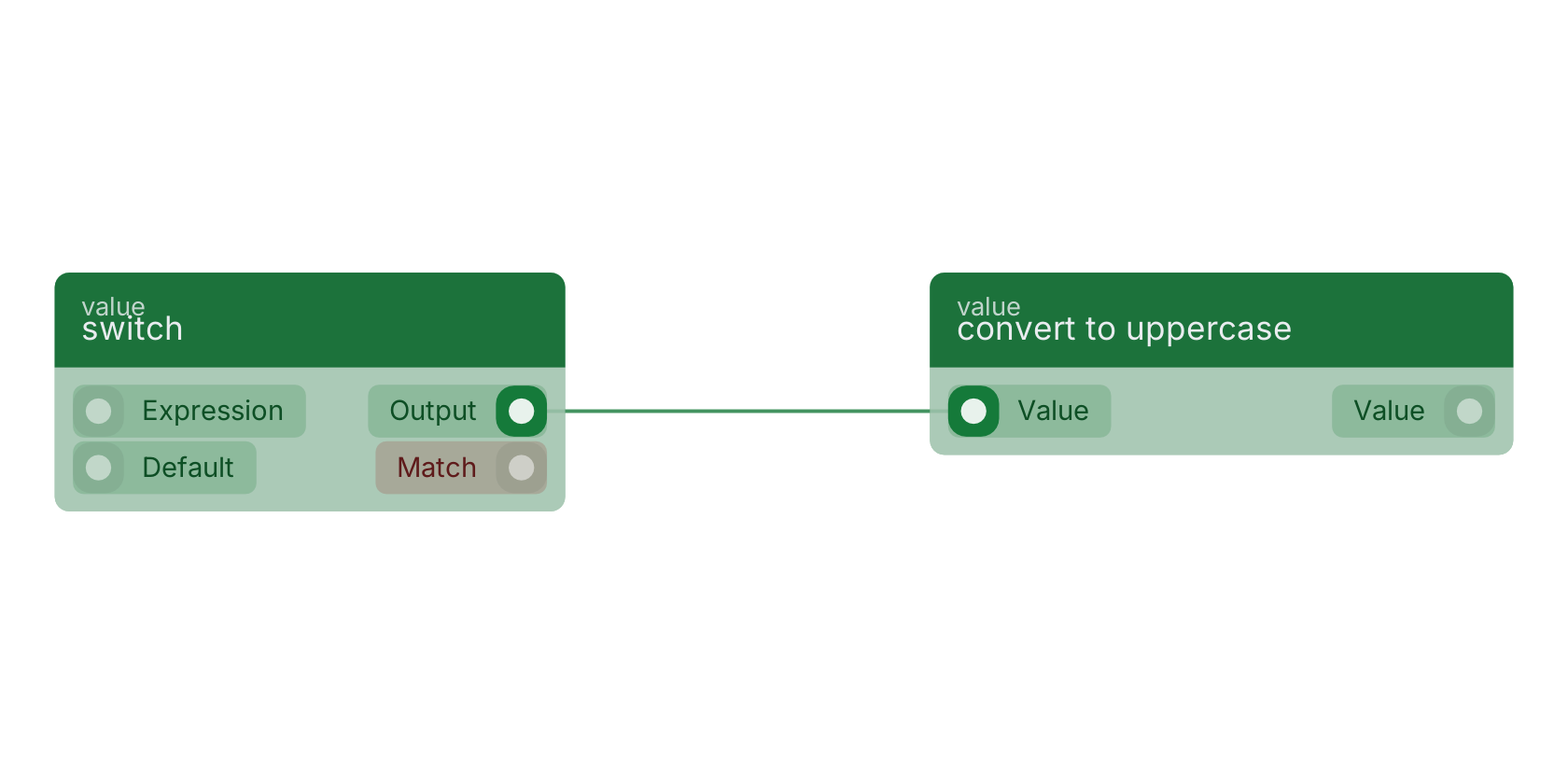

A typical wiring for switch: the value out pin feeds convert to uppercase.
Version history
Introduced in v10.4.28.
