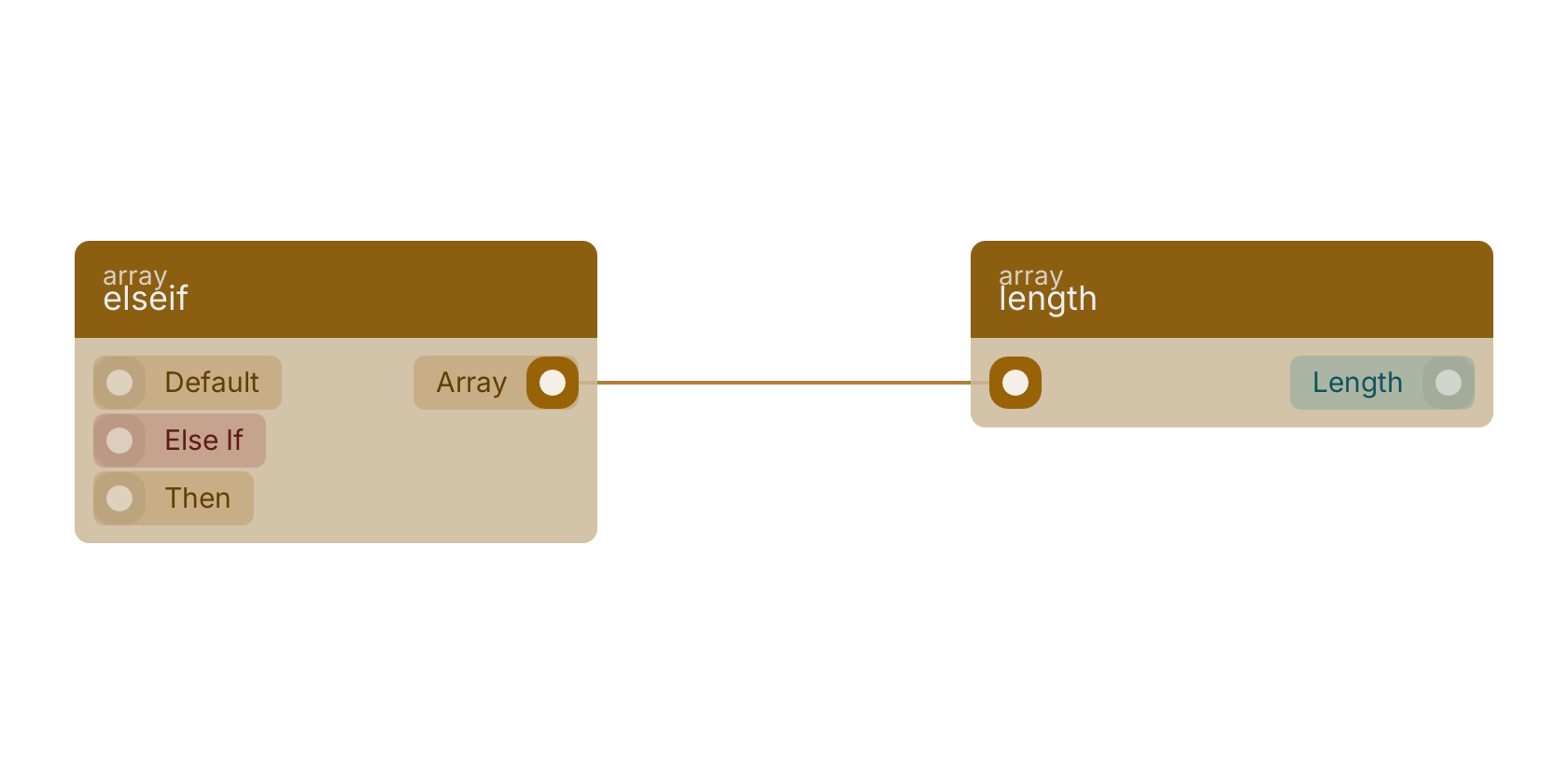

elseif
This block is part of the array group and was last modified in core v10.4.28.
elseif v10.4.28 Conditional branching for arrays (if.. then.. else if.. then.. else if.. default..).
In pins 3
- default required
arrayInput pin for the default array.
- else if required
conditionInput pin for the condition that determines which array is used as output.
- then required
arrayInput pin for the array to use if the condition is true.
Out pins 1
- array
arrayOutput pin for the resulting array based on the condition.
Evaluates the condition pins in order and outputs the array wired to the FIRST condition that is strict boolean true; when none are true it outputs the default input. Truthy non-boolean values do NOT count as true. If the selected input is not an array, outputs an empty array.
else |
switch |
Version history
Introduced in v10.4.28.
