start drag
This block is part of the dobot group and was last modified in core v14.0.1.
start drag v14.0.1 enables drag mode on the robot arm, allowing you to move it by hand and recording or savings positions
In pins 1 + flow
- flow
flow - connection required
dobotconnection
Out pins 2 + flow
- flow
flow - connection
dobotconnection - error
value

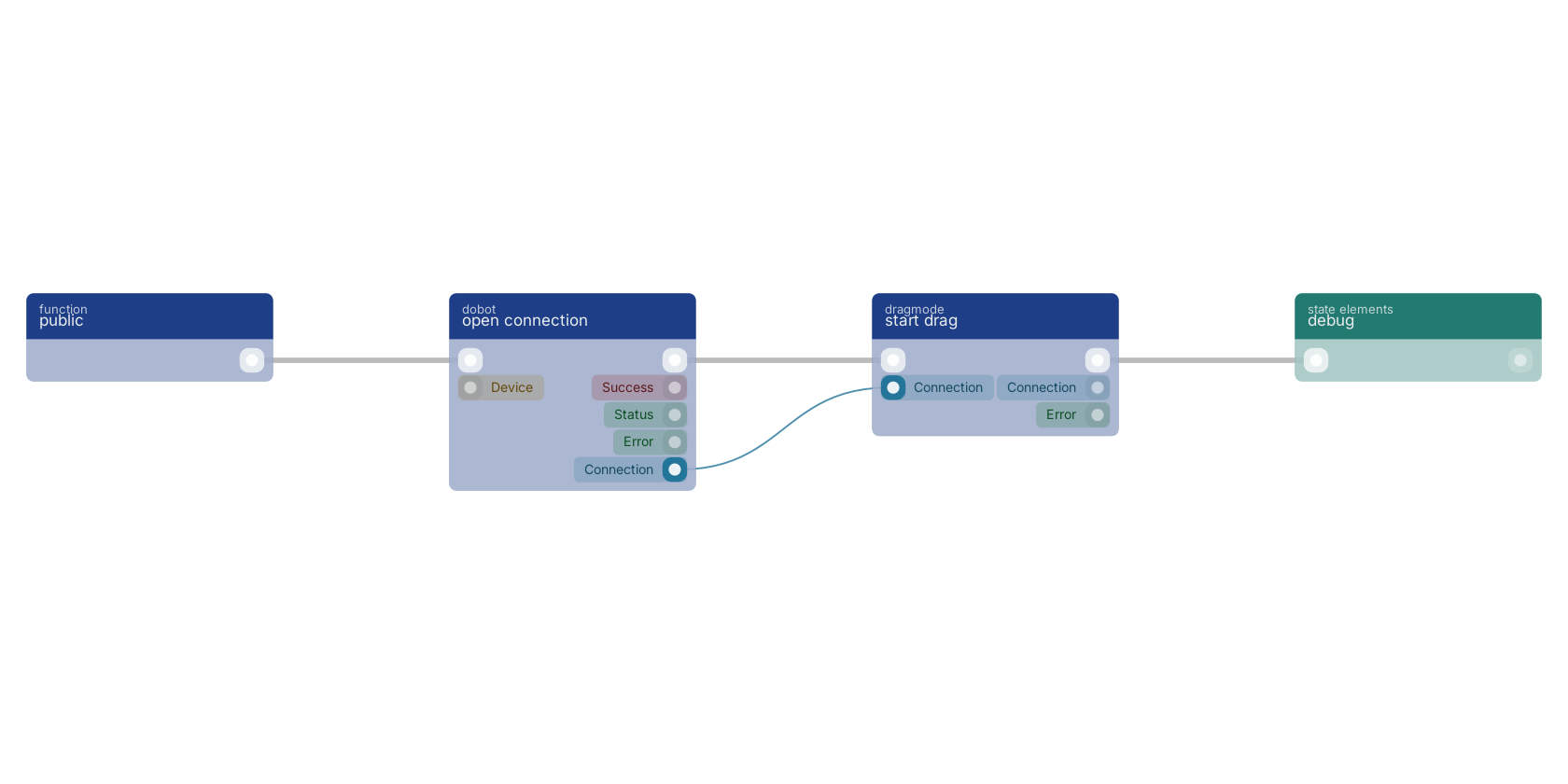

A typical wiring for start drag: a function trigger starts the flow; open connection feeds the connection pin; the flow out pin feeds debug.
Version history
Introduced in v14.0.1.
