increment by field

This block is part of the mutations group and was last modified in core v10.4.28.

Field Selection Required

This block relies on a field that you select to perform its data actions. You must manually select the field you want to use in your flow using the field selector modal. To access the modal, click the white button on the block.

increment by field mutations v10.4.28

In pins 1

Incr. by required
number

Out pins 1

mutations
mutations

Emits one number.increment mutation adding the increment_by pin to the selected number field. An unwired pin increments by 0; a wired value is passed through without coercion.

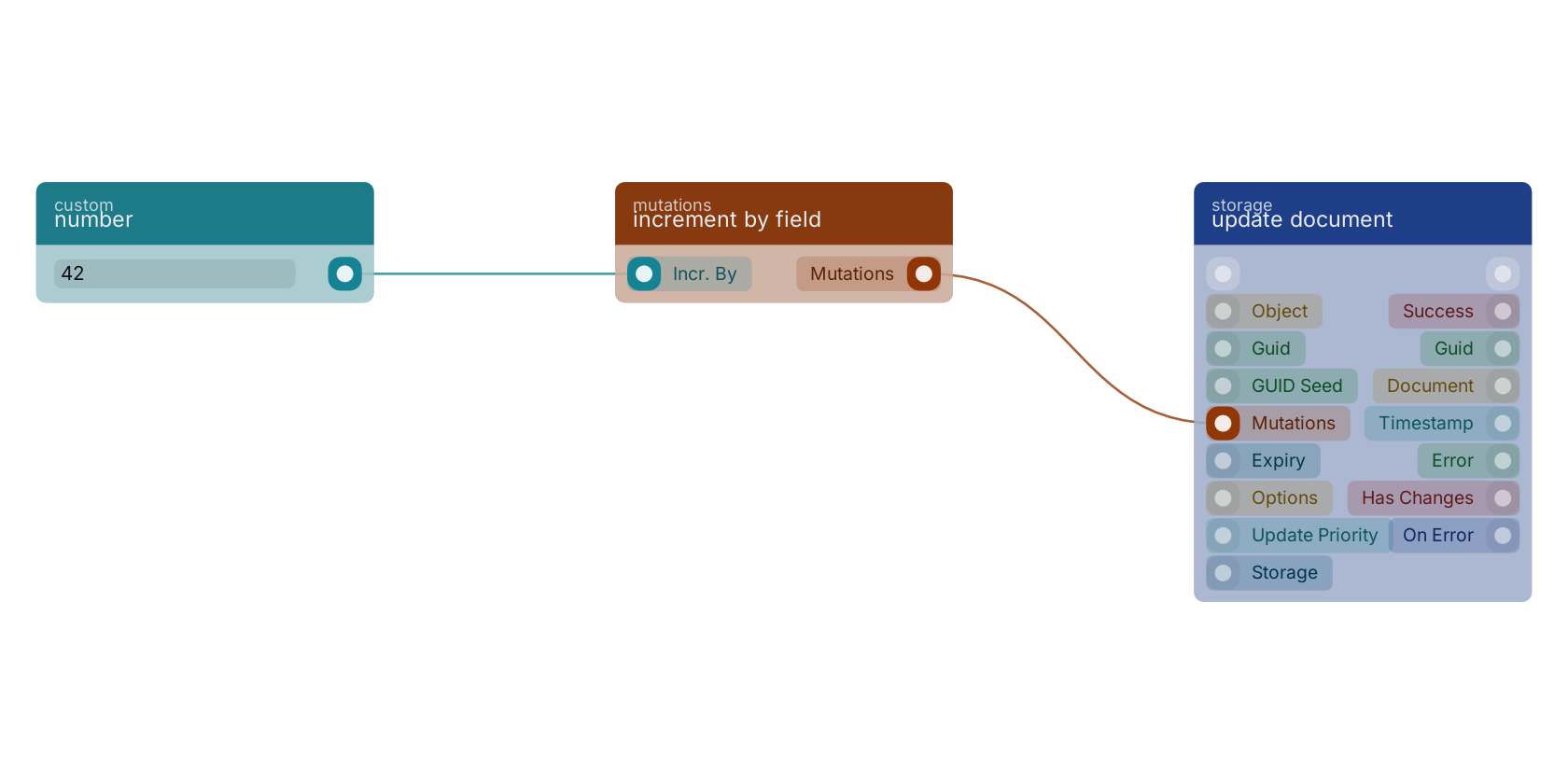

A typical wiring for increment by field: number feeds the increment_by pin; the mutations out pin feeds update document.

Commonly used with

In production blueprints, this block is most often wired together with:

number: feeds into this block. Generates a valid number from the filled custom value in the blueprint.
update document: this block feeds into it. Update document in the given storage and creates a revision for it.
if: this block feeds into it. use mutations X or Y based on a condition.
get fields: feeds into this block. Gets the selected fields from the given object.
multiple: this block feeds into it. combine multiple mutations into one.

Used in these guides

These documentation pages use or explain this block:

Version history

Introduced in v10.4.28.
