if
This block is part of the mutations group and was last modified in core v10.4.28.
if v10.4.28 use mutations X or Y based on a condition.
In pins 3
- true required
mutations - false required
mutations - boolean required
condition
Out pins 1
- mutations
mutations

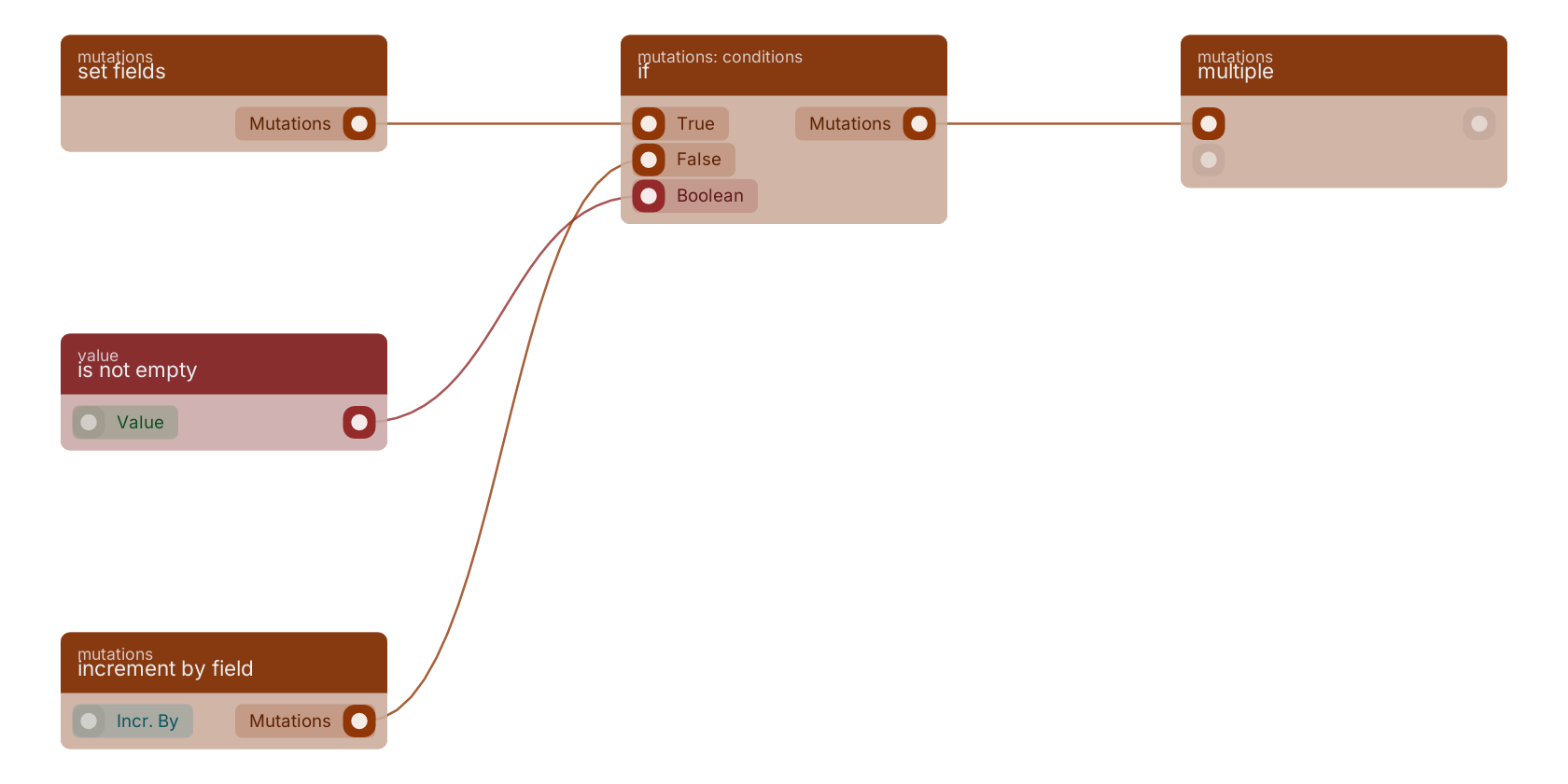

A typical wiring for if: set fields feeds the then pin; is not empty feeds the condition pin; increment by field feeds the else pin; the mutations out pin feeds multiple.
Commonly used with
In production blueprints, this block is most often wired together with:
- set fields: feeds into this block. Generates an array of mutations based on the given filled fields.
- multiple: this block feeds into it. combine multiple mutations into one.
- is not empty: feeds into this block. checks if the value is filled (not empty).
- increment by field: feeds into this block.
- OR: feeds into this block. operator for a set of operands is true if and only if one or more of its operands is true.
- update document: this block feeds into it. Update document in the given storage and creates a revision for it.
Version history
Introduced in v10.4.28.
