if

This block is part of the number group and was last modified in core v10.4.28.

if number v10.4.28

In pins 3

true required
number
false required
number
boolean required
condition

Out pins 1

number
number

Outputs the then pin when the condition pin evaluated true, otherwise the else pin; which input is read is pre-selected by the engine before this block runs. The chosen value passes through unchanged (no coercion), and no selection means nil. Example: condition=true then=5 else=9 -> 5.

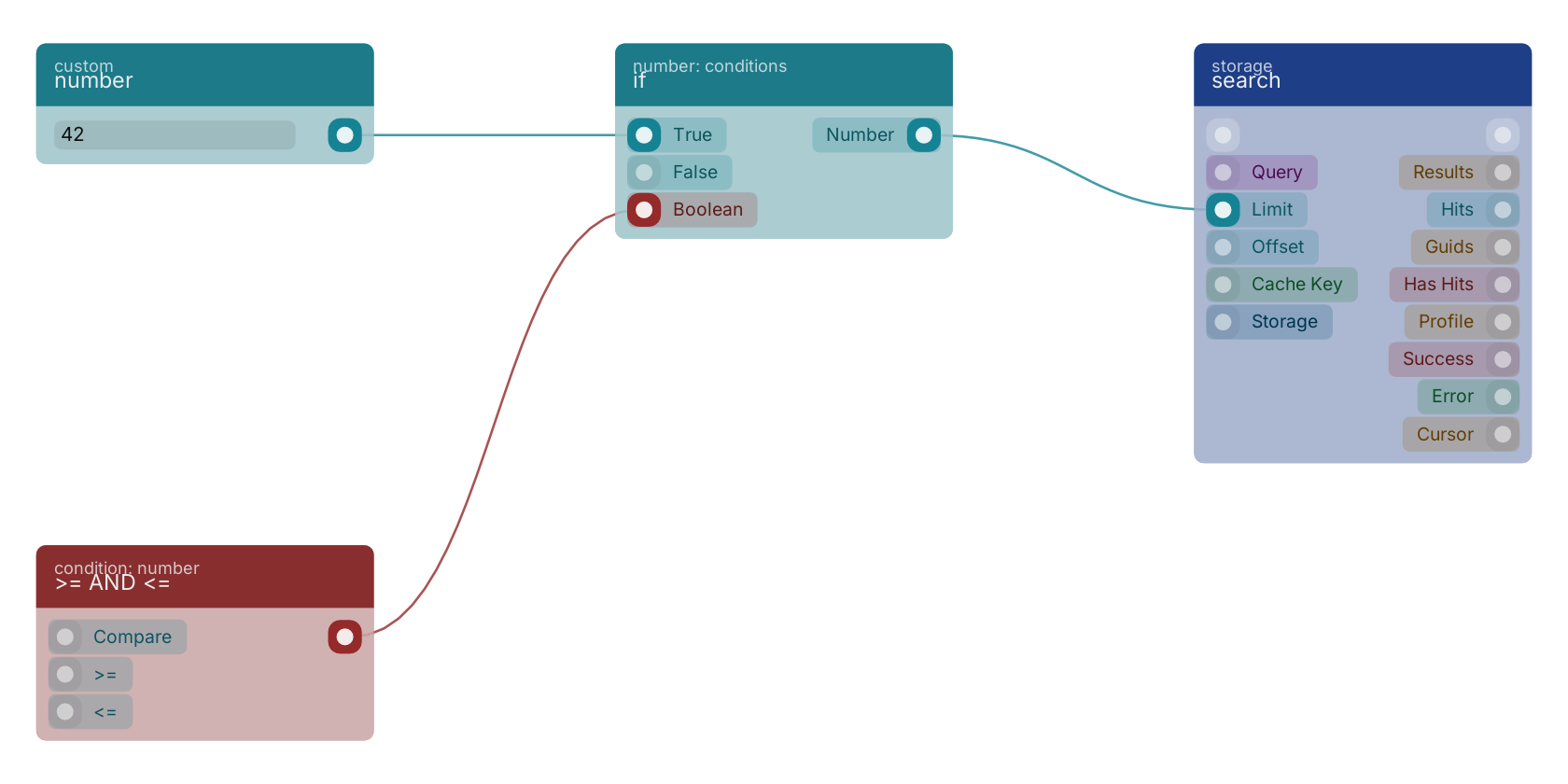

A typical wiring for if: number feeds the then pin; >= AND <= feeds the condition pin; the number out pin feeds search.

Commonly used with

In production blueprints, this block is most often wired together with:

number: feeds into this block. Generates a valid number from the filled custom value in the blueprint.
if: wired in both directions with this block.
create: feeds into this block. Creates a new function that can be executed using the given name.
set fields: this block feeds into it. Generates an array of mutations based on the given filled fields.
get fields: feeds into this block. Gets the selected fields from the given object.
>= AND <=: feeds into this block. returns true if the numbers is between the two numbers.

Version history

Introduced in v10.4.28.
