increment
This block is part of the redis group and was last modified in core v13.0.6.
Redis Key Selection Required
This block relies on a Redis key to perform its redis releated actions. You must manually select the Redis key you want to use in the flow in the blueprint using the Redis key selector modal. To access the modal, click the white button on the block.
increment v11.0.0 Updated v13.0.6Increments the number stored at key by one. If the key does not exist, it is set to 0 before performing the operation.
- flow
flow - number required
numberNumber to increment given cache key with.
- flow
flow - number
numberNew number.
- error
value - key
v13.0.6valuecurrent redis key, this outpin be handy when using dynamic redis keys
redis incr |
incr |

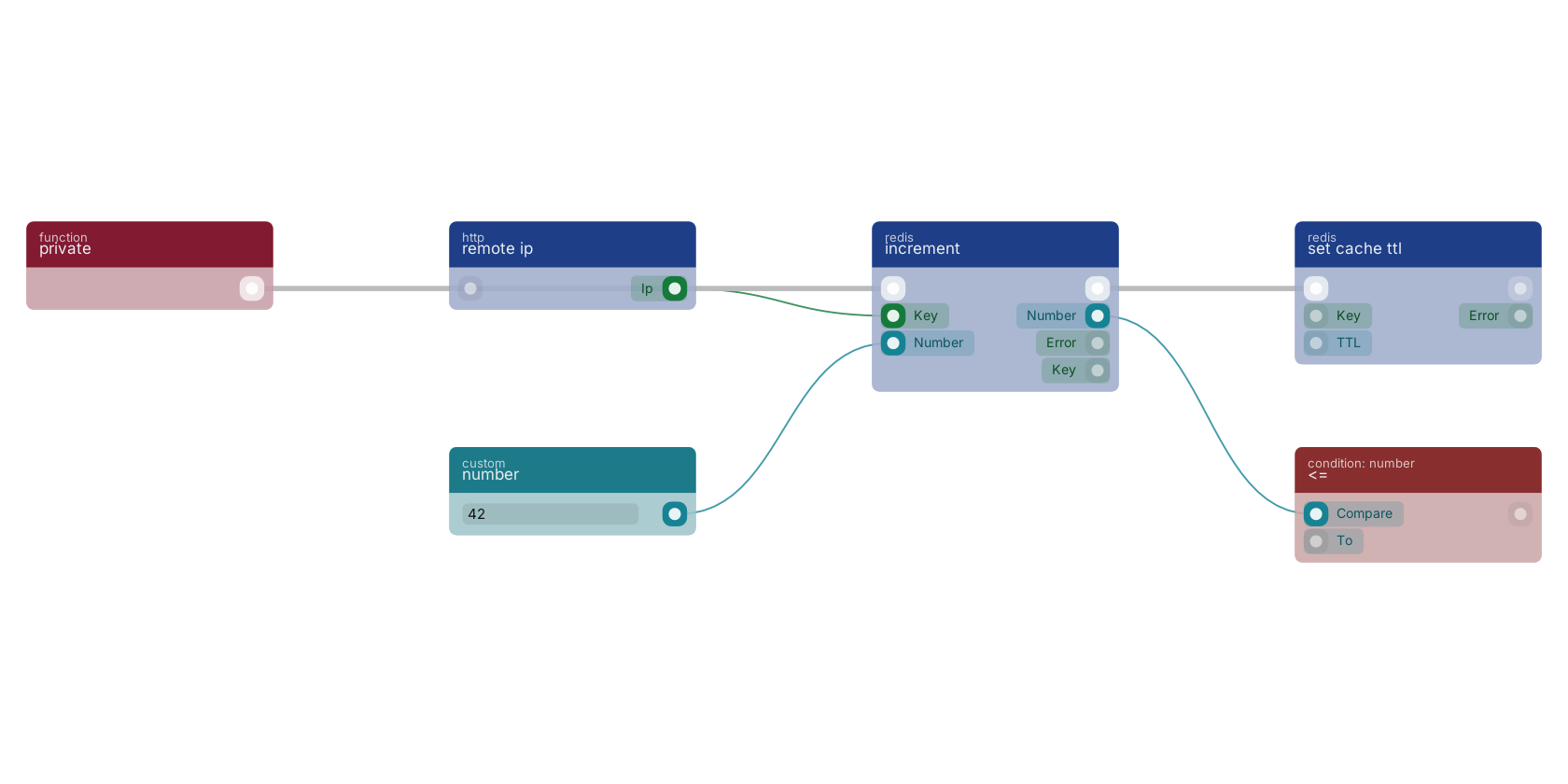

A typical wiring for increment: number feeds the number pin; remote ip feeds the key pin; the output out pin feeds <=; the flow out pin feeds set cache ttl.
Commonly used with
In production blueprints, this block is most often wired together with:
- set cache ttl: wired in both directions with this block. set the time to live in seconds.
- number: feeds into this block. Generates a valid number from the filled custom value in the blueprint.
- <=: this block feeds into it. returns true if the number is lower or equal.
- remote ip: feeds into this block. Returns the currently connected user IP.
- create: feeds into this block. Creates a new function that can be executed using the given name.
- branch: this block feeds into it.
Version history
Introduced in v11.0.0.
Last modified in v13.0.6.
