This block is part of the condition group and was last modified in core v10.4.28.
<= v10.4.28 returns true if the number is lower or equal.
In pins 2
- compare required
number - to required
number
Out pins 1
- condition
condition
True when number_1 <= number_2 after JS-style numeric coercion: numeric strings parse, nil and empty string coerce to 0, booleans to 1/0. False when either pin is unconnected or coerces to NaN (non-numeric string), so it is not simply the inverse of >.
lowerequal |
singleequal |

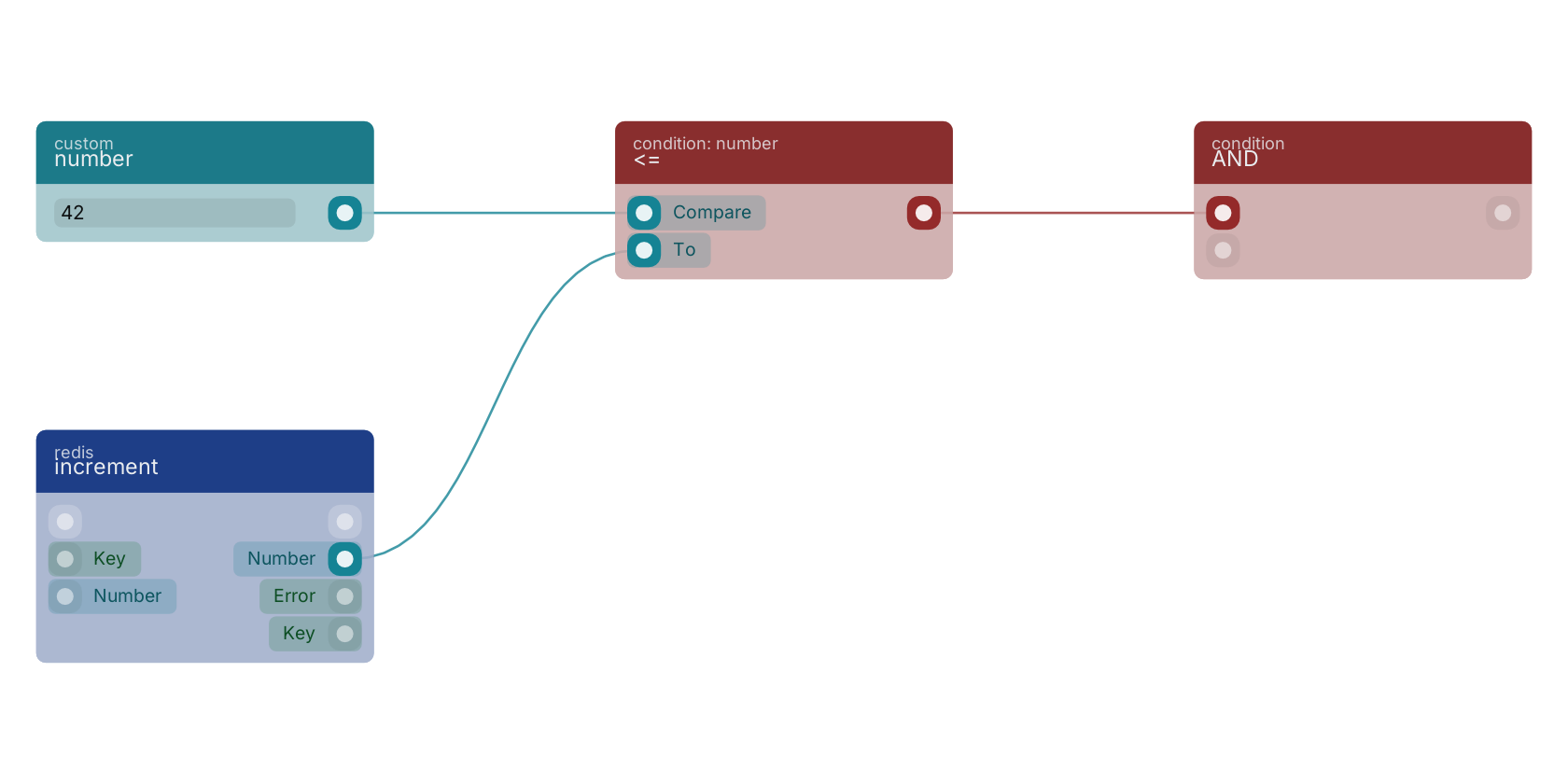

A typical wiring for <=: number feeds the number_1 pin; increment feeds the number_2 pin; the condition out pin feeds AND.
Commonly used with
In production blueprints, this block is most often wired together with:
- number: feeds into this block. Generates a valid number from the filled custom value in the blueprint.
- increment: feeds into this block. Increments the number stored at key by one. If the key does not exist, it is set to 0 before performing the operation.
- AND: this block feeds into it. operator for a set of boolean operands will be true if and only if all the operands are true.
- branch: this block feeds into it.
- OR: this block feeds into it. operator for a set of operands is true if and only if one or more of its operands is true.
- file info: feeds into this block. Gets basic file information.
Version history
Introduced in v10.4.28.
