validate against whitelist

This block is part of the value group and was last modified in core v14.0.3.

validate against whitelist value v14.0.3

Matches the input against a whitelist by string representation and returns the matching whitelist entry (in its original type), or the fallback when nothing matches

In pins 3

value required
value
Value to be validated
allowed values required
array
Array of allowed values for exact matching
fallback
value
Fallback value in-case no safe values found
Default First value from allowed values array

Out pins 1

value
value
Returns a guaranteed-safe value

Compares unsafe_value against each safe_array element by STRING representation and outputs the matching array ELEMENT (its original type), not the input. No match -- or a match whose string form is empty -- outputs fallback_value, or the FIRST array element when fallback_value is empty or unwired. An empty or missing safe_array emits NO output at all.

safe values

whitelist

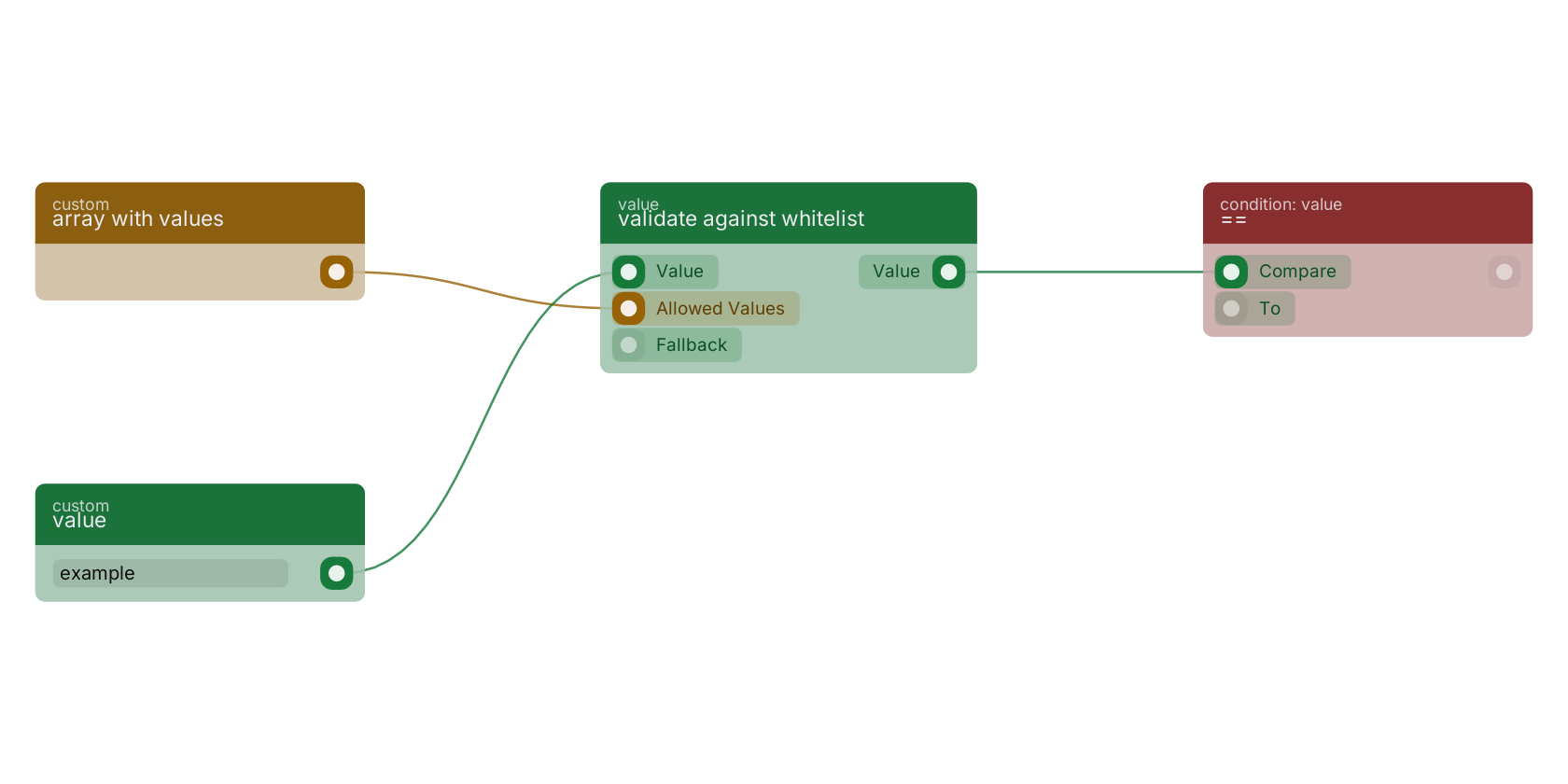

A typical wiring for validate against whitelist: array with values feeds the safe_array pin; value feeds the unsafe_value pin; the value out pin feeds ==.

Commonly used with

In production blueprints, this block is most often wired together with:

array with values: feeds into this block. Creates a new array of given values.
get fields: feeds into this block. Gets the selected fields from the given object.
set fields: this block feeds into it. Generates an array of mutations based on the given filled fields.
value: feeds into this block. Simply returns the provided value.
==: this block feeds into it. returns true if the two values are equal.
new object: this block feeds into it. Builds a new object filled with the given fields.

Version history

Introduced in v14.0.3.
