request: delete

This block is part of the webhooks group and was last modified in core v15.0.0.

request: delete number v12.1.6 Updated v15.0.0

Performs an HTTP DELETE request to remove a resource at the specified URL. Returns the response as a string value.

In pins 10 + flow

flow
flow
URL required
value
Auth. header
value
Hidden when unused
Query String
object
Hidden when unused
skip ssl
condition
true will skip SSL verification • Hidden when unused
include token v12.1.6
condition
true will include current users access token in header, to support internal RUAL endpoints requests • Hidden when unused
timeout v14.0.1
number
Overwrites the default timeout. Time in seconds. • Hidden when unused
retry v14.0.4
condition
Enable automatic retry on failure. Uses exponential backoff. • Hidden when unused
Default false
retry count v14.0.4
number
Maximum number of retry attempts. Default is 3. • Hidden when unused
Default 3
retry delay v14.0.4
number
Initial delay between retries in seconds. Uses exponential backoff (delay doubles each retry). • Hidden when unused
Default 1
signing key v15.0.0
value
When set, signs the request with HMAC-SHA256 for RUAL-internal APIs (e.g. the mssgs backend): adds X-Mssgs-Timestamp (Unix seconds) and X-Mssgs-Signature: sha256=<hex> computed over timestamp\nmethod\nrequest URI\nbody. • Hidden when unused

Out pins 3 + flow

request

http delete

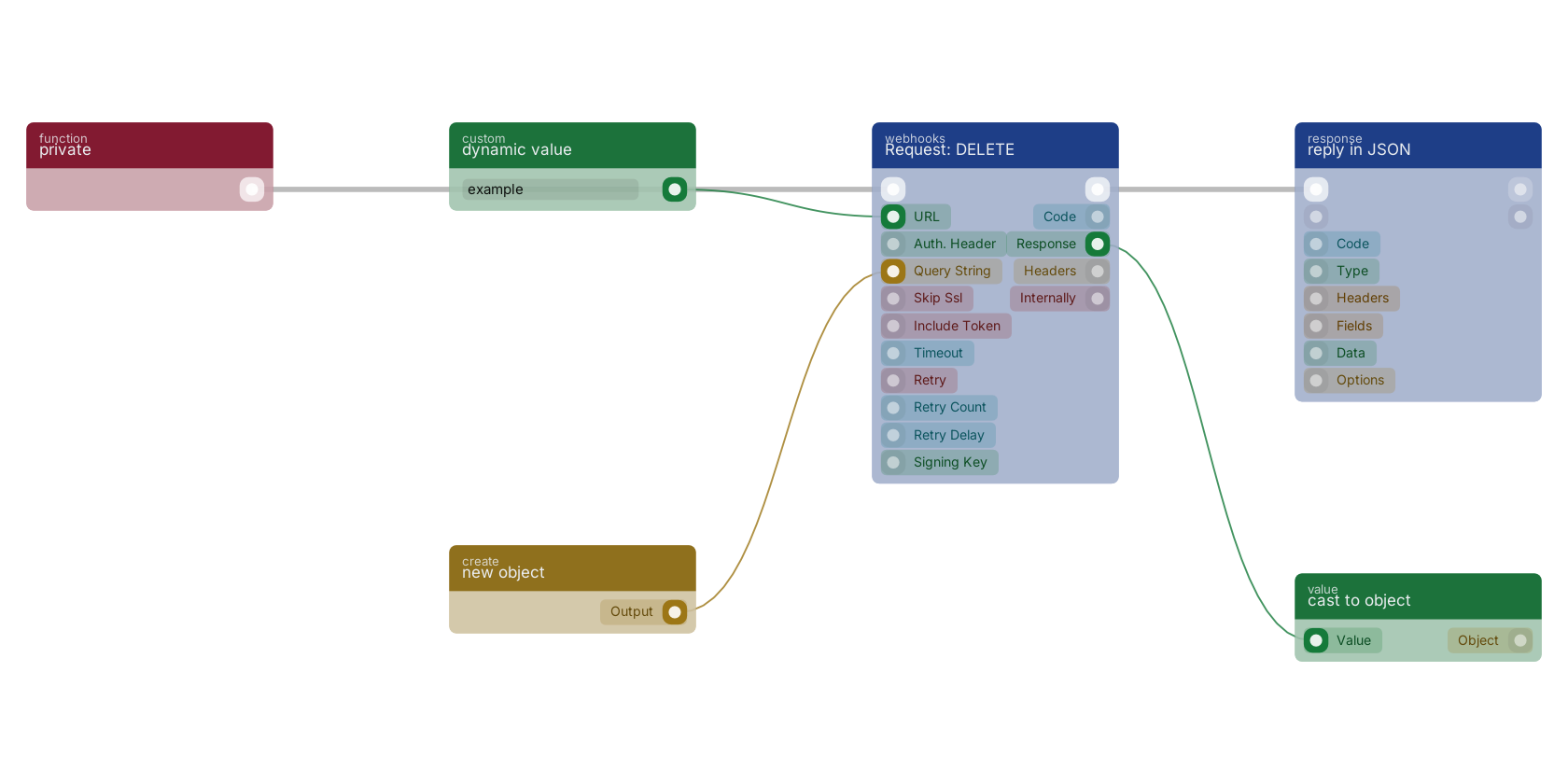

A typical wiring for Request: DELETE: new object feeds the querystring pin; dynamic value feeds the url pin; the flow out pin feeds reply in JSON; the response out pin feeds cast to object.

Studio canvas example for the Request: DELETE block: typical wiring for Request: DELETE.

In production blueprints, this block is most often wired together with:

reply in JSON: this block feeds into it. Reply to any httpconnection as JSON body.
new object: feeds into this block. Builds a new object filled with the given fields.
create: feeds into this block. Creates a new function that can be executed using the given name.
cast to object: this block feeds into it. Converts the given value into an object.
dynamic value: feeds into this block. Returns the provided value with support for dynamic inpins using {name:type} placeholders — the pin's name first, then its type, e.g. {guid:value}.

Introduced in v12.1.6.

Last modified in v15.0.0.
