code input

This block is part of the Component UI group and was last modified in core v10.4.28.

code input uicomponent v10.4.28

Generates multiple inputs based on the given code length. It can further be specified to only allow numbers and to execute the on enter function after all inputs are filled

In pins 8

Field required
fielddefinitions
Field to save the value in
Length
number
Defines how many inputs to show
Default 6
Numbers only
condition
If set to true, the inputs will only allow numbers
Default false
Alpha Numeric
condition
If set to true, the inputs will only allow A-Z and 0-9
Default false
Is required
condition
Checks if the code input is filled.
Default false
On enter
inpinfunction
Function will be executed as soon as the enter button is hit
Call on enter
condition
If set to true the inputs will call the on enter function as soon as every input is filled
Default false
Clear on enter
condition
If set to true the inputs will clear the filled fields when enter is pressed or called
Default false

Out pins 1

uicomponent
uicomponent

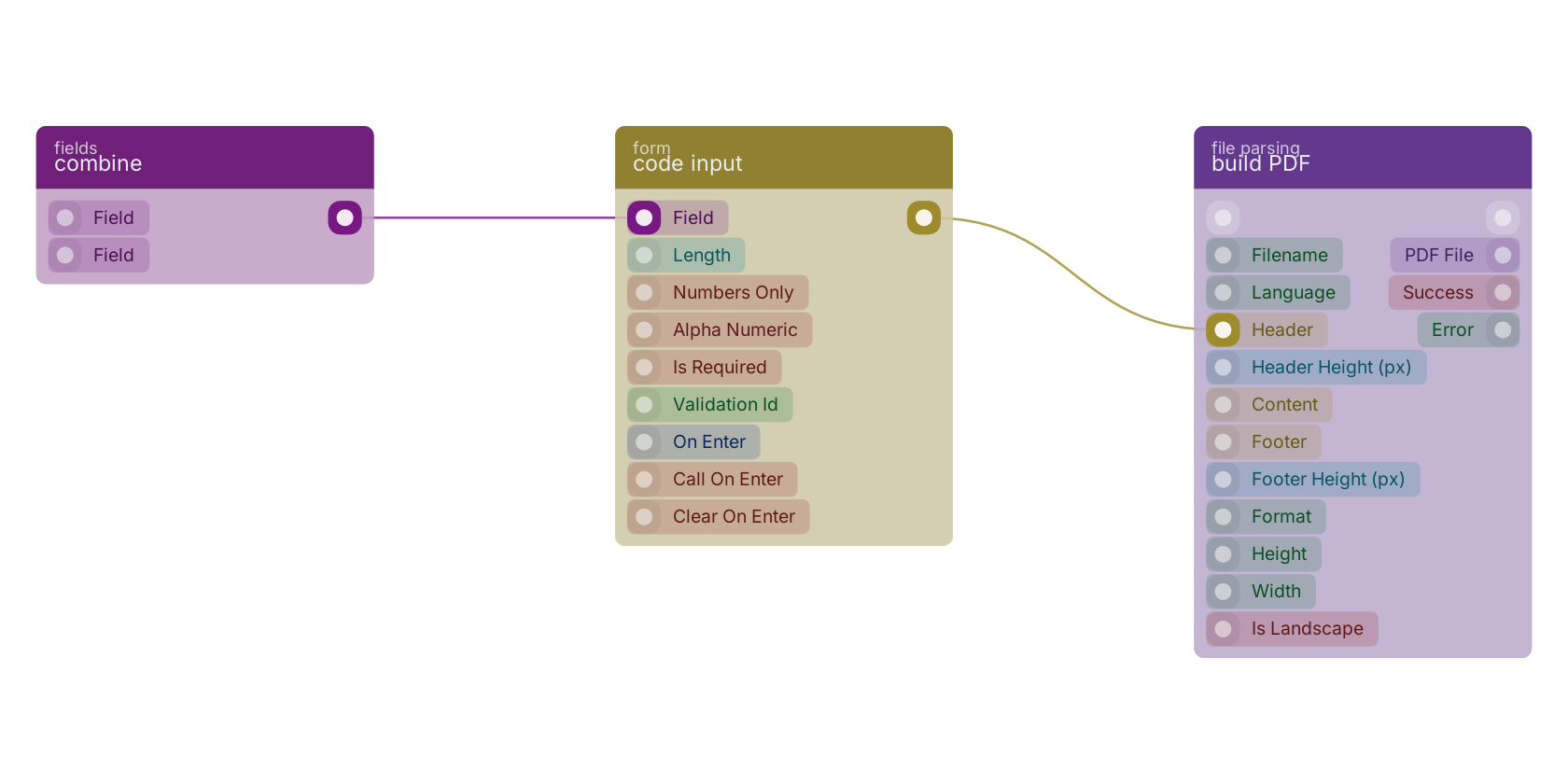

A typical wiring for code input: combine feeds the fields pin; the uicomponent out pin feeds build PDF.

Studio canvas example for the code input block: typical wiring for code input.

Version history

Introduced in v10.4.28.
