Deprecated: use the web blocks for new pages This block belongs to state pages and UI components. Existing pages keep running, but new pages should use the web blocks. See Web Pages and the migration guide.

searchbar

This block is part of the Component UI group and was last modified in core v12.0.7.

searchbar v12.0.7

Searchbar component able to search through a storage in the backend

In pins 11
  • Storage storage required

    The storage to search through • Hidden when other fields are filled

  • List array required

    An array with objects to search through. • Hidden when other fields are filled

  • Visible Field fielddefinitions required

    Field that will be selected from the row as an input value

  • Stored Field fielddefinitions required

    Field to save the selected fields in. It will be an object of the row that was selected by the user

  • Fields To Select fielddefinitions required

    Fields to select from the row to save in the form

  • search fields fielddefinitions v12.0.7

    Fields to search through

  • Validate fieldvalidation v10.4.54

    Applies the given validation to the element, overwrites attributes given in the attributes popup. As the searchbar can store multiple values, only the required will be checked

  • Query query

    Query that will be applied by default. This can be used to restrict what the user can search for. • Hidden when other fields are filled

  • Event inputevent
  • Row render inpinfunction v10.4.52
  • Disable Dropdown condition

    disables the dropdown being shown

Out pins 1
  • uicomponent uicomponent

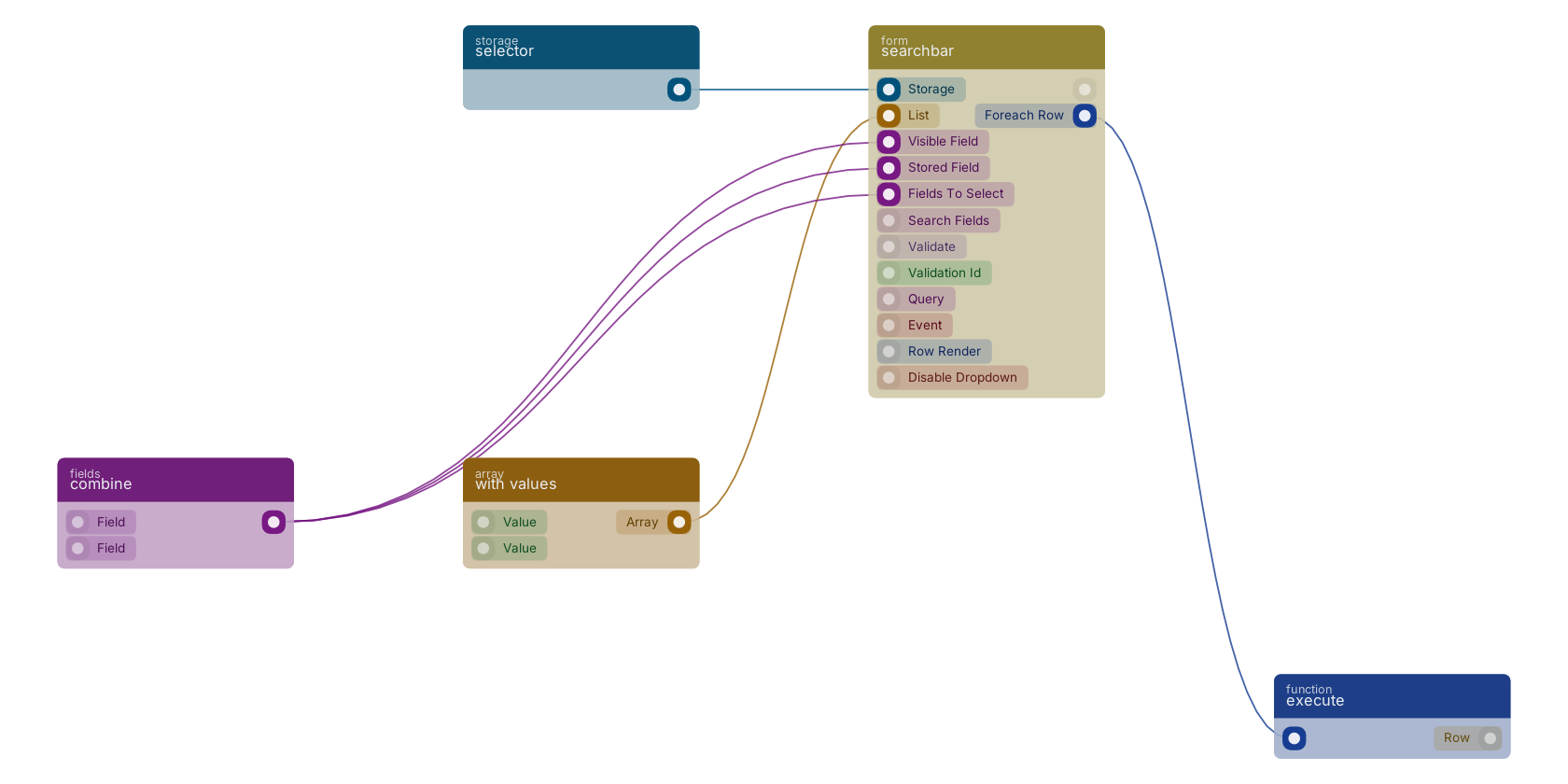

A typical wiring for searchbar: selector feeds the co-storage pin; with values feeds the listitems pin; combine feeds the co-fields-visible pin; combine feeds the co-fields-key pin; combine feeds the co-fields-selection pin; the function out pin wires to an execute block.

Studio canvas example for the searchbar block: typical wiring for searchbar.

Version history

Introduced in v12.0.7.

v11.3.0 This block or one of its pins was updated in v11.3.0, click here to see the release notes. v10.4.54 This block or one of its pins was updated in v10.4.54, click here to see the release notes. v10.4.52 This block or one of its pins was updated in v10.4.52, click here to see the release notes.
