broadcast

This block is part of the broadcast group and was last modified in core v15.0.0.

broadcast flow v15.0.0

Send a message across different sessions over a channel and event. These messages are on send and forget base and are not stored.

In pins 5 + flow

flow
flow
channel required
value
A custom / unique channel to send this message in, sessions whom subscribed to this channel will receive this payload.
event required
value
Unique event to run, a single channel could contain multiple events sessions could subscribe on.
message required
object
Full payload to send
fields v15.0.0
array<value>
Message whitelist: dot-paths of the fields the message may carry. Everything not listed is stripped before publishing; on an array the whitelist is applied per element. Empty or unconnected sends the message as-is. A broadcast reaches every subscriber, so an unprojected document here ships all its fields to all of them.
skip self required
condition
If true we will try not to send this payload to the current active websocket sending this message. In rare cases it could still end up in the connection (for example direct reconnect or multiple websocket connections)
Default false

Out pins 0 + flow

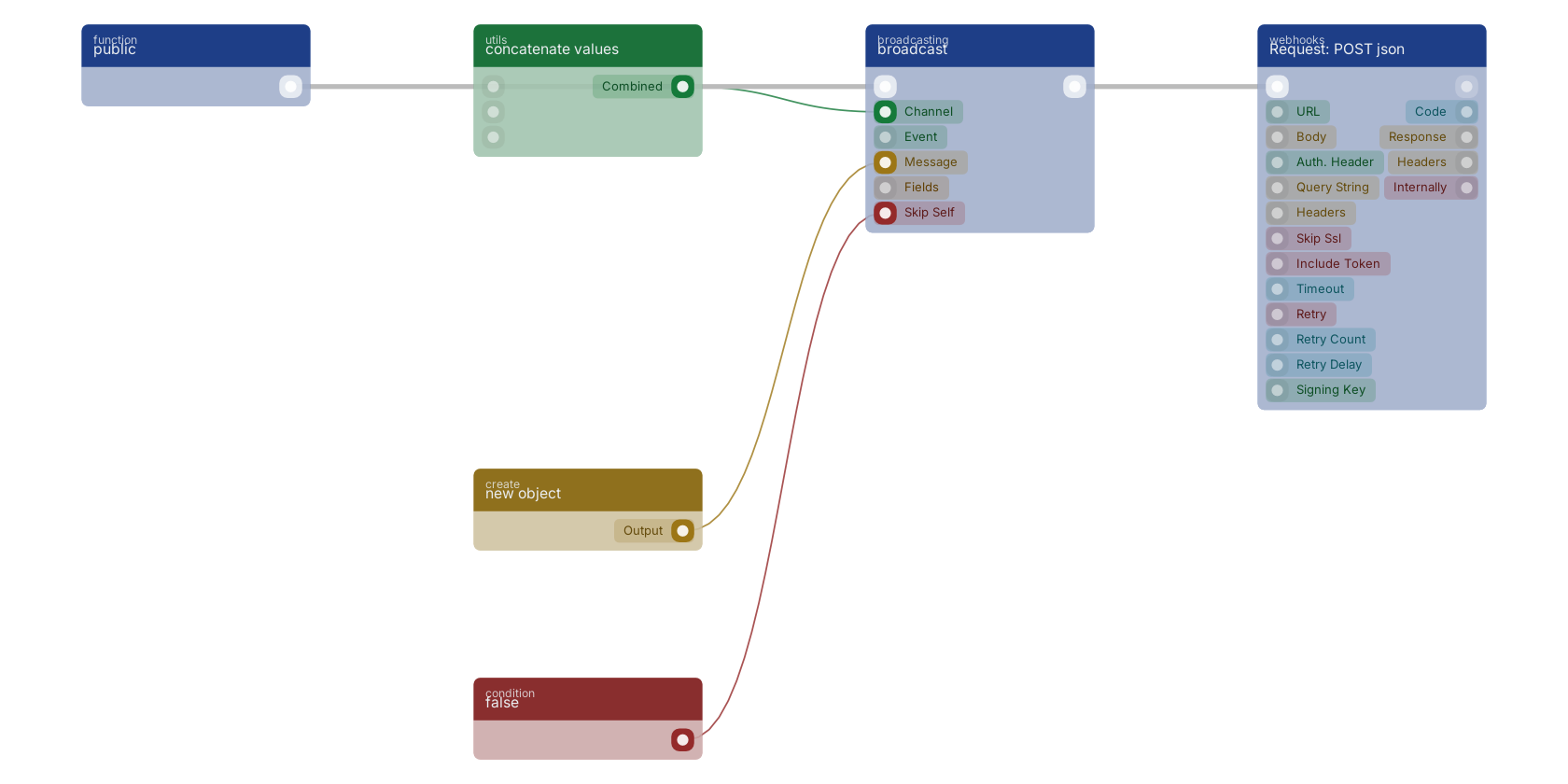

A typical wiring for broadcast: a function trigger starts the flow; false feeds the skip_own_websocket pin; new object feeds the message pin; concatenate values feeds the channel pin; the flow out pin feeds Request: POST json.

Studio canvas example for the broadcast block: typical wiring for broadcast.

In production blueprints, this block is most often wired together with:

false: feeds into this block. Gives the condition false hard-coded.
broadcast: wired in both directions with this block. Send a message across different sessions over a channel and event. These messages are on send and forget base and are not stored.
new object: feeds into this block. Builds a new object filled with the given fields.
concatenate values: feeds into this block.
value: feeds into this block. Simply returns the provided value.
delete: feeds into this block. Removes the specified key and their values.

Introduced in v15.0.0.
