set digital output
This block is part of the dobot group and was last modified in core v14.0.1.
set digital output v14.0.1 Updates the machines digital output so the given status, can be queued by time range in milliseconds
In pins 4 + flow
- flow
flow - connection required
dobotconnection - index required
numberDigital Output Index
- status required
conditionSets the status ON or OFF
- time
numberTime in milliseconds for the command to be delayed • Min: 25 • Max: 600000
Out pins 2 + flow
- flow
flow - connection
dobotconnection - error
value

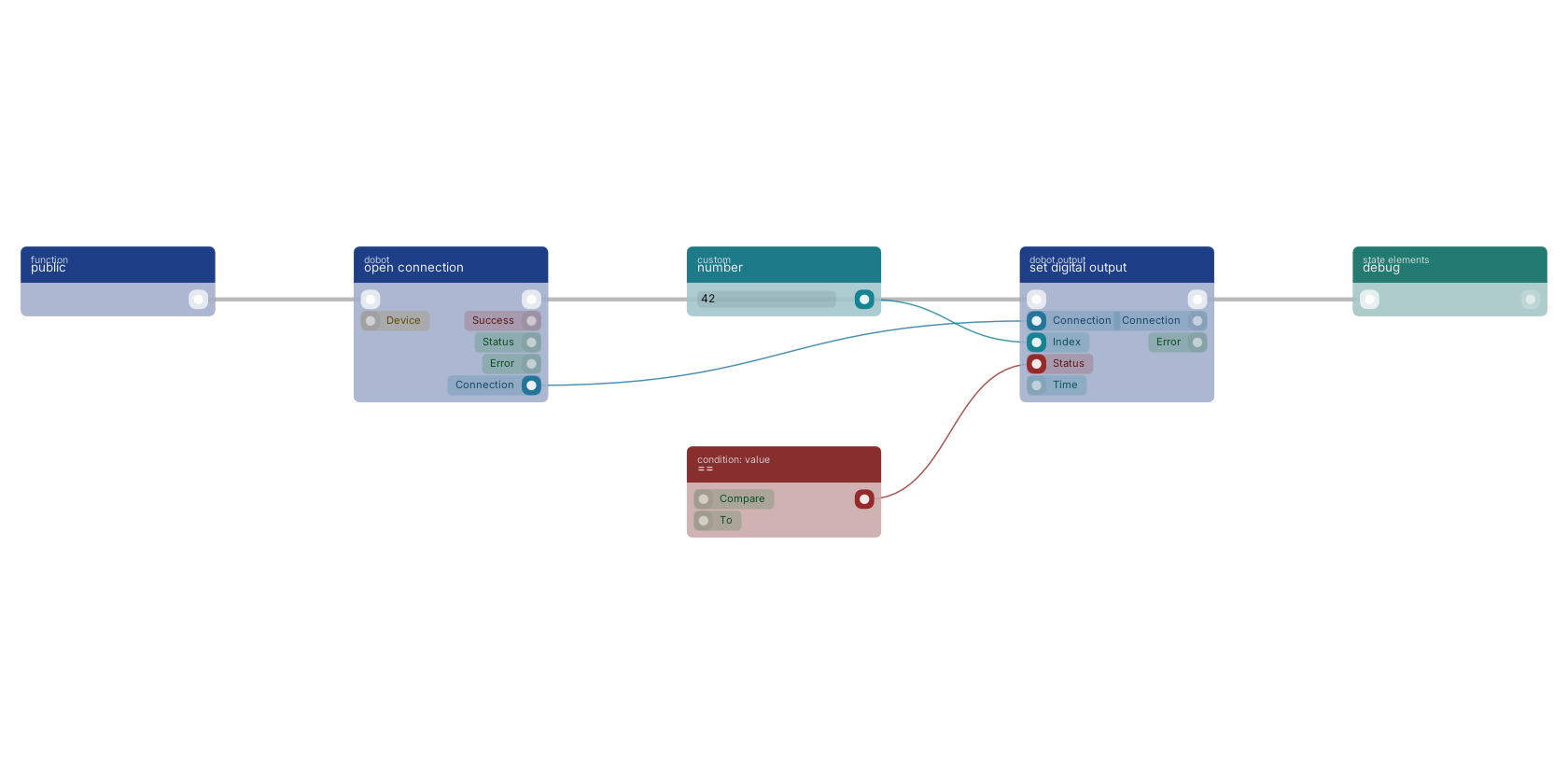

A typical wiring for set digital output: a function trigger starts the flow; open connection feeds the connection pin; number feeds the index pin; == feeds the status pin; the flow out pin feeds debug.
Version history
Introduced in v14.0.1.
