generate from value

This block is part of the files group and was last modified in core v10.4.28.

generate from value condition v10.4.28

Generates a file from the given value.

In pins 5 + flow

flow
flow
filename required
value
The name of the file.
extension required
value
The extension of the file, e.g. pdf.
data required
value
The contents of the file, e.g. JSON, XML or CSV data.
encoding
value
The encoding of the data, can be ascii or utf8
Default utf8
win. newline char
condition
Use a windows EOL character (\r\n) instead of the mac / linux EOL character (\n)

Out pins 2 + flow

flow
flow
success
condition
File succesfully created?
file
file
Output file.

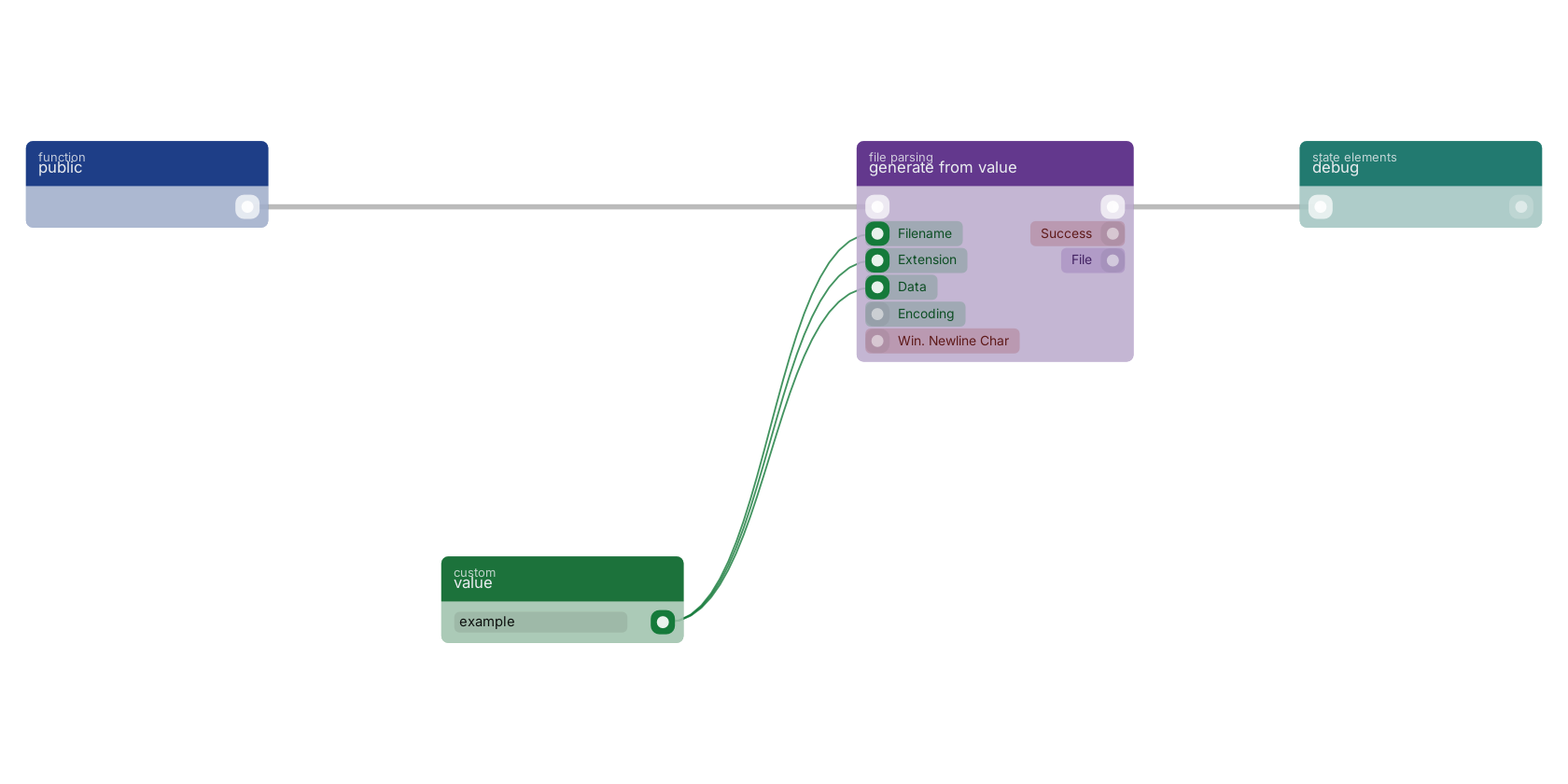

A typical wiring for generate from value: a function trigger starts the flow; value feeds the filename pin; value feeds the extension pin; value feeds the content pin; the flow out pin feeds debug.

Studio canvas example for the generate from value block: typical wiring for generate from value.

Version history

Introduced in v10.4.28.
