parse xml

This block is part of the files group and was last modified in core v12.0.4.

parse xml v12.0.4

Parse an XML file into an object with XML attributed data

In pins 5 + flow
  • flow
  • file file required
  • normalize condition

    Transforms the keys to lowercase

    Default false

  • strip prefix condition

    Strips the xml namespace prefix from the keys

    Default false

  • parse numbers condition

    Parses integer-like strings and float-like strings as floats

    Default false

  • parse booleans condition

    Parses boolean-like strings to booleans

    Default false

Out pins 3 + flow
  • flow
  • object object
  • success condition
  • error value

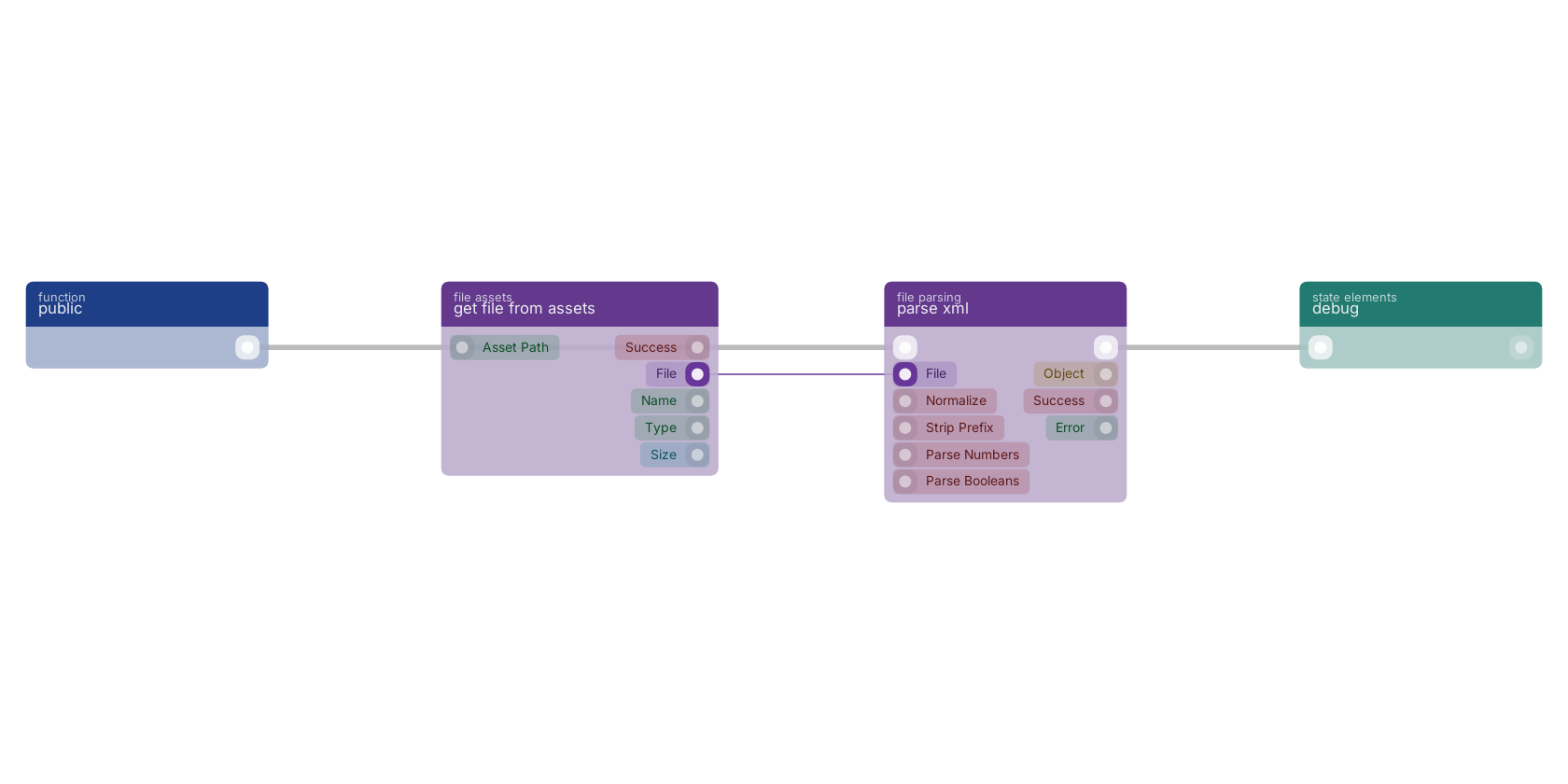

A typical wiring for parse xml: a function trigger starts the flow; get file from assets feeds the file pin; the flow out pin feeds debug.

Studio canvas example for the parse xml block: typical wiring for parse xml.

Version history

Introduced in v12.0.4.
