resize

This block is part of the files group and was last modified in core v13.0.5.

resize file v13.0.5

resize given images with new dimensions

In pins 7 + flow

flow
flow
Files required v10.5.10
file
The files to be resized. The resize will create new files and not overwrite the old ones.
Width
number
The new width in pixels. Leave empty to auto-scale the height
Height
number
The new height in pixels. Leave empty to auto-scale the width
Quality
number
The quality of the file (1-100)
Fit
value
Default: cover. Options: cover, contain, fill, inside, outside
Position
value
Can only be used with fit cover or contain. Default: centre. Options: top right top, right, right bottom, bottom, left bottom, left, left top, centre
options v13.0.5
object
Sharp options to be used during resize.

Out pins 4 + flow

flow
flow
Resized files v10.5.10
file
Success
condition
True if all images succeeded. False if one or more images are failing
Errors
array
Error messages
Failed v10.5.10
file
Files which were not resized.

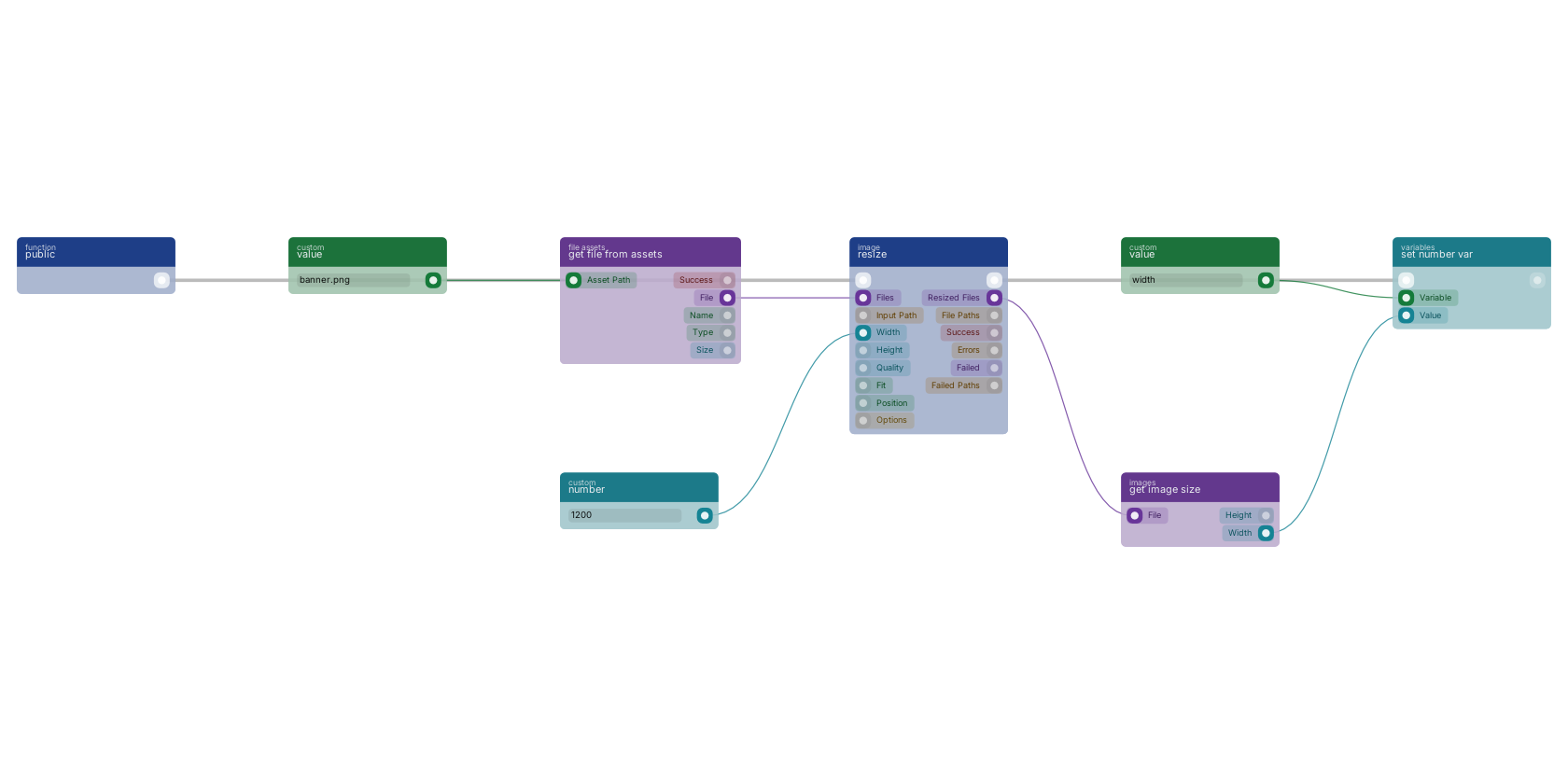

get file from assets loads a stored image, resize scales it to the width pin, and get image size reads the resulting width back, which is stored in a variable with set number var. The flow runs from a function trigger, the file pins carry the image between the blocks.

Studio canvas example for the resize block: resizing an image from assets.

In production blueprints, this block is most often wired together with:

number: feeds into this block. Generates a valid number from the filled custom value in the blueprint.
branch: wired in both directions with this block.
rename: wired in both directions with this block. Renames the given files.
value: feeds into this block. Simply returns the provided value.
move to public: feeds into this block. Moves the given files to a new public destination.
get link: this block feeds into it. Returns the link of a given file which can be used as a img src. Will only work with public files.

These documentation pages use or explain this block:

Introduced in v13.0.5.
