nearby search

This block is part of the google group and was last modified in core v10.4.28.

nearby search v10.4.28

search within Google Places for nearby points of interest.

In pins 9 + flow
  • flow
  • api key value required

    Your application's API key, created within your Google Cloud Platform Console.

  • lat number required

    The latitude around which to retrieve place information.

  • lon number required

    The longitude around which to retrieve place information.

  • radius (m) number required

    Defines the distance (in meters) within which to return place results. The maximum allowed radius is 50 000 meters. • Max: 50000

  • open now condition

    Only return places that are open now.

    Default false

  • type value

    Type of property to search e.g. accounting

    Default all

  • page token value

    The token from google to request the next page.

  • rankby value

    Rank results by prominence (default) or distance.

    Default prominence

  • scroll pages condition

    Auto scroll trough all the available pages.

    Default false

Out pins 6 + flow
  • flow
  • success condition

    returns true if requests succeeded

  • results array

    result of places without locality

  • has_next_page condition

    if there is a next page with results

  • route results array

    full results including locality

  • page_token value

    next page token to proceed the request

  • error value
places

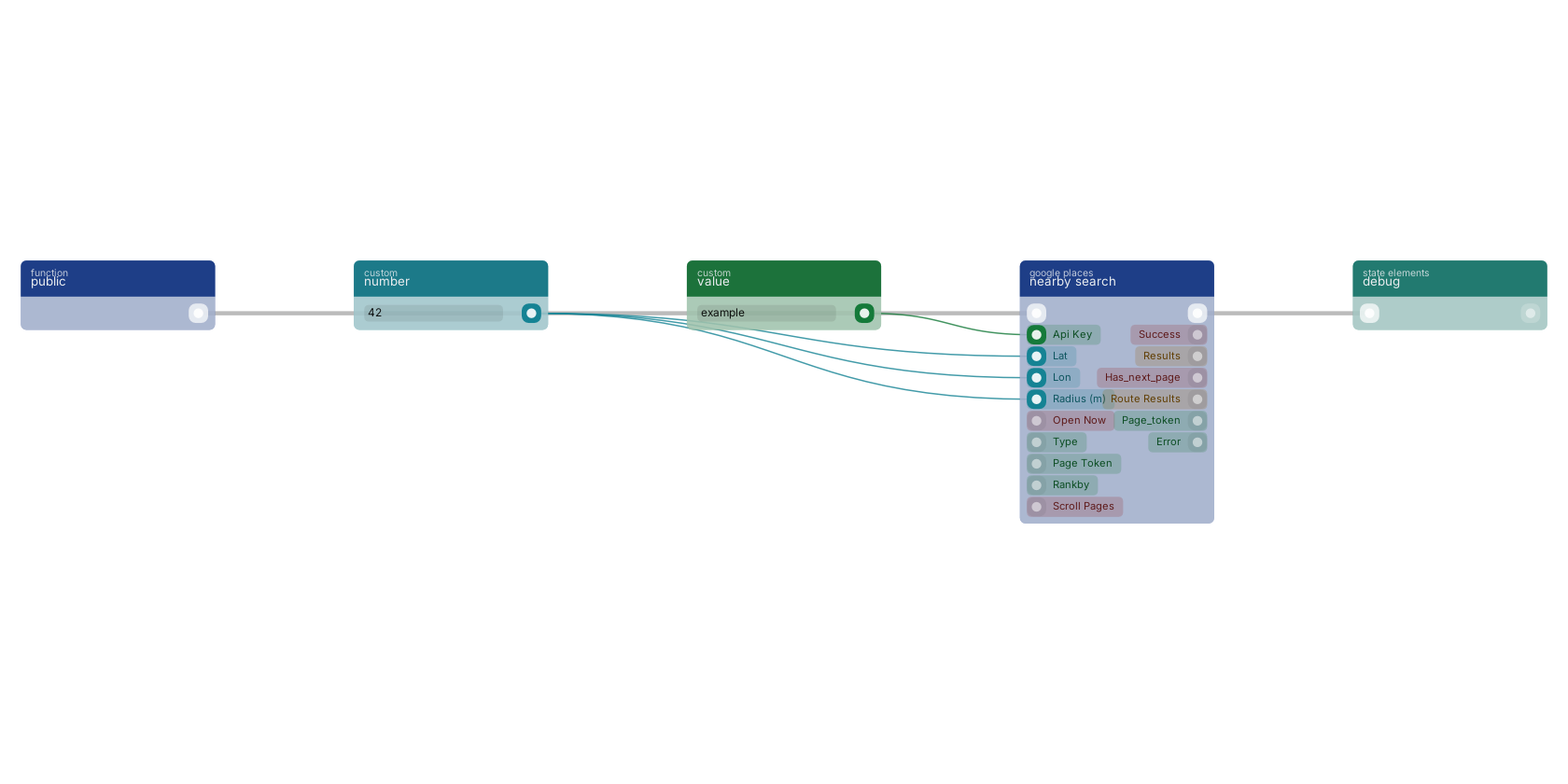

A typical wiring for nearby search: a function trigger starts the flow; value feeds the api_key pin; number feeds the latitude pin; number feeds the longitude pin; number feeds the radius pin; the flow out pin feeds debug.

Studio canvas example for the nearby search block: typical wiring for nearby search.

Version history

Introduced in v10.4.28.
