bounding box

This block is part of the query group and was last modified in core v13.0.8.

Field Selection Required

This block relies on a field that you select to perform its data actions. You must manually select the field you want to use in your flow using the field selector modal. To access the modal, click the white button on the block.

Connection Type

This block connects from a query type block. Make sure to connect this block to the appropriate left-hand side connection.

Parent Requirements

This block requires specific parent elements: query_bool_filter, query_first_defined. Ensure this block is placed within the appropriate parent context.

bounding box query v13.0.8

Matches geo_point values that intersect a bounding box

In pins 6

tl lat required
number
top left lat coords • Hidden when other fields are filled
tl lon required
number
top left long coord • Hidden when other fields are filled
top left location required v13.0.8
geo_point
The top left bounding box location • Hidden when other fields are filled
br lat required
number
bottom right lat coords • Hidden when other fields are filled
br lon required
number
bottom right long coord • Hidden when other fields are filled
bottom right location required v13.0.8
geo_point
The bottom right bounding box location • Hidden when other fields are filled

Out pins 1

query
query

Emits a geo_bounding_box clause on the bound geo_point field, matching documents inside the rectangle between the top-left and bottom-right corners. Corners come from the tl_geo_point/br_geo_point pins when wired, otherwise from the tl_lat/tl_lon/br_lat/br_lon pins; every coordinate is coerced to a number (numeric strings parse, anything non-numeric or unwired becomes 0).

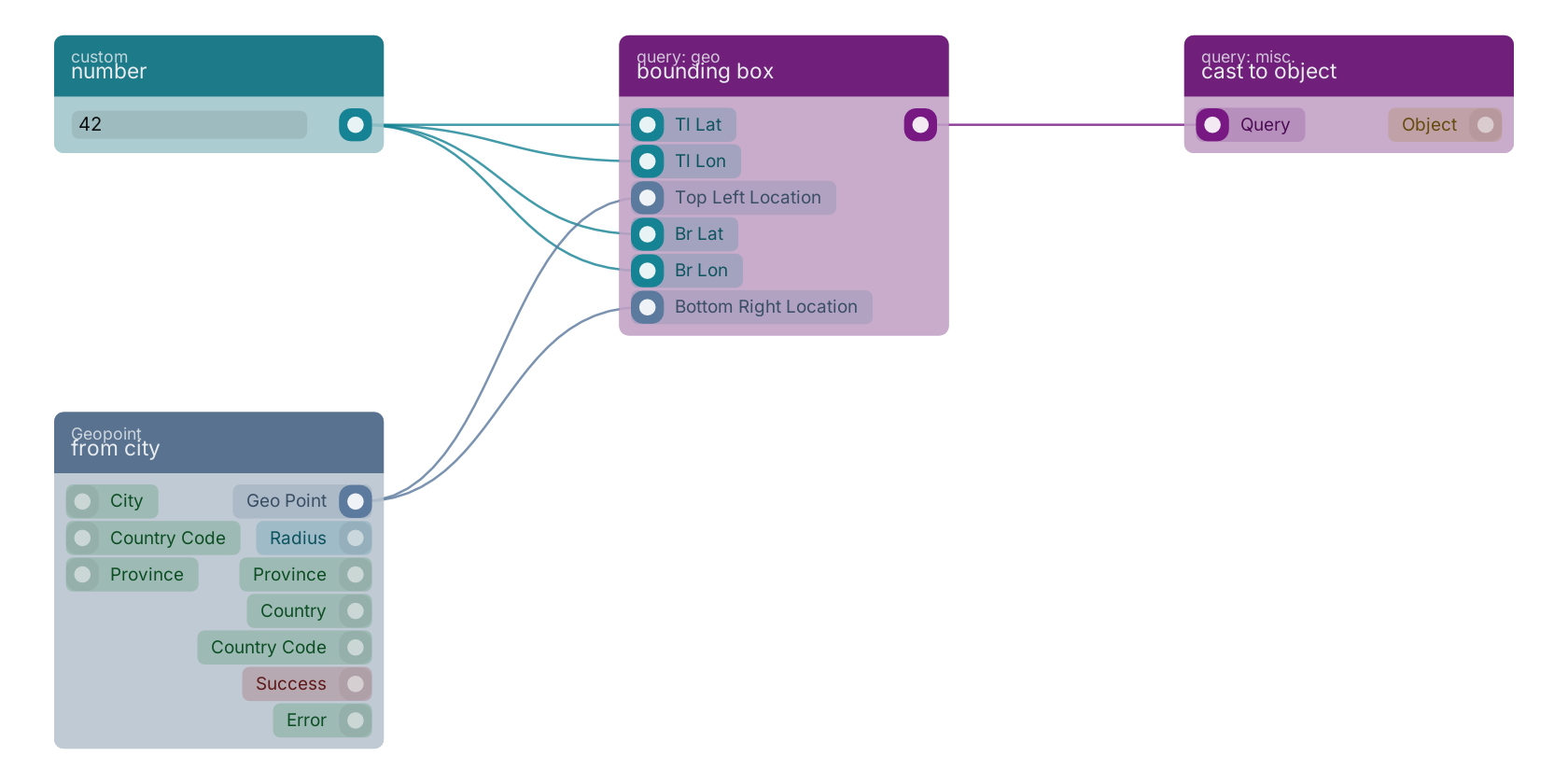

A typical wiring for bounding box: number feeds the tl_lat pin; number feeds the tl_lon pin; from city feeds the tl_geo_point pin; number feeds the br_lat pin; number feeds the br_lon pin; from city feeds the br_geo_point pin; the query out pin feeds cast to object.

Version history

Introduced in v13.0.8.
