distance

This block is part of the query group and was last modified in core v13.0.8.

Field Selection Required

This block relies on a field that you select to perform its data actions. You must manually select the field you want to use in your flow using the field selector modal. To access the modal, click the white button on the block.

Connection Type

This block connects from a query type block. Make sure to connect this block to the appropriate left-hand side connection.

Parent Requirements

This block requires specific parent elements: query_bool_filter, query_first_defined. Ensure this block is placed within the appropriate parent context.

distance query v13.0.8

checks if the given fields is within the given distance.

In pins 4

distance required
value
The distance we should search within, e.g. 50km
lat required
number
Hidden when other fields are filled
lon required
number
Hidden when other fields are filled
location required v13.0.8
geo_point
The location (geo_point) to check • Hidden when other fields are filled

Out pins 1

query
query

Emits a geo_distance clause on the bound geo_point field, matching documents within the given distance of the center point. The center comes from the geo_point pin when wired, otherwise from the lat/lon pins; missing or falsy coordinates default to 0 and a missing or falsy distance defaults to "1km". Field name falls back to the deprecated field pin when no field is bound.

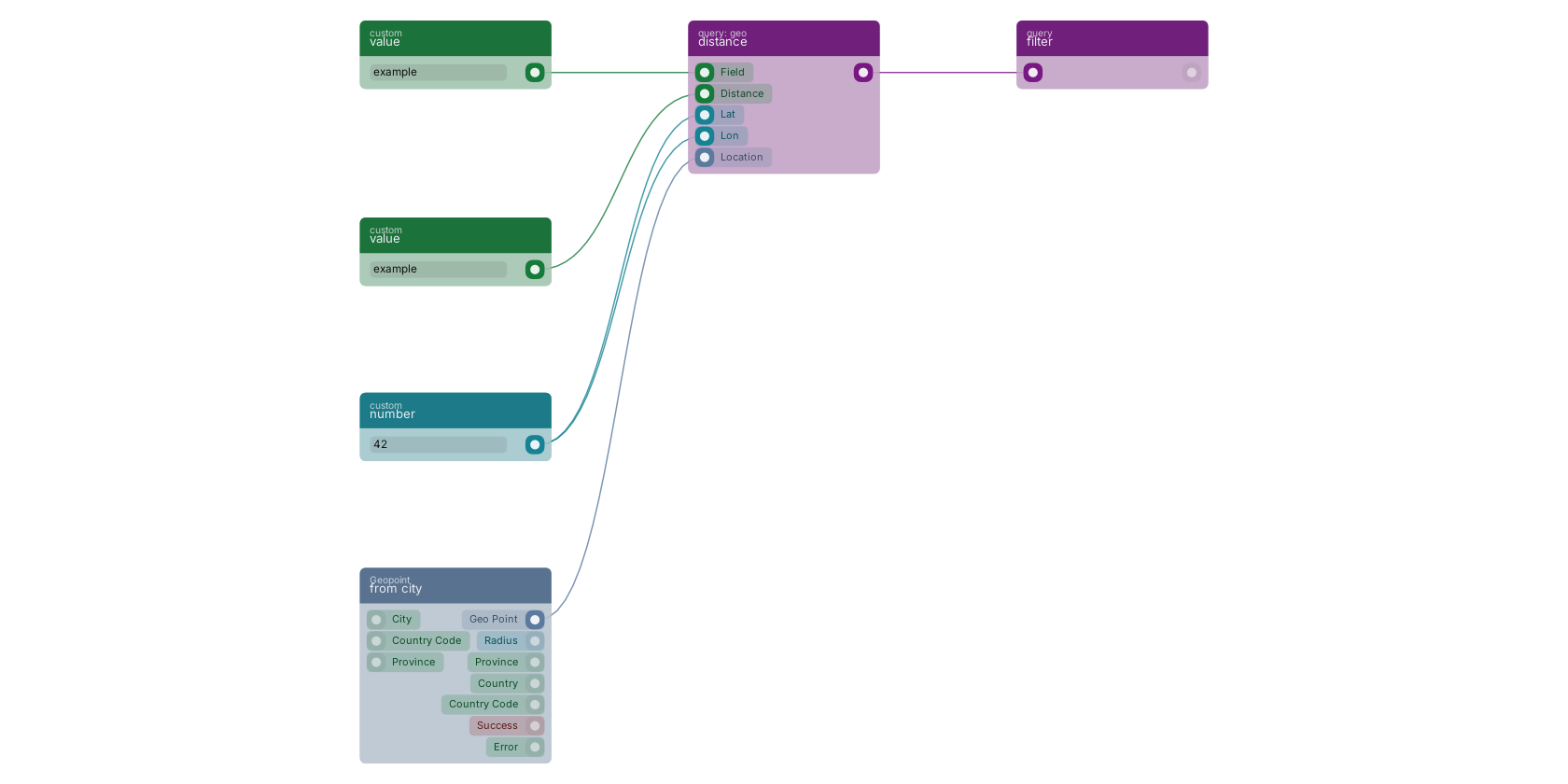

A typical wiring for distance: value feeds the field pin; value feeds the distance pin; number feeds the lat pin; number feeds the lon pin; from city feeds the geo_point pin; the query out pin feeds filter.

Commonly used with

In production blueprints, this block is most often wired together with:

get fields: feeds into this block. Gets the selected fields from the given object.
filter: this block feeds into it. Build a custom query using higher-level bool query.
value: feeds into this block. Simply returns the provided value.

Version history

Introduced in v13.0.8.

v9.4.42 This block or one of its pins was updated in v9.4.42, click here to see the release notes.
