range
This block is part of the redis group and was last modified in core v13.0.7.
Redis Key Selection Required
This block relies on a Redis key to perform its redis releated actions. You must manually select the Redis key you want to use in the flow in the blueprint using the Redis key selector modal. To access the modal, click the white button on the block.
range v13.0.7 get a range of elements from a list. Use start 0 and stop -1 to retrieve all items.
- flow
flow - start required
numberthe index to start at.
- stop required
numberthe index to stop at. can be -1 or -2
- flow
flow - elements
array - success
condition - error
value - key
v13.0.7value
redis lrange |
lrange |
redis lists get |
redis lists retrieve |
redis lists fetch |
redis lists all |
redis lists get all |
get list items |
fetch list items |

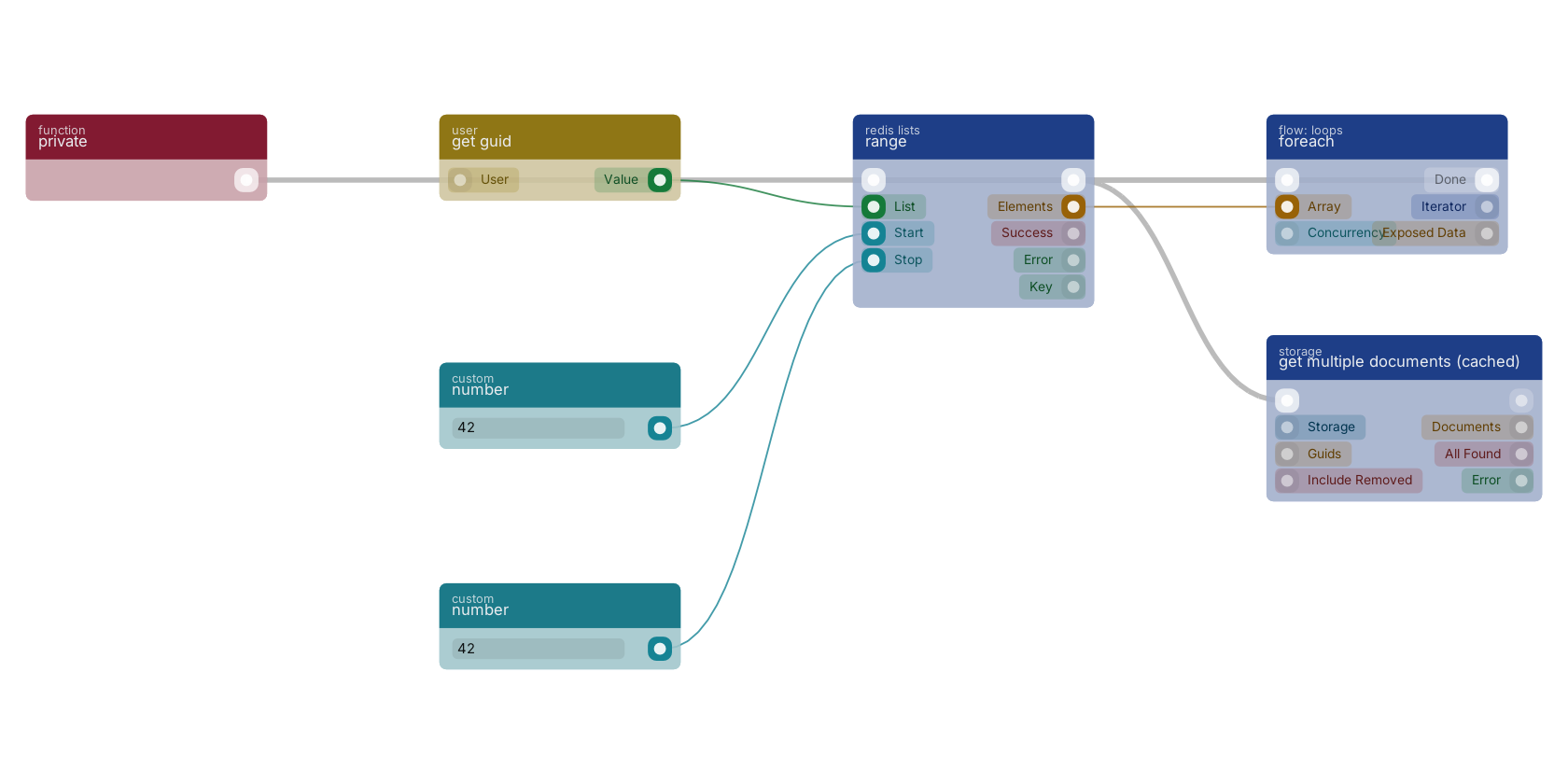

A typical wiring for range: number feeds the start pin; get guid feeds the list pin; number feeds the stop pin; the flow out pin feeds get multiple documents (cached); the elements out pin feeds foreach.
Commonly used with
In production blueprints, this block is most often wired together with:
- number: feeds into this block. Generates a valid number from the filled custom value in the blueprint.
- get multiple documents (cached): this block feeds into it. Get multiple documents from the given storage using the hot document cache. Fetches each document individually. Skips documents that do not exist or are removed.
- foreach: this block feeds into it.
- create: feeds into this block. Creates a new function that can be executed using the given name.
- get guid: feeds into this block. Returns the guid (field: _meta.guid) of the given user.
- trim: feeds into this block. trim a list to the specified range.
Version history
Introduced in v13.0.7.
