zadd

This block is part of the redis group and was last modified in core v13.0.7.

Redis Key Selection Required

This block relies on a Redis key to perform its redis releated actions. You must manually select the Redis key you want to use in the flow in the blueprint using the Redis key selector modal. To access the modal, click the white button on the block.

zadd number v13.0.5 Updated v13.0.7

add one member to a sorted set

In pins 4 + flow

flow
flow
value required
value
value to add
score required
number
score number
insert only
condition
adds NX to the command options, indication it should only insert and not update existing members
increment
condition
adds INCR to the command options, indication it should increment the score to the existing member

Out pins 4 + flow

flow
flow
result
number
Returns the number of items added or updated within the sorted set
success
condition
Returns true when the operation succeeded
error
value
key v13.0.7
value

redis zadd

zadd

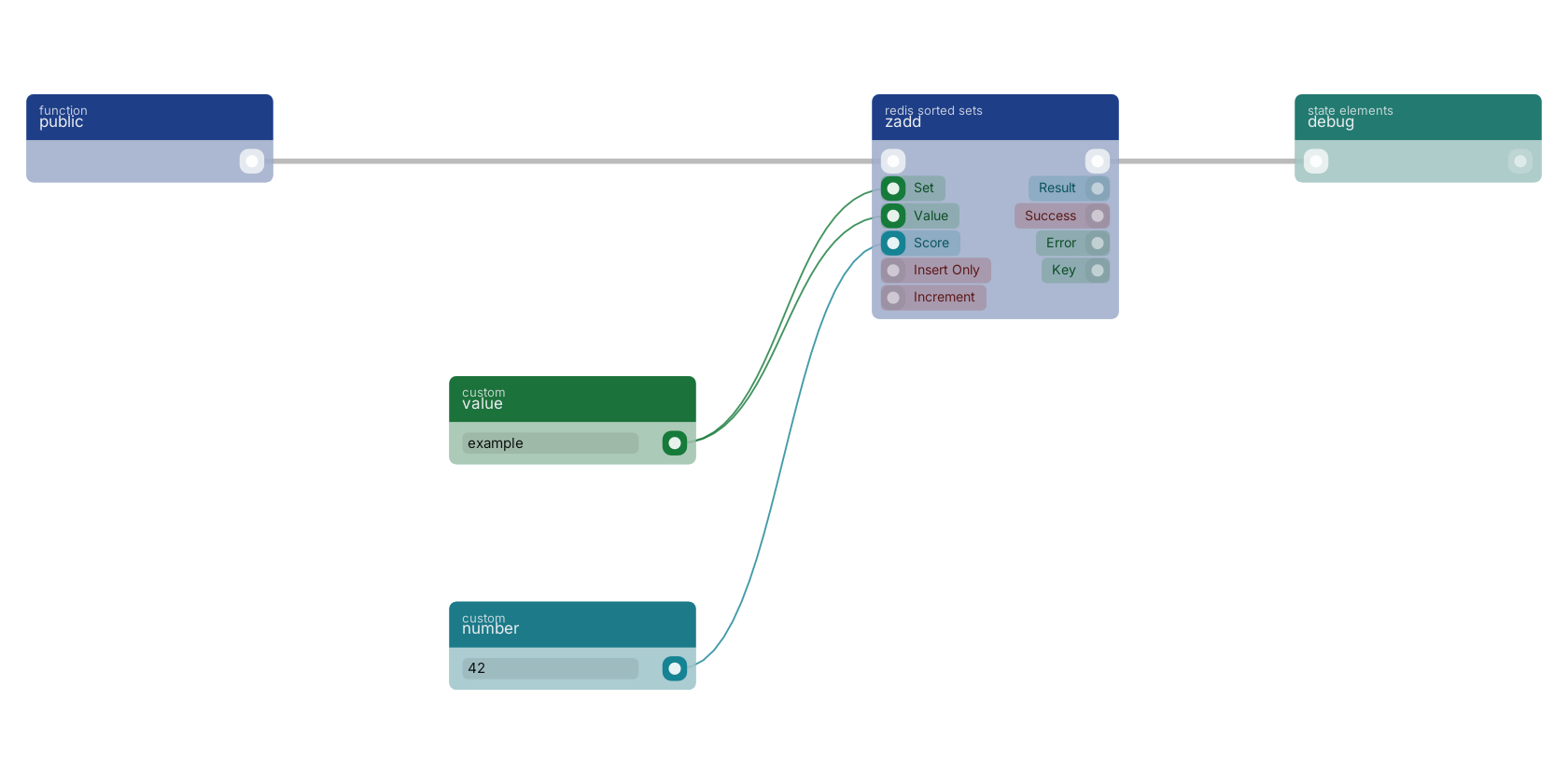

A typical wiring for zadd: a function trigger starts the flow; value feeds the set pin; value feeds the value pin; number feeds the score pin; the flow out pin feeds debug.

Version history

Introduced in v13.0.5.

Last modified in v13.0.7.

Service documentation

External API reference This block wraps a third-party service. Click here for the service's own documentation of the underlying endpoint.
