zrange

This block is part of the redis group and was last modified in core v13.0.7.

Redis Key Selection Required

This block relies on a Redis key to perform its redis releated actions. You must manually select the Redis key you want to use in the flow in the blueprint using the Redis key selector modal. To access the modal, click the white button on the block.

zrange array v13.0.5 Updated v13.0.7

retrieve items from the sorted sets

In pins 3 + flow

flow
start index number required
start position within range (inclusive)
stop index number required
stop position within range (inclusive)
include scores condition
adds WIITHSCORES to the command options, indication to include the scores

Out pins 4 + flow

flow
results array
Returns the sorted sets values
success condition
Returns true when the operation succeeded
error value
key value v13.0.7

redis zrange

zrange

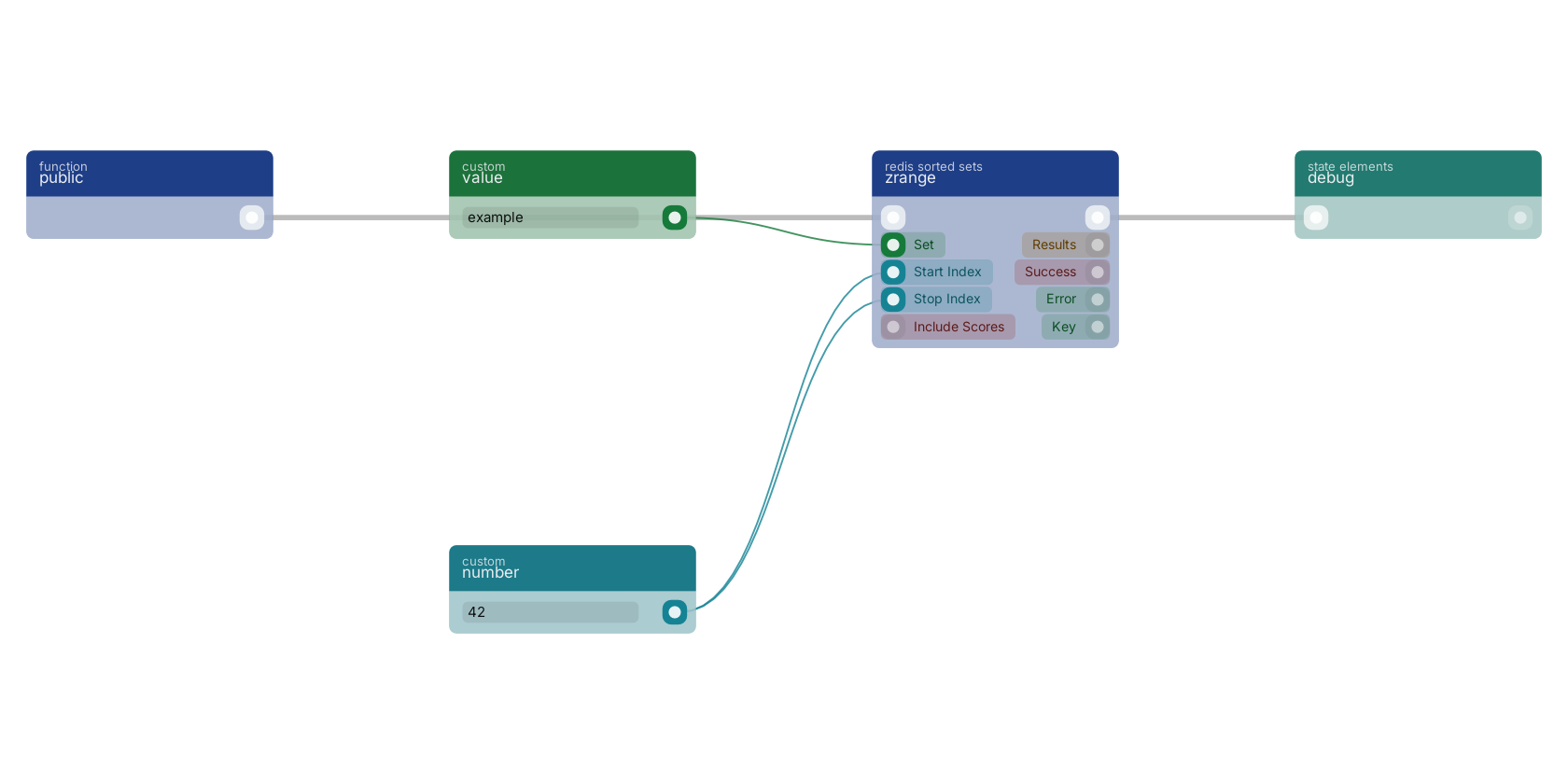

A typical wiring for zrange: a function trigger starts the flow; value feeds the set pin; number feeds the start pin; number feeds the stop pin; the flow out pin feeds debug.

Version history

Introduced in v13.0.5.

Last modified in v13.0.7.

Service documentation

External API reference This block wraps a third-party service. Click here for the service's own documentation of the underlying endpoint.
