revoke token

This block is part of the session management group and was last modified in core v12.0.7.

revoke token condition v12.0.7

Revokes all access tokens based of the authentication document.

In pins 1 + flow

flow
flow
auth. guid required
value
The GUID of authentication storage document, not the access token.

Out pins 2 + flow

flow
flow
revoked
condition
Returns true if we could successfully revoke the given authentication document and the access-tokens generated from it.
error
value

Revokes the authentication session identified by the guid pin (the auth document's GUID, not the access token). revoked=true when the revoke call succeeds; revoked=false with error "No guid given." when guid is empty or unwired, or with the revoke error message on failure.

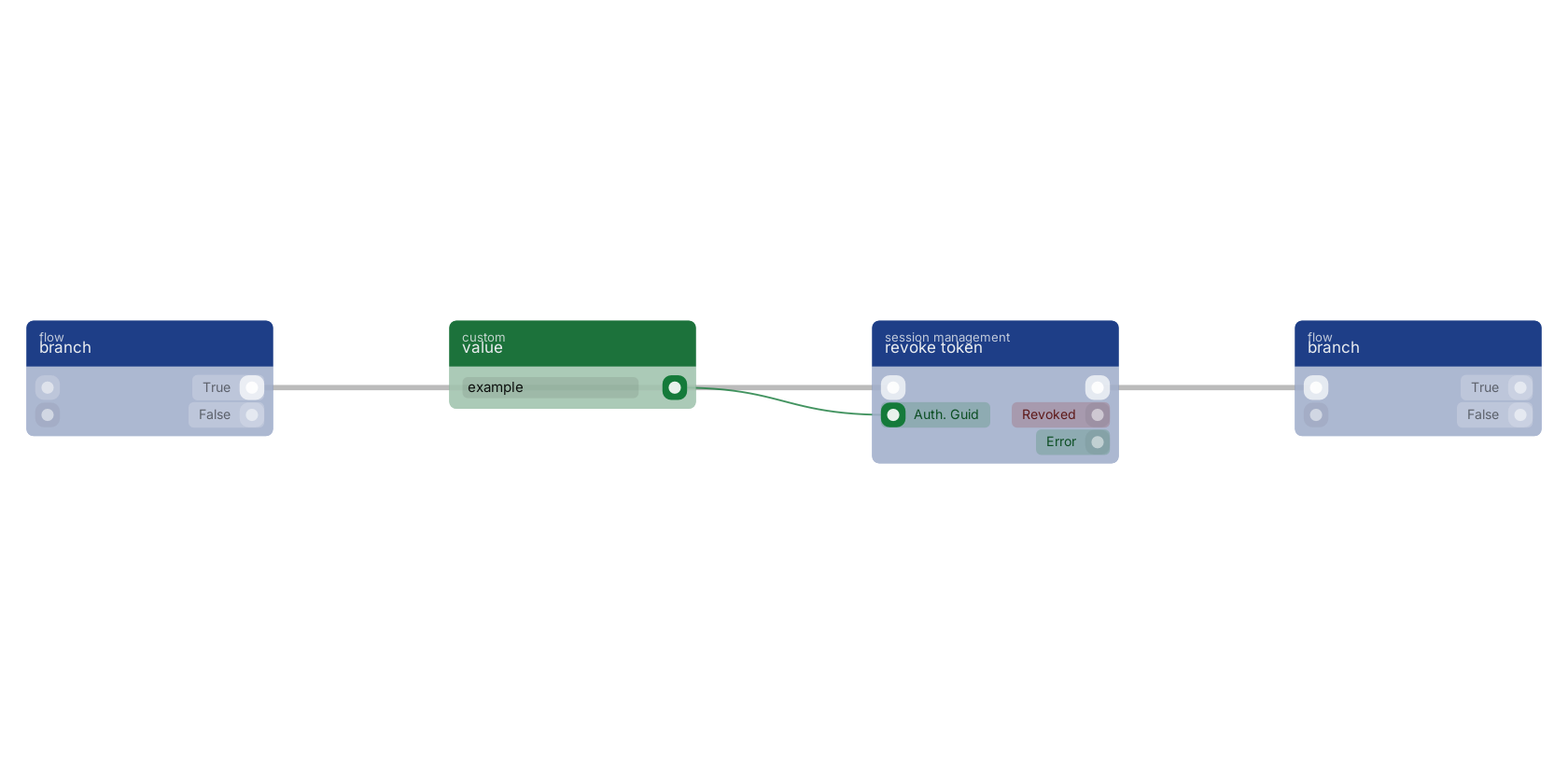

A typical wiring for revoke token: branch feeds the flow pin; value feeds the guid pin; the flow out pin feeds branch.

Commonly used with

In production blueprints, this block is most often wired together with:

branch: wired in both directions with this block.
get fields: feeds into this block. Gets the selected fields from the given object.
new object: this block feeds into it. Builds a new object filled with the given fields.
create: feeds into this block. Creates a new function that can be executed using the given name.

Version history

Introduced in v12.0.7.
