calculate shipping date

This block is part of the shipping group and was last modified in core v13.0.9.

calculate shipping date v13.0.9

This block is used to calculate the shipping date of a shipment.

In pins 5 + flow
  • flow
  • Connection postnlconnection required

    The PostNL connection.

  • Receiver Address object required

    The address of the receiver of this shipment. Object should contain the following fields: city, country_code (ISO2), house_number, street, zip_code, house_number_ext.

  • Delivery Date date required

    The wanted delivery date, used to define the shipping date needed for this package to arrive on this date.

  • Preparing Duration (days) number required

    The number of days it takes to send the shipment to PostNL. 1: same day, 2: next day, etc. (from your location to PostNL).

  • Sender Country Code value

    The ISO2 country code of the sender of this shipment.

    Default NL

Out pins 4 + flow
  • flow
  • Connection postnlconnection

    The PostNL connection

  • Success condition

    If successful, return true.

  • Calculated shipping date date

    The by PostNL calculated shipping date for this shipment.

  • Error value

    Error message if the shipping date could not be calculated.

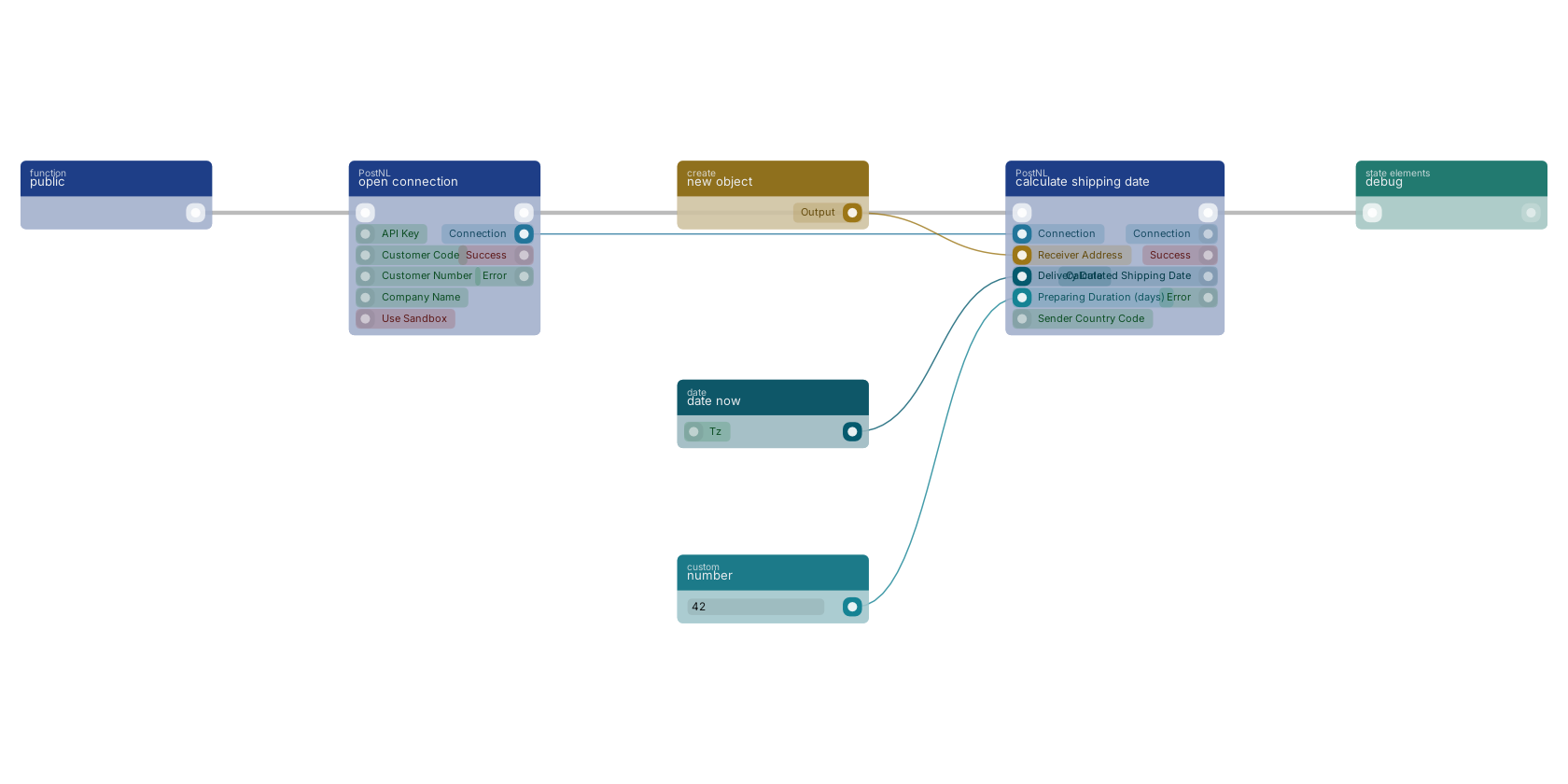

A typical wiring for calculate shipping date: a function trigger starts the flow; open connection feeds the connection pin; new object feeds the receiver_address pin; date now feeds the delivery_date pin; number feeds the preparing_duration_days pin; the flow out pin feeds debug.

Studio canvas example for the calculate shipping date block: typical wiring for calculate shipping date.

Version history

Introduced in v13.0.9.
