postalcode check

This block is part of the shipping group and was last modified in core v13.0.9.

postalcode check postnlconnection v13.0.9

This block is used to request a postalcode check.

In pins 4 + flow

Out pins 8 + flow

flow
Connection postnlconnection
The PostNL connection
Success condition
If successful, return true.
City value
The city for this address.
Street value
The street for this address.
House Numbers array
The house numbers for this address (Can be multiple like: 1A, 1B).
Formatted Address value
The formatted address.
Postalcode value
The postalcode for this address.
Error value
Error message if the barcode shipment status could not be requested.

postcode check

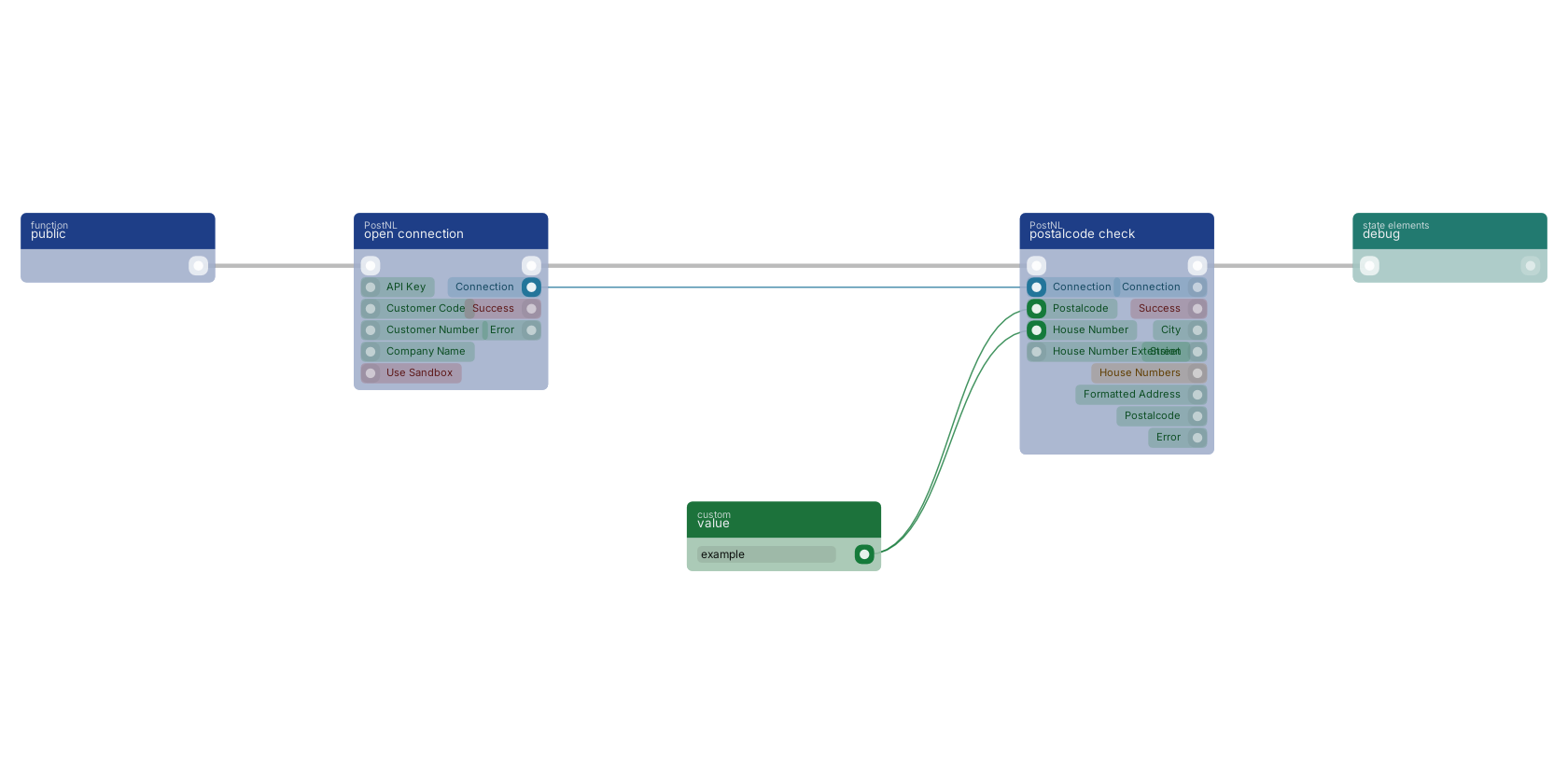

A typical wiring for postalcode check: a function trigger starts the flow; open connection feeds the connection pin; value feeds the zip_code pin; value feeds the house_number pin; the flow out pin feeds debug.

Version history

Introduced in v13.0.9.
