confirm shipment

This block is part of the shipping group and was last modified in core v13.0.9.

confirm shipment postnlconnection v13.0.9

This block is used to manual confirm a shipment.

In pins 8 + flow

flow
flow
Connection required
postnlconnection
The PostNL connection.
Barcode required
value
The barcode of the shipment to confirm.
Sender Address required
object
The address of the sender of this shipment. Object should contain the following fields: city, country_code (ISO2), house_number, street, zip_code, house_number_ext.
Receiver Address required
object
The address of the receiver of this shipment. Object should contain the following fields: city, country_code (ISO2), house_number, street, zip_code, house_number_ext.
Shipment dimensions required
object
The dimensions for this shipment. Object should contain weight field. Fields that you can add are: height, width, length, volume. Check the documentation for the units to use for this fields.
Receiver information
object
The receiver information for this shipment. Object can contain the following fields: firstname, lastname, email, phone.
Sender Contact Person
object
The contact person for PostNL for this shipment (from your company). Object should contain the following fields: name, email.
Product Code Delivery
value
The product code delivery for this shipment. Default value is 3085. Check the documentation for the available codes.
Default 3085

Out pins 5 + flow

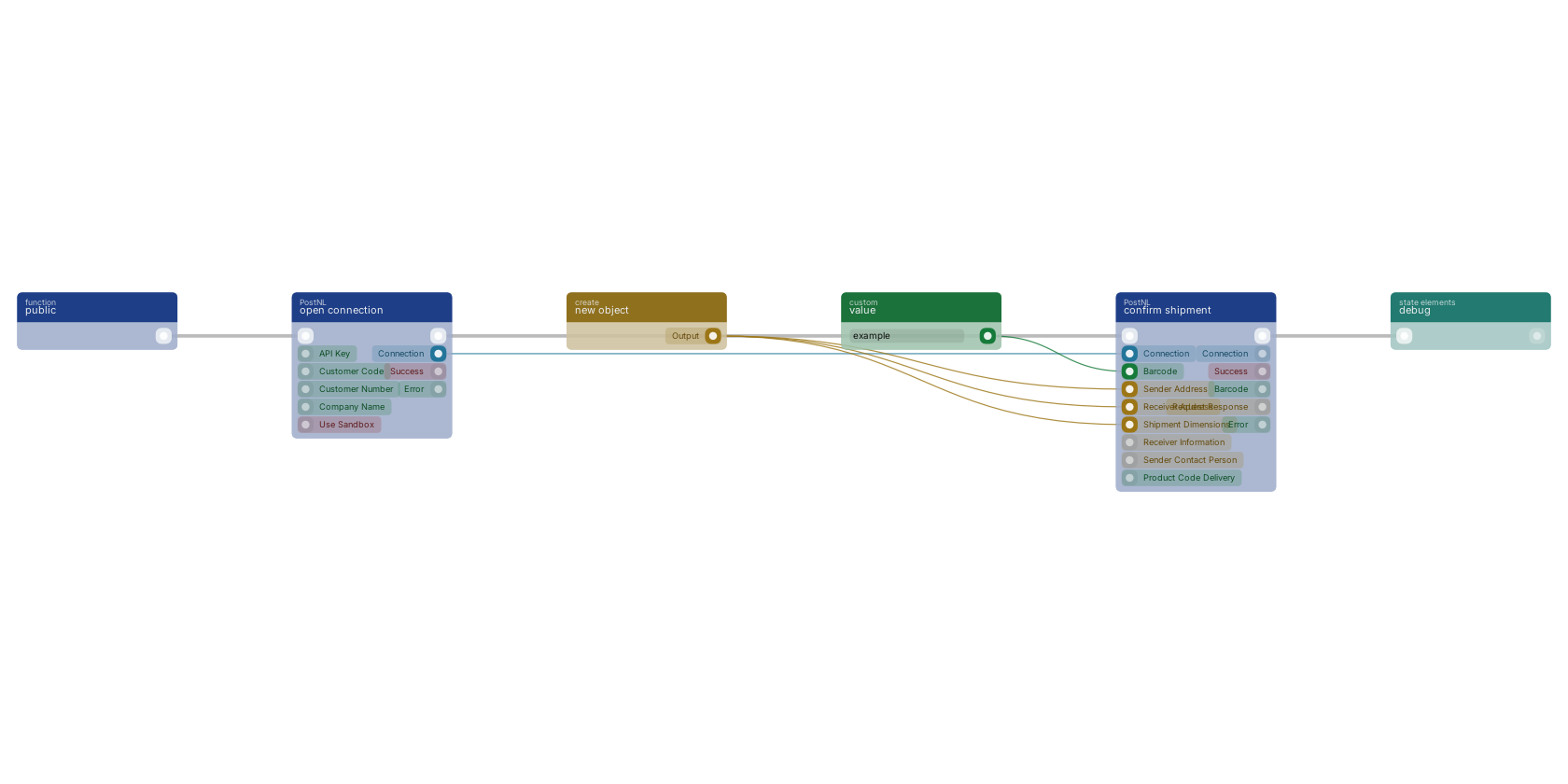

A typical wiring for confirm shipment: a function trigger starts the flow; open connection feeds the connection pin; value feeds the barcode pin; new object feeds the sender_address pin; new object feeds the receiver_address pin; new object feeds the dimensions pin; the flow out pin feeds debug.

Studio canvas example for the confirm shipment block: typical wiring for confirm shipment.

Introduced in v13.0.9.
